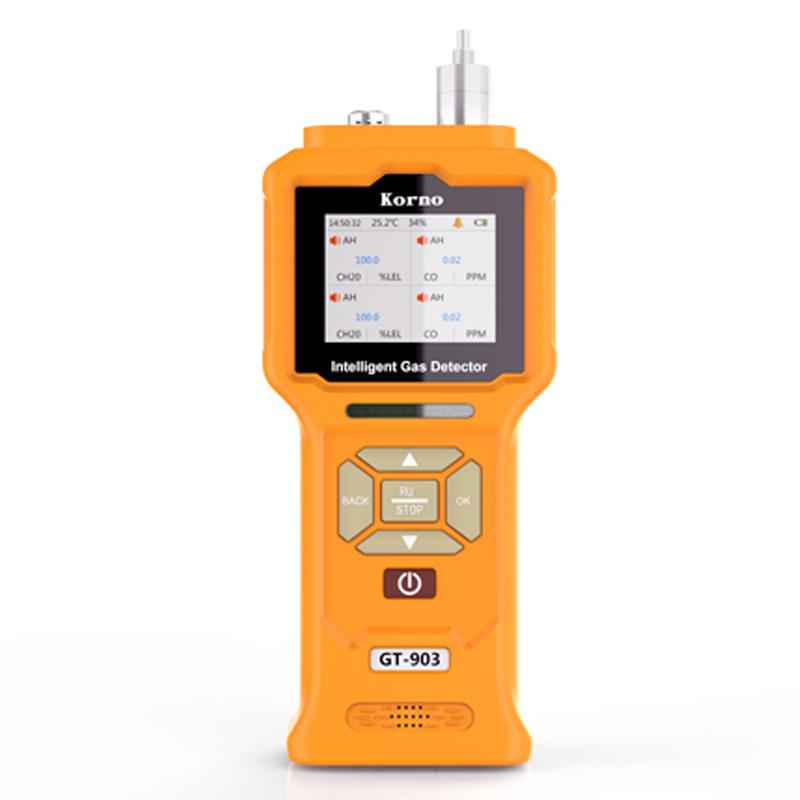

KORNO GT903-EX-Y Pump Suction Combustible Gas Detector Range 0-100% LEL
Catalytic combustion principle, pump suction sampling, detection of combustible gases, range 0-100% LEL, through explosion-proof certification, with Filter, sound and light alarm, detection accuracy ≤ +/- 3%.
KORNO
GT903-EX-Y
GT-903-NO-Y
GT-903-CH2O-Y
GT-903-H2-Y
GT-903-CL2-Y
GT-903-TVOC-Y
GT-903-NH3-Y
GT-903-N2-Y
GT-903-O2-Y
-
GUOYUGRA GY/VGD-200-C2H4-G (0-3% Vol) Ethylene Detector (Infrared)
$ 941.00 -
GUOYUGRA GY/VGD-200-R507-G Refrigerant, refrigerant Detector 0-1000ppm
$ 1190.00 -
HUIRUIPU HRP-K6000-4 four-way controller, LCD/three-wire system
$ 176.00 -
BOSEAN BH-90M-CLO2 chlorine dioxide Gas Detector
$ 239.00 -
HUIRUIPU HRP-B1000-O2 Oxygen Gas Detector 0-30% VOL/0.1% VOL
$ 153.00
Introduction
GT-903 pump-suction combustible Gas Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported catalytic combustion/infrared absorption gas sensor and microcontroller technology, with fast response speed, high measurement accuracy and stability Good performance and repeatability, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by users, easy to operate, dust-proof design of the instrument, equipped with a dust filter, and can be used in various harsh occasions.
Features
KORNO GT903-EX-Y Gas DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detection gas | EX |
| range | 0 ~ 100% LEL |
| resolution | 0.1% LEL |
| Response time | T90≤20s |
| linearity error | ≤±1% |
| Detection Accuracy | ≤±3% |
| Zero drift | ≤±1%(F.S/年) |
| recovery time | ≤20s |
| Sexual repeability | ≤±1% |
| Expansion gas | Supports 1-4 Sensors |
| Explosion-proof sign | CNEx16.0538 |
| Protection class | IP65 |
| Production license | Guangdong 00001052 (CMC metrology authentication) |
| temperature and humidity | Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH |

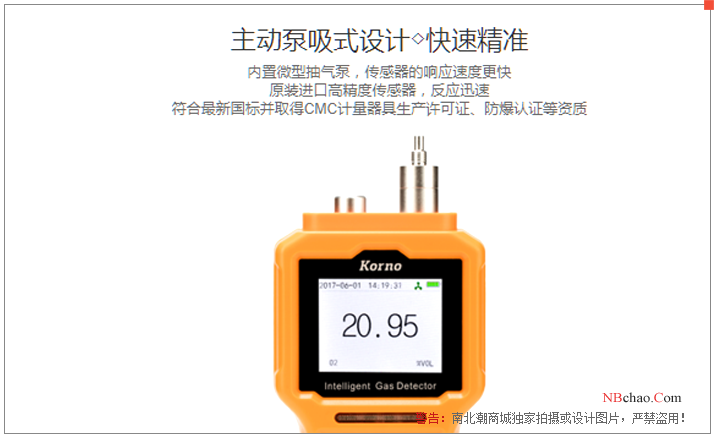

| Sampling method | Pump suction |
| data storage | Real-time storage and Timer storage can be set; 120,000 groups of data can be stored |
| Operating Temperature | -30~60℃ |
| Environment humidity | 0~95% RH non-condensing |
| Operating Pressure | -30 ~ 100Kpa |

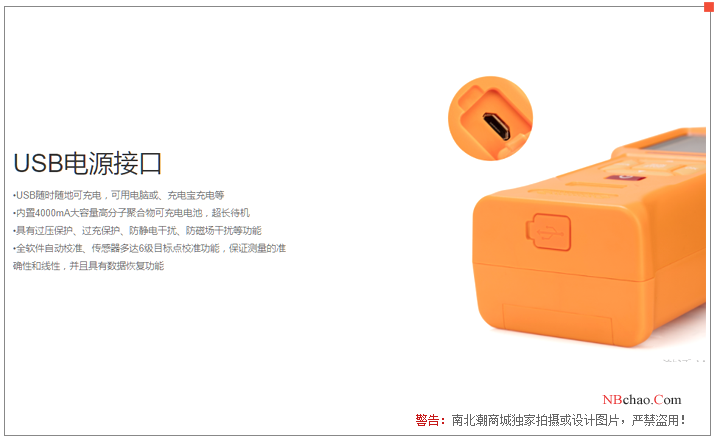

| Power | 4000mA Rechargeable Polymer Battery |
| Dimensions | 180*85*55mm |
| Net Weight | 0.5Kg |
| Execution standards | GB3836.1-2010、GB3836.4-2010 |
KORNO GT903-EX-Y Gas Detector Packing list
host X1, USB charger X1, calibration cover X1, instrument case X1, manual X1, certificate X1, warranty card X1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
