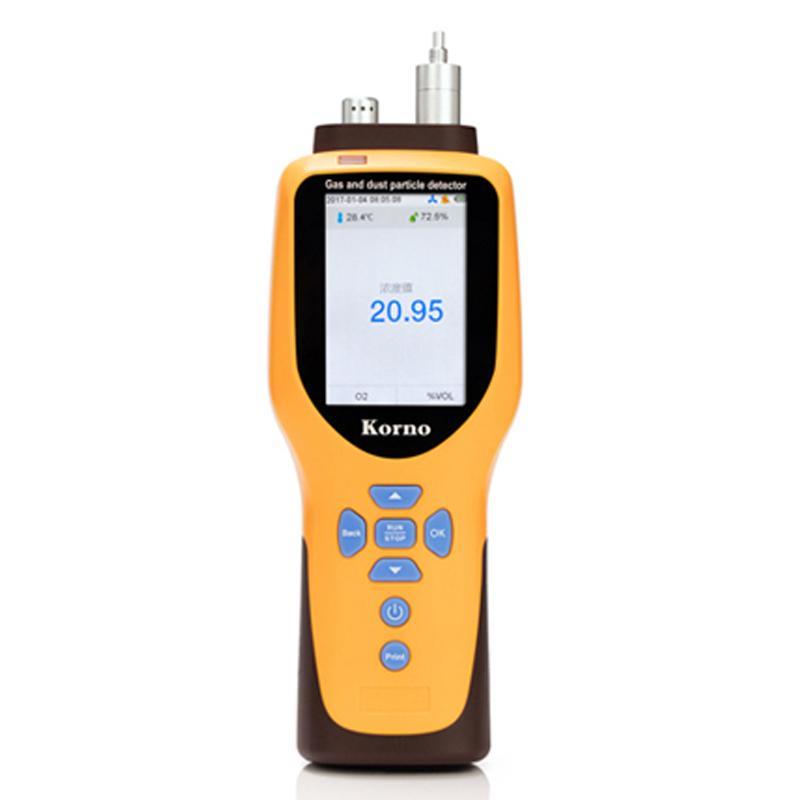

KORNO GT1000-EX-Y Combustible Gas Detector concentration 0-100% LEL
Used to detect combustible gas EX concentration value, the range is 0-100% LEL, using imported catalytic combustion /NDIR infrared gas Sensors.
KORNO
GT1000-EX-Y
-
Empaer AASD-H2S Lightning series handheld hydrogen sulfide Detector
$ 267.00 -
HONEYEAGLE HNAG1000-SO2 Online sulfur dioxide Detector 10000PPM
$ 682.00 -
Empaer AATL-O2 (sound and light alarm) Pathfinder series fixed oxygen Detector
$ 338.00 -
GUOYUGRA GY/VGD-200-C3H8O-G (0-2% Vol) Isopropanol Detector (Infrared)
$ 941.00 -
Empaer AASD-O3 Lightning Series Handheld Ozone Detector
$ 590.00
Introduction
GT-1000 pump-suction combustible Gas Detector is suitable for various mixed gas concentration detection in various industrial environments and special environments. It adopts imported catalytic combustion/NDIR infrared gas sensor and microcontroller technology, with fast response speed and high measurement accuracy. High, good stability and repeatability, the performance of the whole machine is at the domestic (CN) professional level.
Features
KORNO GT1000-EX-Y Gas DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detection gas | EX |
| range | 0 ~ 100% LEL |
| resolution | 0.1% LEL |
| Response time | T90≤20s |
| linearity error | ≤±1% |
| Detection Accuracy | ≤±3% |
| Zero drift | ≤±1%(F.S/年) |
| recovery time | ≤20s |
| Sexual repeability | ≤±1% |

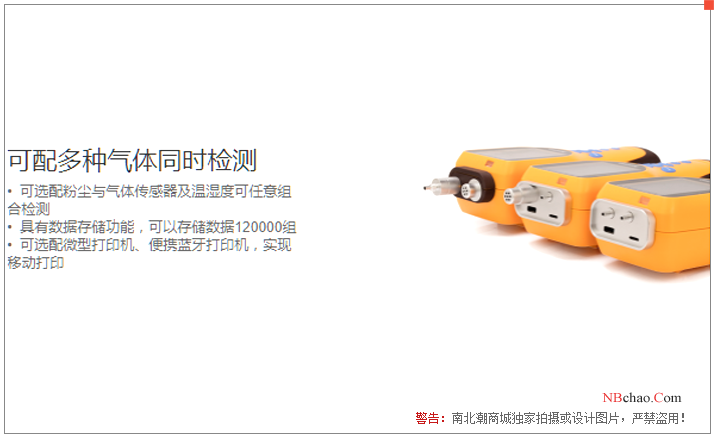

| Expansion gas | Supports 1-5 Sensors |
| Explosion-proof sign | CNEx16.0537 |

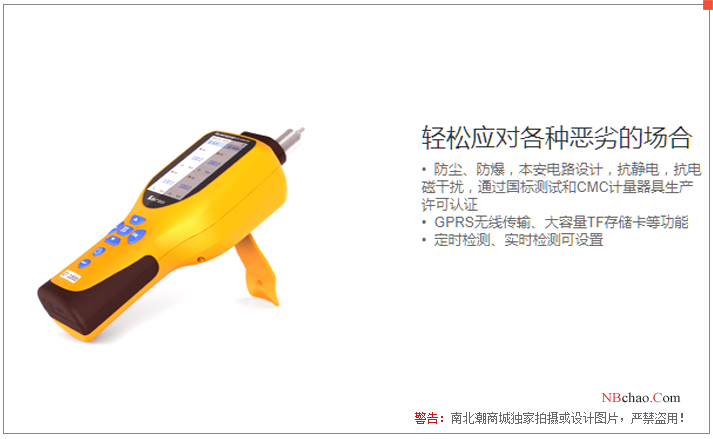

| Protection class | IP65 |
| Production license | Guangdong 00001052 (CMC metrology authentication) |
| temperature and humidity | Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH |
| Sampling method | Pump suction |
| data storage | Real-time storage and Timer storage can be set; 120,000 groups of data can be stored |
| Operating Temperature | -30~60℃ |
| Environment humidity | 0~95% RH non-condensing |
| Operating Pressure | -30 ~ 100Kpa |
| Power | 4000mA Rechargeable Polymer Battery |
| Dimensions | 220*85*55mm |
| Net Weight | 0.5Kg |
| Execution standards | GB3836.1-2010、GB3836.4-2010 |
KORNO GT1000-EX-Y Gas Detector Packing list
host X1, USB charger X1, calibration cover X1, instrument case X1, manual X1, certificate X1, warranty card X1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
