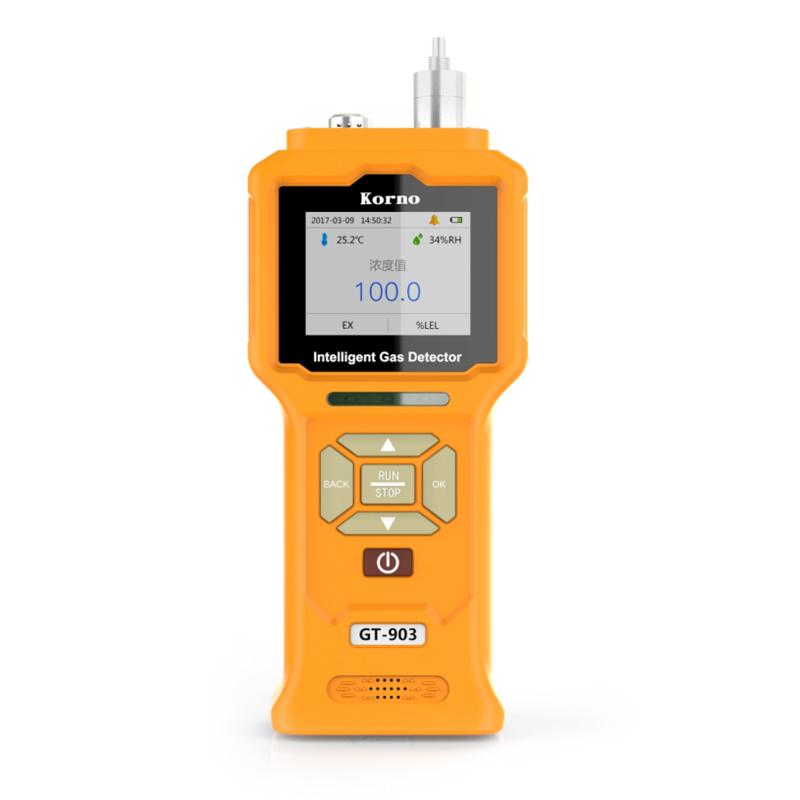

KORNO GT-903-CO-Y carbon monoxide Detector, range 0-100PPM
Pump suction sampling, detection of carbon monoxide, range 0-100PPM, through explosion-proof certification, equipped with Filter, sound and light alarm, 2.4 inch industrial grade color screen, detection accuracy ≤ +/- 3%.
KORNO
GT-903-CO-Y
GT-903-NO-Y
GT-903-CH2O-Y
GT-903-H2-Y
GT-903-NH3-Y
GT-903-O2-Y
Introduction
GT-903 pump-suction carbon monoxide Detector is suitable for various mixed gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical sensor/infrared absorption gas sensor and microcontroller technology, with fast response speed and high measurement accuracy. High, good stability and repeatability, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, easy to operate, dust-proof design of the instrument, equipped with a dust filter, and can be used in various harsh occasions.
Features
KORNO GT-903-CO-Y Carbon monoxide DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detection gas | Carbon Monoxide (CO), Imported Electrochemistry /NDIR Infrared Carbon Monoxide Gas Sensors |
| Measuring range | 0~100ppm |
| resolution | 0.01ppm |
| Response time | ≤ 20 seconds (T90) |
| linearity error | ≤±1% |
| Detection Accuracy | ≤ ± 3% (depending on the specific Sensors) |
| Zero drift | ≤±1%(F.S/年) |
| recovery time | ≤ 20 seconds |
| Sexual repeability | ≤±1% |
| Gas expansion | Supports 1-4 Sensors |
| Explosion-proof certification | CNEx16.0538 |
| Protection class | IP65 |
| Production license | Guangdong 00001052 (CMC metrology authentication) |
| Temperature, humidity | Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0-100% RH |
| Detection method | Pump suction, built-in micro air pump |
| Detection mode | Real-time detection, Timer detection can be set |
| storage mode | Real-time storage and Timer storage can be set; 120,000 groups of data can be stored, and historical data can be viewed on the screen |
| Operating Temperature | -30 ～ 60℃ |
| Operating Humidity | ≤ 95% RH, no condensation |
| Operating Pressure | -30Kpa ⃣ 100Kpa |
| Power | 4000mA Rechargeable Polymer Battery |
| size | 180*85*55 mm（L×W×H） |
| Weight | 0.5 Kg (net Weight) |
| Execution standards | GB3836.1-2010 "Explosive environments - Part 1: Equipment - General requirements", GB3836.4-2010 "Explosive environments - Part 4: Equipment protected by intrinsically safe" i " |
| Optional range | 0-100、500、1000、2000、5000、10000、40000ppm |
KORNO GT-903-CO-Y Carbon monoxide Detector Packing list
host X1, USB charger X1, calibration cover X1, instrument case X1, manual X1, certificate X1, warranty card X1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
