        KORNO GT-903-O3-Y Ozone Detector

        KORNO GT-903-O3-Y ozone Detector, range 0-1PPM

        Electrochemistry principle, pump suction sampling, detection of ozone gas, range 0~1ppm, through explosion-proof certification, with Filter, sound and light alarm, detection accuracy ≤ +/- 3%.

        Brand
        SKU: NB016084
        China KORNO
        Stock
        Loading…
        Price
        $ 581.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          KORNOLOGO

          KORNO shopSE

          Information
          Datasheet RFQ Contract Video Catalog Manual
          What else did others buy
          Genuinegoods

          • KORNO GT-903-O3-Y Ozone DetectorOverview

          • Specifications
          • Comments
          • FAQs
          GT-903-O3-Y
          Ozone Detector
          • KORNO GT-903-O3-Y ozone Detector, range 0-1PPM
          • KORNO GT-903-O3-Y ozone Detector, range 0-1PPM Figure 1
          • KORNO GT-903-O3-Y ozone Detector, range 0-1PPM Figure 2
          Electrochemistry principle, pump suction sampling, detection of ozone gas, range 0~1ppm, through explosion-proof certification, with Filter, sound and light alarm, detection accuracy ≤ +/- 3%.

          Introduction

          GT-903 pump-suction ozone Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical/ultraviolet absorption gas sensor and microcontroller technology, with fast response speed, high measurement accuracy and stability And the repeatability is good, the performance of the whole machine is at the domestic (CN) professional level, the parameters can be customized by the user, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.

          Features

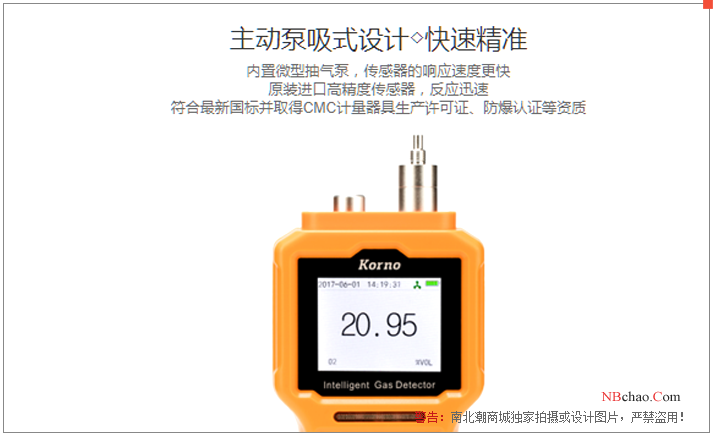

          KORNO GT-903-O3-Y Ozone Detector 1

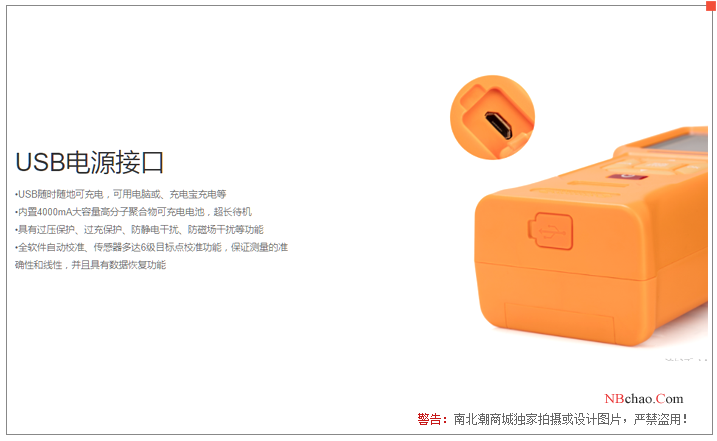

          KORNO GT-903-O3-Y Ozone Detector 2

          KORNO GT-903-O3-Y Ozone Detector 3

          VS

          KORNO GT-903-O3-Y Ozone DetectorSpecifications

          LIST VALUE
          Detection gas Ozone O3
          range 0~1ppm
          resolution 0.001ppm
          Response time T90≤20s
          linearity error ≤±1%
          Detection Accuracy ≤±3%
          Zero drift ≤±1%(F.S/年)
          recovery time ≤20s
          Sexual repeability ≤±1%
          Expansion gas Supports 1-4 Sensors
          Explosion-proof sign CNEx16.0538
          Protection class IP65
          Production license Guangdong 00001052 (CMC metrology authentication)
          temperature and humidity Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
          Sampling method Pump suction
          data storage Real-time storage and Timer storage can be set; 120,000 groups of data can be stored
          Operating Temperature -30~60℃
          Environment humidity 0~95% RH non-condensing
          Operating Pressure -30 ~ 100Kpa
          Power 4000mA Rechargeable Polymer Battery
          Dimensions 180*85*55mm
          Net Weight 0.5Kg
          Execution standards GB3836.1-2010、GB3836.4-2010
          Optional range 0~1、2、5、10、20、50、100、200、500、1000、5000ppm

          KORNO GT-903-O3-Y Ozone Detector Packing list

          host X1, USB charger X1, calibration cover X1, instrument case X1, manual X1, certificate X1, warranty card X1.

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          GT-903-O3-Y Ozone Detector The resolution of this detector is optional, right?
          [A]
          The resolution depends on the specific range, and the resolution in the range of 0-5PPM can be made into 0.001PPM
          [Q]
          Does this one have metrology authentication?
          [A]
          The equipment can be measured, there is a factory certificate, and the third-party Measurement certificate needs to be measured by yourself, but it will be returned.
          [Q]
          Does the GT-903 Gas detector have a real-time Linear dispersion map?
          [A]
          Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
          [Q]
          Can this gas detector export measurement data?
          [A]
          Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
          [Q]
          Can all ozone detectors be used for testing in the GB15322.1 standard?
          [A]
          Not necessarily, but this GT-903-O3-Y ozone detector can be considered.
