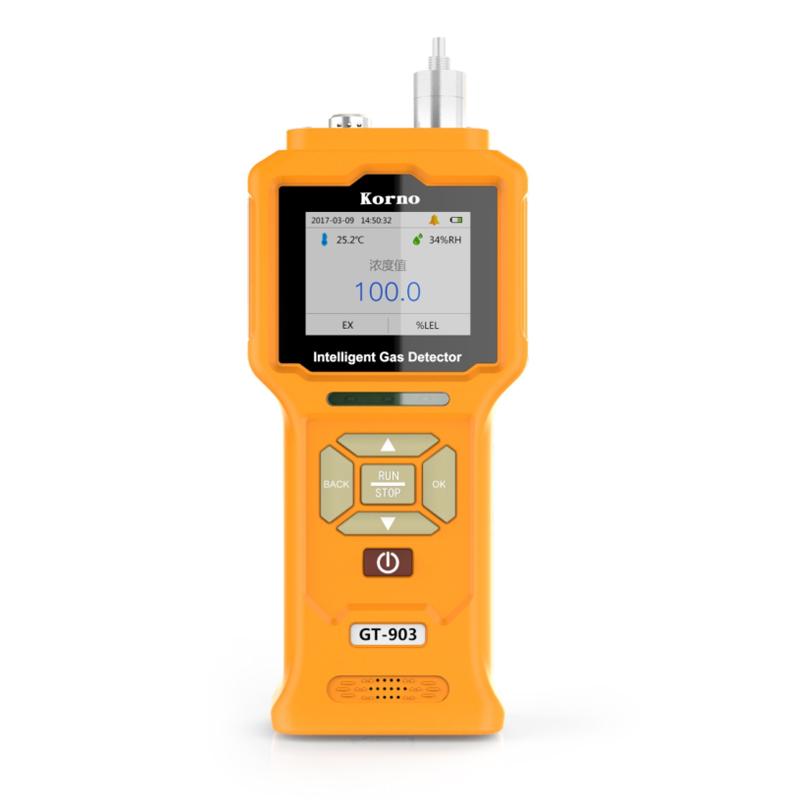

KORNO GT-903-SO2-Y sulfur dioxide Detector, range 0-10PPM
Electrochemistry principle, pump suction sampling, detection of sulfur dioxide gas, range 0~10ppm, through explosion-proof certification, with Filter, sound and light alarm, detection accuracy ≤ +/- 3%.
KORNO
GT-903-SO2-Y
GT-903-NO-Y
GT-903-CH2O-Y
GT-903-H2-Y
GT-903-NH3-Y
GT-903-O2-Y
-
GUOYUGRA GY/VGD-200-O2-G (0-30% Vol) Oxygen Detector
$ 207.00 -
GUOYUGRA GY/VGD-200-SiH4-G (0-10ppm) Silane Detector
$ 568.00 -
GUOYUGRA GY/VGD-200-C6H14-G n-hexane Detector, infrared detection 0-1% Vol
$ 941.00 -
HONEYEAGLE HNAG1000-HBR Fixed Hydrogen Bromide Detector 0-400PPM
Login -
HONEYEAGLE HNAG1000-H2 Fixed Hydrogen Detector 0-40000PPM
$ 607.00
Introduction

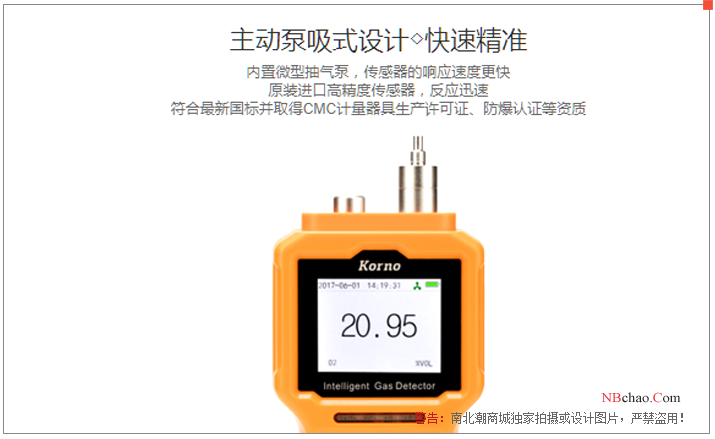

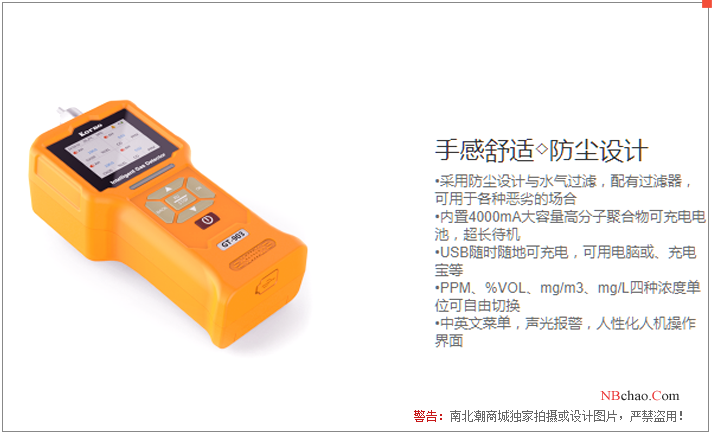

GT-903 pump suction sulfur dioxide Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical/infrared absorption gas sensor and microcontroller technology, with fast response speed, high measurement accuracy and stability And the repeatability is good, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.
Features
KORNO GT-903-SO2-Y Sulfur dioxide DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detection gas | Sulfur dioxide SO2 |
| range | 0~10ppm |
| resolution | 0.001ppm |
| Response time | T90≤20s |
| linearity error | ≤±1% |
| Detection Accuracy | ≤±3% |
| Zero drift | ≤±1%(F.S/年) |
| recovery time | ≤20s |
| Sexual repeability | ≤±1% |
| Expansion gas | Supports 1-4 Sensors |
| Explosion-proof sign | CNEx16.0538 |
| Protection class | IP65 |
| Production license | Guangdong 00001052 (CMC metrology authentication) |
| temperature and humidity | Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH |
| Sampling method | Pump suction |
| data storage | Real-time storage and Timer storage can be set; 120,000 groups of data can be stored |
| Operating Temperature | -30~60℃ |
| Environment humidity | 0~95% RH non-condensing |
| Operating Pressure | -30 ~ 100Kpa |

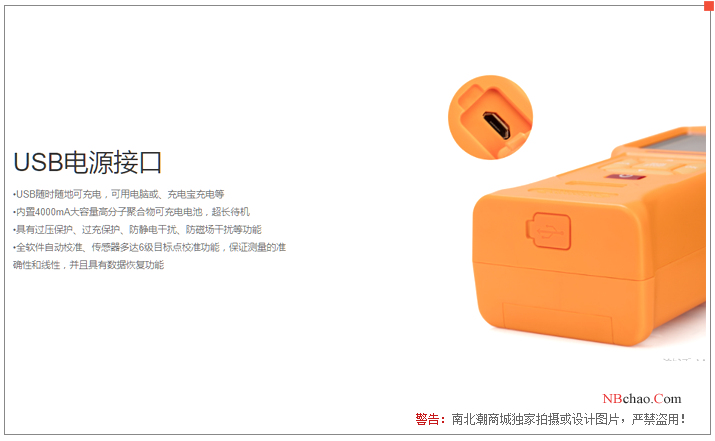

| Power | 4000mA Rechargeable Polymer Battery |
| Dimensions | 180*85*55mm |
| Net Weight | 0.5Kg |
| Execution standards | GB3836.1-2010、GB3836.4-2010 |
| Optional range | 0~10、20、50、100、500、1000、2000ppm |
KORNO GT-903-SO2-Y Sulfur dioxide Detector Packing list
host X1, USB charger X1, calibration cover X1, instrument case X1, manual X1, certificate X1, warranty card X1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
