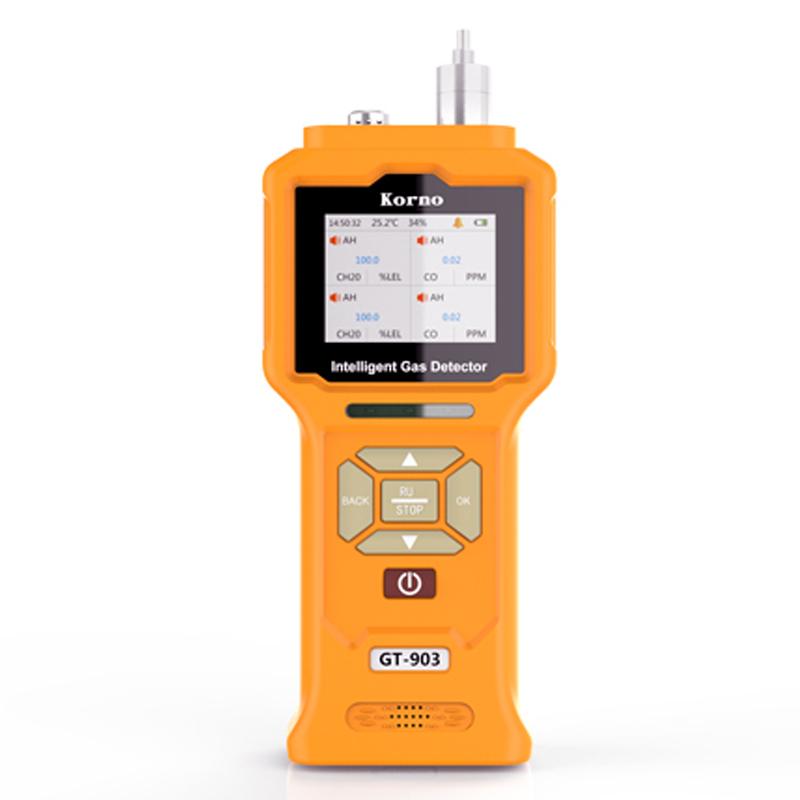

KORNO GT-903-PH3-Y phosphating hydrogen Detector, range 0-5PPM
Electrochemistry principle, pump suction sampling, detection of combustible gas, range 0~5ppm, through explosion-proof certification, with Filter, sound and light alarm, detection accuracy ≤ +/- 3%.
KORNO
GT-903-PH3-Y
GT-903-NO-Y
GT-903-CH2O-Y
GT-903-H2-Y
GT-903-NH3-Y
GT-903-O2-Y
-
Guoyu Technology GY/VGD-200-N2O4-G (0-10ppm) Nitrous Oxide Detector
$ 879.00 -
GUOYUGRA GY/VGD-200-CH3Br-G (0-50ppm) Methyl Bromide Detector (PID)
$ 1190.00 -
Baoshi'an BH-90-HCN Hydrogen Cyanide Gas Detector 0~10ppm
$ 226.00 -
KORNO GT-903-HCL-YH Hydrogen chloride Detector, measuring range 0-500ppm
$ 1003.00 -
BH-60-HCN (with display + alarm) Fixed HCN Gas Detector 0~10ppm
$ 257.00
Introduction
GT-903 pump-suction phosphine Gas Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical gas sensor and microcontroller technology, with fast response speed, high measurement accuracy and stability And the repeatability is good, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.
Features
KORNO GT-903-PH3-Y Phosphating hydrogen DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detection gas | Phosphating hydrogen PH3 |
| range | 0~5ppm |
| resolution | 0.01ppm |
| Response time | T90≤20s |
| linearity error | ≤±1% |
| Detection Accuracy | ≤±3% |
| Zero drift | ≤±1%(F.S/年) |
| recovery time | ≤20s |
| Sexual repeability | ≤±1% |
| Expansion gas | Supports 1-4 Sensors |
| Explosion-proof sign | CNEx16.0538 |
| Protection class | IP65 |
| Production license | Guangdong 00001052 (CMC metrology authentication) |
| temperature and humidity | Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH |
| Sampling method | Pump suction |
| data storage | Real-time storage and Timer storage can be set; 120,000 groups of data can be stored |
| Operating Temperature | -30~60℃ |
| Environment humidity | 0~95% RH non-condensing |
| Operating Pressure | -30 ~ 100Kpa |
| Power | 4000mA Rechargeable Polymer Battery |
| Dimensions | 180*85*55mm |
| Net Weight | 0.5Kg |
| Execution standards | GB3836.1-2010、GB3836.4-2010 |
| Optional range | 0~5、20、50、100、500、1000、2000ppm |
KORNO GT-903-PH3-Y Phosphating hydrogen Detector Packing list
host X1, USB charger X1, calibration cover X1, instrument case X1, manual X1, certificate X1, warranty card X1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
