        Home> Gas detector> KORNO> KORNO MOT500-CO2-Y (IR 1%) Carbon dioxide Detector (infrared 1%)
        KORNO MOT500-CO2-Y (IR 1%) Carbon dioxide Detector (infrared 1%)

        KORNO MOT500-CO2-Y (infrared 1%) online carbon dioxide Detector 0-500ppm

        CO2, range 0~500ppm, resolution 1ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 1%, explosion-proof mark CNEx16.0547, Protection level IP65

        Brand
        SKU: NB016099
        China KORNO
        Stock
        Loading…
        Price
        $ 1019.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          KORNOLOGO

          KORNO shopSE

          Information
          Datasheet RFQ Contract Video Manual
          What else did others buy
          Genuinegoods

          • KORNO MOT500-CO2-Y (IR 1%) Carbon dioxide Detector (infrared 1%)Overview

          • Specifications
          • Comments
          • FAQs
          MOT500-CO2-Y (IR 1%)
          Carbon dioxide Detector (infrared 1%)
          • KORNO MOT500-CO2-Y (infrared 1%) online carbon dioxide Detector 0-500ppm
          • KORNO MOT500-CO2-Y (infrared 1%) online carbon dioxide Detector 0-500ppm Figure 1
          • KORNO MOT500-CO2-Y (infrared 1%) online carbon dioxide Detector 0-500ppm Figure 2
          CO2, range 0~500ppm, resolution 1ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 1%, explosion-proof mark CNEx16.0547, Protection level IP65

          Introduction

          MOT500 online infrared carbon dioxide Detector is suitable for carbon dioxide concentration detection in various environments. It adopts imported NDIR infrared absorption gas sensor and microcontroller technology, with fast response speed, high measurement accuracy, good stability and repeatability, and the whole machine The performance is at the domestic (CN) professional level.

          Features

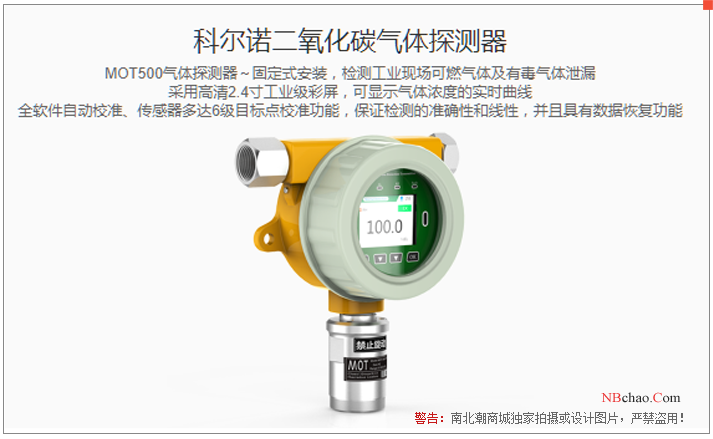

          KORNO MOT500-CO2-Y (infrared 1%) carbon dioxide Detector 1

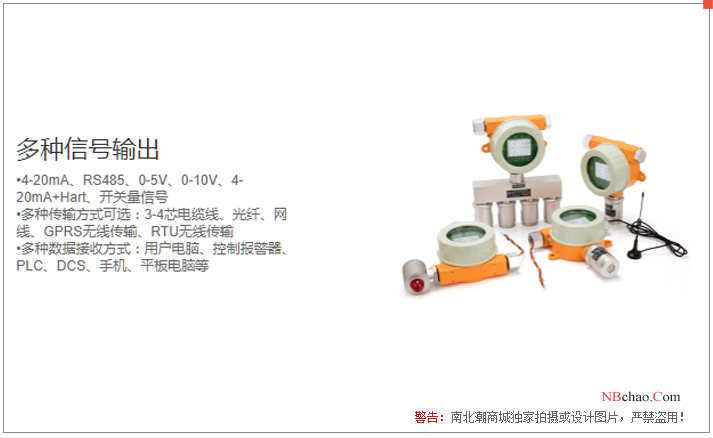

          KORNO MOT500-CO2-Y (infrared 1%) carbon dioxide Detector 2

          KORNO MOT500-CO2-Y (infrared 1%) carbon dioxide Detector 3

          VS

          KORNO MOT500-CO2-Y (IR 1%) Carbon dioxide Detector (infrared 1%)Specifications

          LIST VALUE
          Detect gas CO2
          Range 0~500ppm
          resolution 1ppm
          Response time T90≤20s
          Linearity ≤±1%
          detection Accuracy ≤±1%
          Zero drift ≤ +/- 1% (F. S/year)
          recovery time ≤20s
          Repeatability ≤±1%
          expansion gas Supports 1-6 Sensors (optional)
          Explosion-proof sign CNEx16.0547
          Protection level IP65
          production license Guangdong 00001052 (CMC metrology authentication)
          Humidity Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
          Sampling method Diffusion, flow, pump suction optional
          Installation method Wall-mounted, pipeline, circulation
          Operating temperature -30~50℃
          Environmental humidity 0~95% RH non-condensing
          Operating Pressure 0~100Kpa
          Power Supply 24VDC（12~30VDC）
          Dimension 200*149*79mm
          Weight 1.5Kg
          execution standard GB3836.1-2010、GB3836.2-2010
          signal output ① 4-20mA signal ② RS485 signal ③ Voltage signal
          signal output ④ Optional 4-20mA + Hart output ⑤ switching signal
          receiving device User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
          Alarm mode On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
          Shell material Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
          optional range 0~500, 2000, 5000, 10000, 50000ppm, 20%, 50%, 100% Vol (Accuracy ≤ +/- 1% F. S)

          KORNO MOT500-CO2-Y (IR 1%) Carbon dioxide Detector (infrared 1%) Packing list

          host X1, calibration cover X1, manual X1, certificate X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          Medium: carbon dioxide: detection range 0--50%, online, can it be used?
          [A]
          Yes, two accuracy, choose one of 2% and 1%.
          [Q]
          To meet the GB3836.4 carbon dioxide detector
          [A]
          MOT500-CO2-Y carbon dioxide detector, please refer to it.
          [Q]
          Can the MOT500 sampling method only be pumped?
          [A]
          Hello, the Korno MOT500-CO2-Y online carbon dioxide detector has two sampling methods: pump suction and diffusion.
          [Q]
          With the Corno in-line CO2 detector, can I expand 3 Miscellaneous Gas Sensors into it?
          [A]
          Hello, this Gas detector can support 1 to 6 Sensors, so it can meet your needs.
