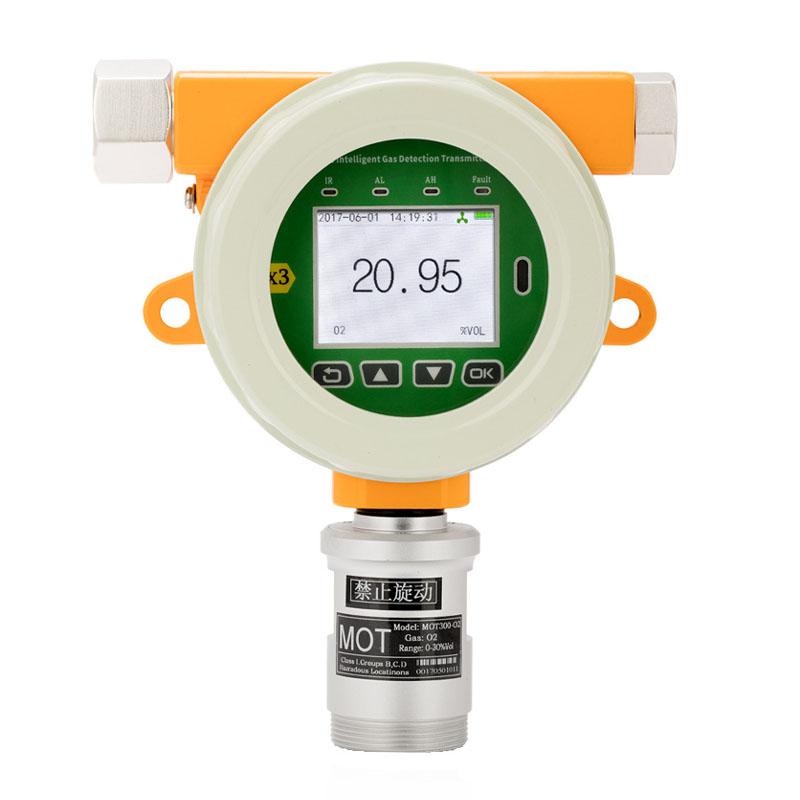

KORNO MOT500-N2-Y Online Nitrogen Detector 0-100%. Vol

N2, range 0~100%. Vol is only suitable for testing pure nitrogen on site, resolution 0.01% vol, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65

Brand

SKU: NB016103

KORNO

Model

MOT500-N2-Y

Price

$ 489.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

KORNO shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

Genuinegoods

KORNO MOT500-N2-Y Nitrogen DetectorOverview
Specifications
Comments
FAQs

MOT500-N2-Y

Nitrogen Detector

Introduction

MOT500 online nitrogen Detector is especially suitable for continuous online detection of high-purity nitrogen and nitrogen concentration in various industrial environments. The instrument adopts imported nitrogen sensor and microcontroller technology, which has the advantages of stable signal, high precision and good repeatability. The explosion-proof wiring method is suitable for various dangerous places.

Features

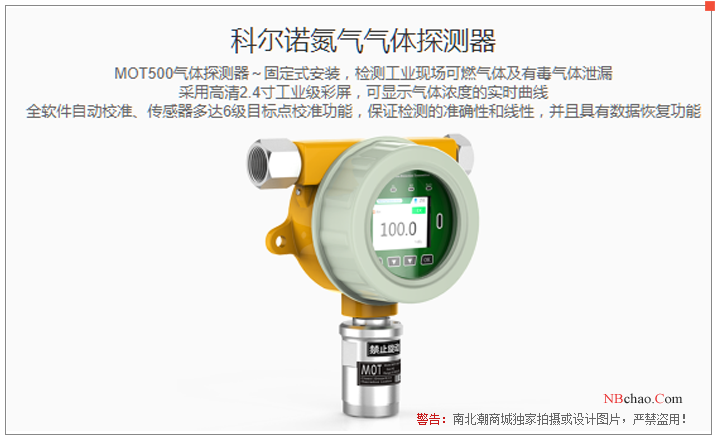

KORNO MOT500-N2-Y Nitrogen Detector 1

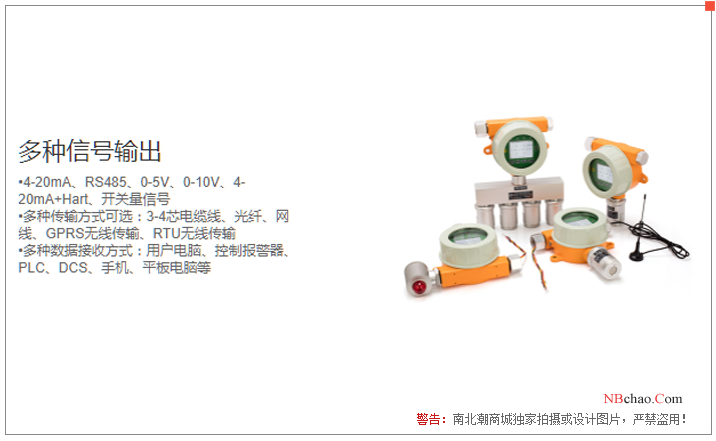

KORNO MOT500-N2-Y Nitrogen Detector 2

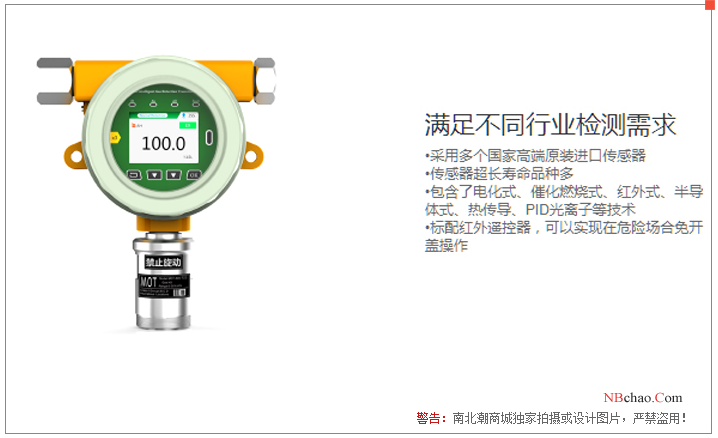

KORNO MOT500-N2-Y Nitrogen Detector 3

KORNO MOT500-N2-Y Nitrogen DetectorSpecifications

LIST	VALUE
Detect gas	N2
Range	0~100% .vol is only suitable for on-site measurement of pure nitrogen
resolution	0.01%vol
Response time	T90≤20s
Linearity	≤±1%
detection Accuracy	≤±3%
Zero drift	≤ +/- 1% (F. S/year)
recovery time	≤20s
Repeatability	≤±1%
expansion gas	Supports 1-6 Sensors (optional)
Explosion-proof sign	CNEx16.0547
Protection level	IP65
production license	Guangdong 00001052 (CMC metrology authentication)
Humidity	Optional accessories, temperature detection range: -40~120 ℃, Humidity detection range: 0~100% RH
Sampling method	Diffusion, flow, pump suction optional
Installation method	Wall-mounted, pipeline, circulation
Operating temperature	-30~50℃
Environmental humidity	0~95% RH non-condensing
Operating Pressure	0~100Kpa
Power Supply	24VDC（12~30VDC）
Dimension	20014979mm
Weight	1.5Kg
execution standard	GB3836.1-2010、GB3836.2-2010
signal output	① 4-20mA signal ② RS485 signal ③ Voltage signal
signal output	④ Optional 4-20mA + Hart output ⑤ switching signal
receiving device	User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode	On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material	Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion

KORNO MOT500-N2-Y Nitrogen Detector Packing list

host X1, calibration cover X1, manual X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

MOT500-N2-Y online nitrogen detection, can it be tested under any conditions? Can the solenoid valve be operated and controlled in conjunction, and the nitrogen can be switched on and off when it is higher or lower than a certain value?

[A]

Can link the solenoid valve

[Q]

To connect the PLC system, which nitrogen detector do you use?

[A]

To connect the PLC system, a fixed on-line nitrogen detector is required.

[Q]

Does this nitrogen detector meet the GB3836.1 standard?

[A]

The nitrogen detector is suitable for GB3836.1. Please consult customer service for detailed application definition.
