        KORNO MOT500-CL2-Y Chlorine Detector

        KORNO MOT500-CL2-Y Chlorine Detector 0-10ppm

        CL2, range 0~10ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65

        Brand
        SKU: NB016105
        China KORNO
        Stock
        Loading…
        Price
        $ 434.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          KORNOLOGO

          KORNO shopSE

          Information
          Datasheet RFQ Contract Video Catalog Manual
          What else did others buy
          Genuinegoods

          • KORNO MOT500-CL2-Y Chlorine DetectorOverview

          • Specifications
          • Comments
          • FAQs
          MOT500-CL2-Y
          Chlorine Detector
          • KORNO MOT500-CL2-Y Chlorine Detector 0-10ppm
          • KORNO MOT500-CL2-Y Chlorine Detector 0-10ppm Figure 1
          • KORNO MOT500-CL2-Y Chlorine Detector 0-10ppm Figure 2
          CL2, range 0~10ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65

          Introduction


          MOT500 chlorine Gas Detector is suitable for continuous on-line detection of chlorine gas concentration in various industrial environments and special environments. The instrument adopts imported electrochemical sensors and microcontroller technology, which has the advantages of stable signal, high precision and good repeatability. The explosion-proof wiring method is suitable in various dangerous places.

          Features

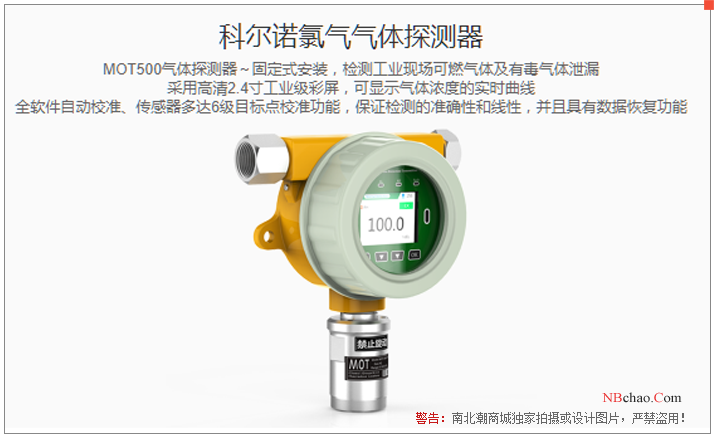

          KORNO MOT500-CL2-Y chlorine Gas Detector 1

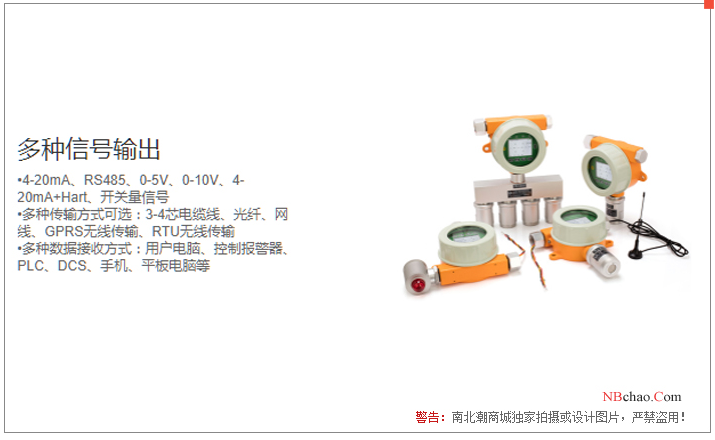

          KORNO MOT500-CL2-Y Chlorine Gas Detector 2

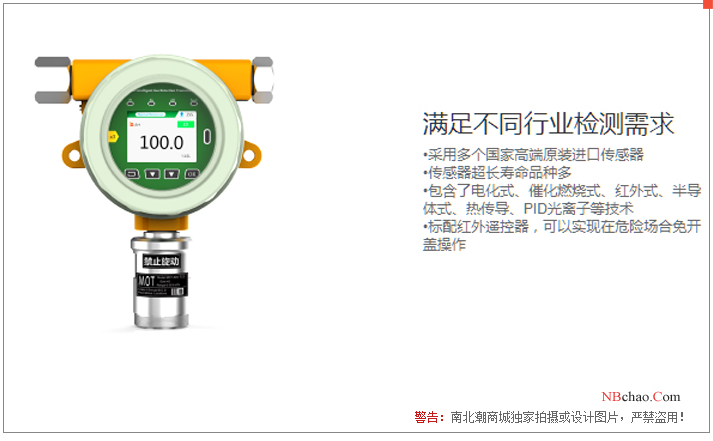

          KORNO MOT500-CL2-Y Chlorine Gas Detector 3

          VS

          KORNO MOT500-CL2-Y Chlorine DetectorSpecifications

          LIST VALUE
          Detect gas CL2
          Range 0~10ppm
          resolution 0.01ppm
          Response time T90≤20s
          Linearity ≤±1%
          detection Accuracy ≤±3%
          Zero drift ≤ +/- 1% (F. S/year)
          recovery time ≤20s
          Repeatability ≤±1%
          expansion gas Supports 1-6 Sensors (optional)
          Explosion-proof sign CNEx16.0547
          Protection level IP65
          production license Guangdong 00001052 (CMC metrology authentication)
          Humidity Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
          Sampling method Diffusion, flow, pump suction optional
          Installation method Wall-mounted, pipeline, circulation
          Operating temperature -30~50℃
          Environmental humidity 0~95% RH non-condensing
          Operating Pressure 0~100Kpa
          Power Supply 24VDC（12~30VDC）
          Dimension 200*149*79mm
          Weight 1.5Kg
          execution standard GB3836.1-2010、GB3836.2-2010
          signal output ① 4-20mA signal ② RS485 signal ③ Voltage signal
          signal output ④ Optional 4-20mA + Hart output ⑤ switching signal
          receiving device User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
          Alarm mode On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
          Shell material Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
          optional range 0~10、20、50、100、200、500、1000、2000、5000ppm

          KORNO MOT500-CL2-Y Chlorine Detector Packing list

          host X1, calibration cover X1, manual X1, certificate X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          What are the upper and lower limits of measurement for a 1000ppm table?
          [A]
          The maximum display of 1000ppm is to 1000ppm, and the minimum display is 0.1PPM.
          [Q]
          Do you have the chlorine detector required by the GB3836.4 standard?
          [A]
          This MOT500-CL2-Y chlorine detector will do.
