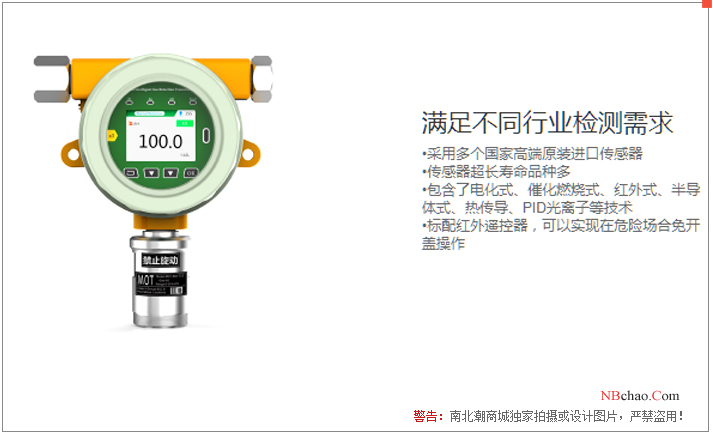

KORNO MOT500-CH4-Y (infrared 3%) methane Detector 0-5000ppm
KORNO MOT500-CH4-Y Infrared Sensors methane Gas Detector for testing methane gas, test concentration 0-5000ppm, MOT500-CH4-Y methane Detector is suitable for various industrial environments, environmental protection departments and interior decoration and other fields.
KORNO
MOT500-CH4-Y (Infrared 3%)
-
KORNO MOT500-O3-Y Ozone Detector 0-1ppm
$ 598.00 -
Empaer SPES-CO2 Lone Walker series handheld carbon dioxide concentration Detector
$ 834.00 -
KORNO GT-903-Y3 (CO, H2S, EX) standard three-in-one Gas Detector
$ 416.00 -
HUIRUIPU HRP-T1000-CL2 Chlorine Gas Detector (with display and no light)
$ 215.00 -
SMART SENSOR smart sensor AS8800L Combustible Gas Detector reaction time ≤ 1 second
$ 88.00
Introduction
MOT500 formaldehyde Detector is suitable for continuous online detection of formaldehyde concentration in various industrial environments, environmental protection departments and interior decoration. The instrument adopts imported electrochemical sensor and microcontroller technology, which has the advantages of stable signal, high precision and good repeatability. It is explosion-proof The wiring method is suitable for various dangerous places.
Features
KORNO MOT500-CH4-Y (Infrared 3%) Methane Detector (infrared 3%)Specifications
| LIST | VALUE |
|---|---|
| Detect gas | CH4 |
| Range | 0~5000ppm |
| resolution | 1ppm |
| Response time | T90≤20s |
| Linearity | ≤±1% |
| detection Accuracy | ≤±3% |
| Zero drift | ≤ +/- 1% (F. S/year) |
| recovery time | ≤20s |
| Repeatability | ≤±1% |
| expansion gas | Supports 1-6 Sensors (optional) |
| Explosion-proof sign | CNEx16.0547 |
| Protection level | IP65 |
| production license | Guangdong 00001052 (CMC metrology authentication) |
| Humidity | Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH |
| Sampling method | Diffusion, flow, pump suction optional |
| Installation method | Wall-mounted, pipeline, circulation |
| Operating temperature | -30~50℃ |
| Environmental humidity | 0~95% RH non-condensing |
| Operating Pressure | 0~100Kpa |
| Power Supply | 24VDC（12~30VDC） |
| Dimension | 200*149*79mm |
| Weight | 1.5Kg |
| execution standard | GB3836.1-2010、GB3836.2-2010 |
| signal output | ① 4-20mA signal ② RS485 signal ③ Voltage signal |
| signal output | ④ Optional 4-20mA + Hart output ⑤ switching signal |
| receiving device | User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional |
| Alarm mode | On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional |
| Shell material | Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion |
| optional range | 0~5000、10000、50000ppm、20%、50%、100%.Vol |
KORNO MOT500-CH4-Y (Infrared 3%) Methane Detector (infrared 3%) Packing list
Complete-built unit X1, calibration cover X1, manual X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
