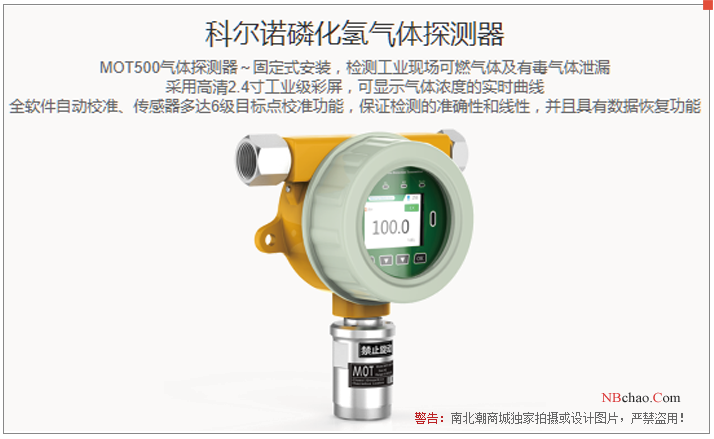

KORNO MOT500-PH3-Y phosphating hydrogen Detector 0-5ppm
PH3, range 0~5ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65
KORNO
MOT500-PH3-Y
-
KORNO MOT500-H2-Y Hydrogen Detector 0-500ppm
$ 434.00 -
HUIRUIPU HRP-K6000-1 One-way controller, digital display/three-wire system
$ 134.00 -
Empaer SPES-CL2 series handheld chlorine concentration Detector
$ 344.00 -
HONEYEAGLE HNAG1000-CO Fixed Carbon Monoxide Detector 40000PPM
$ 657.00 -
HONEYEAGLE HNAG1000-CO Fixed Carbon Monoxide Detector 1500PPM
$ 285.00
Introduction
MOT500 online phosphine Detector is suitable for continuous online detection of phosphine concentration in various industrial environments and special environments. The instrument adopts imported electrochemical sensors and microcontroller technology, with stable signals, high precision, and good repeatability. Advantages, the explosion-proof wiring method is suitable for various dangerous places.
Features
KORNO MOT500-PH3-Y Phosphating hydrogen DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detect gas | Phosphating hydrogen PH3 |
| Range | 0~5ppm |
| resolution | 0.01ppm |
| Response time | T90≤20s |
| Linearity | ≤±1% |
| detection Accuracy | ≤±3% |
| Zero drift | ≤ +/- 1% (F. S/year) |
| recovery time | ≤20s |
| Repeatability | ≤±1% |
| expansion gas | Supports 1-6 Sensors (optional) |
| Explosion-proof sign | CNEx16.0547 |
| Protection level | IP65 |
| production license | Guangdong 00001052 (CMC metrology authentication) |
| Humidity | Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH |
| Sampling method | Diffusion, flow, pump suction optional |
| Installation method | Wall-mounted, pipeline, circulation |
| Operating temperature | -30~50℃ |
| Environmental humidity | 0~95% RH non-condensing |
| Operating Pressure | 0~100Kpa |
| Power Supply | 24VDC（12~30VDC） |
| Dimension | 200*149*79mm |
| Weight | 1.5Kg |
| execution standard | GB3836.1-2010、GB3836.2-2010 |
| signal output | ① 4-20mA signal ② RS485 signal ③ Voltage signal |
| signal output | ④ Optional 4-20mA + Hart output ⑤ switching signal |
| receiving device | User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional |
| Alarm mode | On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional |
| Shell material | Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion |
| optional range | 0~5、20、50、100、500、1000、2000ppm |
KORNO MOT500-PH3-Y Phosphating hydrogen Detector Packing list
host X1, calibration cover X1, manual X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
