BH-90-EX Portable Combustible Gas Detector 0~100%

BH-90-EX portable combustible Gas Detector is a diffusion type Gas Detector, used to detect the concentration of combustible gas, BH-90-EX range of 0~100%, support sound, light, vibration three alarm mode.

Brand

SKU: NB016122

Bosean

Model

BH-90-EX

Get Quote

Bosean shopSE

Information

Datasheet Video Manual

What else did others buy

GUOYUGRA GY/VGD-200-N2O-G (0-10ppm) laughing Gas Detector

$ 568.00
KORNO GT903-Y4 Portable 4-in-1 Detector for hydrogen sulfide, carbon monoxide, oxygen, nitrogen dioxide

$ 781.00
GUOYUGRA GY/VGD-200-4M-G (C6H6/C7H8/C8H10/EX) On-line Gas Detector for refineries

$ 1041.00
SMART SENSOR AR5750A halogen Gas Detector with charging function

$ 148.00
BOSEAN K-G60 (NO) Industrial Nitric Oxide Gas Alarm Detector

$ 327.00

Genuinegoods

Bosean BH-90-EX Gas DetectorOverview
Specifications
Comments
FAQs

BH-90-EX

Gas Detector

Introduction

BH-90 is a cost-effective portable single Gas Detector, which adopts the mainstream 8-bit micro-control technology, with fast response, high measurement accuracy, good stability and repeatability, and easy operation. Small in size and highly waterproof, it can stand the test of harsh environments. It comes with a flashlight, which is convenient for temporary operations in dark environments. Built-in 1500mA large-capacity rechargeable lithium battery, long standby time; 12864 dot-matrix LCD can well display various technical indicators and gas concentration values, and can view historical alarm data, and has data storage function. It is suitable for explosion-proof, poisonous gas leakage rescue, underground pipelines, mines, metallurgy, power plants, chemical industry, tunnels, tunnels and other places. It can effectively prevent poisoning accidents and ensure the safety of staff. Production equipment is not subject to loss.

product display

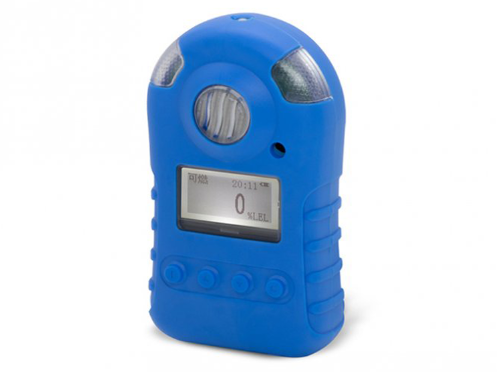

Baoshian BH-90-EX Portable Gas Detector

Gas parameter table

Measured gas	Measuring range	Optional range	resolution	alarm point
Combustible gas EX	0-100%lel	0-100%vol (infrared)	1%lel/1%vol	Low: 20 High: 50
Oxygen O2	0-30%vol	0-30%vol	0.1%vol	Low: 19.5% High: 23.5%vol
Hydrogen sulfide H2S	0-100ppm	0-50/200/1000ppm	1ppm	Low: 10 High: 20 ppm
carbon monoxide CO	0-1000ppm	0-500/2000/5000ppm	1ppm	Low: 50 High: 150 ppm
carbon dioxide CO2	0-5000ppm	0-1%/5%/10%vol (infrared)	1ppm/0.1%vol	Low: 1000 High: 2000 ppm
NO	0-250ppm	0-500/1000ppm	1ppm	Low: 50 High: 150 ppm
Nitrogen dioxide NO2	0-20ppm	0-50/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Sulfur dioxide SO2	0-20ppm	0-50/1000ppm	0.1/1ppm	Low: 5 High: 10 ppm
Chlorine CL2	0-20ppm	0-100/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Hydrogen H2	0-1000ppm	0-500/2000/5000ppm	1ppm	Low: 50 High: 150 ppm
Ammonia NH3	0-100ppm	0-50/500/1000ppm	0.1/1ppm	Low: 20 High: 50 ppm
Phosphine PH3	0-20ppm	0-20/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Hydrogen chloride HCL	0-20ppm	0-20/500/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Chlorine dioxide CLO2	0-50ppm	0-10/100ppm	0.1ppm	Low: 5 High: 10 ppm
Hydrogen cyanide HCN	0-50ppm	0-100ppm	0.1/0.01ppm	Low: 10 High: 20 ppm
Ethylene oxide C2H4O	0-100ppm	0-100ppm	1/0.1ppm	Low: 20 High: 50 ppm
ozone	0-10ppm	0-20/100ppm	0.1ppm	Low: 2 High: 5 ppm
Formaldehyde CH2O	0-20ppm	0-50/100ppm	1/0.1ppm	Low: 5 High: 10 ppm
Hydrogen fluoride HF	0-100ppm	0-1/10/50/100ppm	0.01/0.1ppm	Low: 2 High: 5 ppm
Xylene/Toluene	0-20ppm	0-1/10/50/100ppm	0.01/0.1ppm	Low: 5 High: 10 ppm

Bosean BH-90-EX Gas DetectorSpecifications

LIST	VALUE
type	Portable
Detect the amount of gas	single gas
Sensors principle	Catalytic combustion
Detect gas	combustible gas
Sampling method	Diffusion
Range	0~100%
Resolution	1%VOL
Sampling method	Diffusion
Response time	T90<60s
Sensors Life	2 years
Charging time	4h-6h
Data Logging	1000 sets of alarm records
standby time	More than 8h continuous
Support for Sensors	Supports more than 30 types of Sensors, flexible configuration, and can be customized according to customer needs
Operating humidity	0-95% RH (non-condensing, humidity greater than 90% RH, need to be equipped with filtrate drying cylinder)
Working Voltage	DC3.7V (lithium battery Capacity 1500mAh)
Power Supply	3.7V rechargeable lithium battery
alarm characteristics	Alarm light: red LED flashing alarm, ≥ 20m alarm sound: buzzer alarm ≥ 75dB vibration alarm
alarm method	Sound, light, vibration.
alarm point	Low: 20% LEL, High: 50% LEL
display error	≤±5%FS
Display	12864 dot matrix display
Instruction method	LCD display real-time data and system status, Light Emitting Diode, sound, vibration indication alarm, fault and underVoltage
Protection class	IP65
Weight	About 130g (excluding portable accessories)
Dimensions	1096030mm
Shell material	ABS
Explosion-proof sign	Exib IIB T3 Gb
Measurement Certificate number	Yuji 01000158

Bosean BH-90-EX Gas Detector Packing list

Complete-built unit X1, Encasement box X1, Charger X1, Calibration cover X1, Manual X1, Certificate X1, Warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is there a Combustible Gas detector for hot work?

[A]

BH-90-EX can be used.

[Q]

Which gas concentration is measured by BH-90-EX?

[A]

Hello, EX means combustible gas.

[Q]

Is this the portable Gas detector mentioned in GB16808?

[A]

[Q]

What is the response time of the Portable Combustible Gas detector Model BH-90-EX?

[A]

Hello, the response time of this detector is less than 30s.

[Q]

How often do I need to replace the flammable Gas detector sensor accessories?

[A]

Hello, it is recommended to calibrate once a year.
