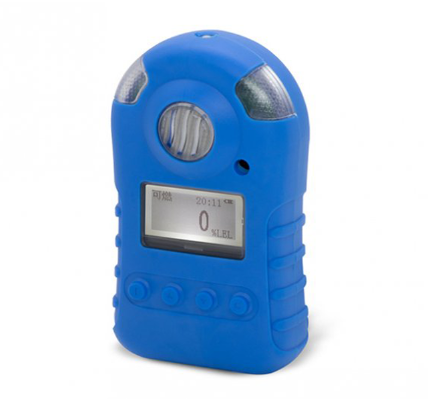

BH-90-HCL Hydrogen Chloride Gas Detector 0~50ppm
Baoshian Hydrogen Chloride Gas Detector BH-90-HCL is a portable HCL Gas Detector with a range of 0~50ppm and a resolution of 0.1ppm. The BH-90-HCL Hydrogen Chloride Gas Detector has high waterproof performance and is suitable for underwater and humid environments.
Bosean
BH-90-HCL
-
KORNO GT-903-CL2-Y Pump suction chlorine Detector, measuring range 0-10PPM
$ 416.00 -
HONEYEAGLE HNAG1000-NO Fixed nitric oxide Detector 0-300PPM
$ 582.00 -
HONEYEAGLE HNAG1000-PH3 Fixed phosphating hydrogen Detector 0-4000PPM
$ 682.00 -
HONEYEAGLE HNAG1000-CO Fixed Carbon Monoxide Detector 40000PPM
$ 657.00 -
KORNO GT-903-Y3 (CO, H2S, O2) Standard 3-in-1 Gas Detector
$ 416.00
Introduction
BH-90 is a high-performance portable single Gas Detector, using the mainstream 8-bit micro-control technology, fast response, high measurement accuracy, good stability and repeatability, simple operation. Compact and highly waterproof, it can withstand harsh environments. Comes with a flashlight for temporary work in the dark. Built-in 1500mA large-capacity rechargeable lithium battery, ultra-long standby, 12864 dot matrix LCD screen can display various technical indicators and gas concentration values, can view historical alarm data, and has data storage function. It is suitable for explosion-proof, toxic gas leakage rescue, underground pipelines, mines, metallurgy, power plants, chemical industries, tunnels, tunnels and other places, effectively preventing the occurrence of poisoning accidents and ensuring that the life safety of staff is not violated. There is no loss of production equipment.
Pictures
Gas parameter table
| The gas to be measured | Measuring range | Selectable measuring ranges | resolution | Alarm point |
| Combustible gas EX | 0-100%lel | 0-100%vol (infrared) | 1%lel/1%vol | Low: 20 High: 50 |
| Oxygen O2 | 0-30%vol | 0-30%vol | 0.1%vol | Low: 19.5% High: 23.5%vol |
| Hydrogen sulfide H2S | 0-100ppm | 0-50/200/1000ppm | 1ppm | Low: 10 High: 20 ppm |
| Carbon monoxide CO | 0-1000ppm | 0-500/2000/5000ppm | 1ppm | Low: 50 High: 150 ppm |
| Carbon dioxide CO2 | 0-5000ppm | 0-1%/5%/10%vol (infrared) | 1ppm/0.1%vol | Low: 1000 High: 2000 ppm |
| Nitric oxide NO | 0-250ppm | 0-500/1000ppm | 1ppm | Low: 50 High: 150 ppm |
| NO2 nitrogen dioxide | 0-20ppm | 0-50/1000ppm | 0.1ppm | Low: 5 High: 10 ppm |
| Sulfur dioxide SO2 | 0-20ppm | 0-50/1000ppm | 0.1/1ppm | Low: 5 High: 10 ppm |
| Chlorine CL2 | 0-20ppm | 0-100/1000ppm | 0.1ppm | Low: 5 High: 10 ppm |
| Hydrogen H2 | 0-1000ppm | 0-500/2000/5000ppm | 1ppm | Low: 50 High: 150 ppm |
| Ammonia NH3 | 0-100ppm | 0-50/500/1000ppm | 0.1/1ppm | Low: 20 High: 50 ppm |
| Phosphine PH3 | 0-20ppm | 0-20/1000ppm | 0.1ppm | Low: 5 High: 10 ppm |
| HCL hydrogen chloride | 0-20ppm | 0-20/500/1000ppm | 0.1ppm | Low: 5 High: 10 ppm |
| Chlorine dioxide CLO2 | 0-50ppm | 0-10/100ppm | 0.1ppm | Low: 5 High: 10 ppm |
| Hydrogen cyanide HCN | 0-50ppm | 0-100ppm | 0.1/0.01ppm | Low: 10 High: 20 ppm |
| Ethylene oxide C2H4O | 0-100ppm | 0-100ppm | 1/0.1ppm | Low: 20 High: 50 ppm |
| ozone | 0-10ppm | 0-20/100ppm | 0.1ppm | Low: 2 High: 5 ppm |
| Formaldehyde CH2O | 0-20ppm | 0-50/100ppm | 1/0.1ppm | Low: 5 High: 10 ppm |
| Hydrogen fluoride HF | 0-100ppm | 0-1/10/50/100ppm | 0.01/0.1ppm | Low: 2 High: 5 ppm |
| Xylene/toluene | 0-20ppm | 0-1/10/50/100ppm | 0.01/0.1ppm | Low: 5 High: 10 ppm |
Bosean BH-90-HCL Gas DetectorSpecifications
| LIST | VALUE |
|---|---|
| type | Portable |
| Detect the amount of gas | single gas |
| Sensors principle | Electrochemistry |
| Detect gas | Miscellaneous |
| Sampling method | Diffusion |
| Range | 0 to 50 ppm (HCL) |
| Resolution | 0.1ppm |
| Sampling method | Diffusion |
| Display | 12864 dot matrix display |
| alarm method | Sound, light, vibration. |
| alarm characteristics | Alarm light: red LED flashing alarm, ≥ 20m alarm sound: buzzer alarm ≥ 75dB vibration alarm |
| Operating temperature | -20℃～50℃ |
| Power Supply | 3.7V rechargeable lithium battery |
| Sensors Life | 2 years |
| Charging time | 4h-6h |
| Data Logging | 1000 sets of alarm records |
| standby time | Work continuously for more than 8 hours |
| password protection | With password protection function and password modification function (default password 8888) |
| recovery operation | Support factory calibration function and factory parameter setting function |
| Explosion-proof sign | Exib IIB T3 Gb |
| Support for Sensors | Supports more than 30 types of Sensors, flexible configuration, and can be customized according to customer needs |
| Additional features | Flashlight |
| Operating humidity | 0-95% RH (non-condensing, humidity greater than 90% RH, need to be equipped with filtrate drying cylinder) |
| Shell material | ABS |
| Dimensions | 109*60*30mm |
| Color options | Blue, yellow, orange. |
| alarm point | Low: 5ppm, High: 10ppm |
| display error | ≤±5%FS |
| Response time | T<60s |
| Instruction method | LCD display real-time data and system status, Light Emitting Diode, sound, vibration indication alarm, fault and underVoltage |
| Working Voltage | DC3.7V (lithium battery Capacity 1500mAh) |
| Protection class | IP65 |
| Weight | About 130g (excluding portable accessories) |
| Measurement Certificate number | Yuji 01000158 |
| optional range | 0~20/500/1000ppm |
Bosean BH-90-HCL Gas Detector Packing list
Complete-built unit X1, Encasement box X1, Charger X1, Calibration cover X1, Manual X1, Certificate X1, Warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
