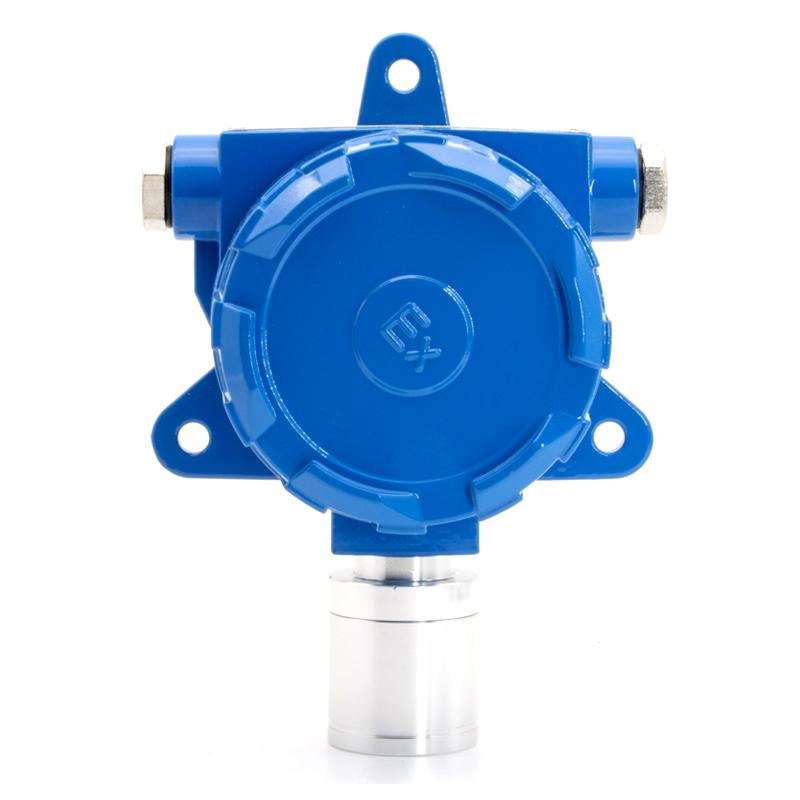

BOSEAN BH-60-EX Fixed Gas Detector 0~100% LEL
BOSEAN BH-60-EX Fixed Gas Detector is a flameproof structure design shell of combustible Gas Detector, test concentration 0~100% LEL, BH-60-EX Fixed Gas Detector can be widely used in metallurgy, petroleum, chemical, municipal and other fields to detect combustible gases.
Bosean
BH-60-EX
Introduction
BH-60 fixed Gas Detector is a new type of Gas Detector developed and produced by the company in combination with many years of experience in gas detection, which is used to detect the concentration of flammable gases or other toxic and harmful gases in the air.
This product has the advantages of stable signal, high precision, rapid response, long life, short polarization time, etc., using industrial-grade sensors, the instrument shell is designed with explosion-proof and explosion-proof structure, 4-20mA standard signal or directly into the DOS system, which can be widely used in metallurgy, petroleum, chemical, municipal and other industries, and is at the professional level of similar products in CHINA.
The shell is designed with a die-cast aluminum shell with flameproof structure, the groove design of the upper cover can lock the shell, the front of the sensor is designed as a downward structure to ensure that the sensor is in good contact with the gas, and the inlet adopts an explosion-proof and waterproof joint.
Gas parameter table
| The gas to be measured | Measuring range | Selectable measuring ranges | resolution | Alarm point |
| Combustible gas EX | 0-100%lel | 0-100%vol (infrared) | 1%lel/1%vol | Low: 20 High: 50 |
| Oxygen O2 | 0-30%vol | 0-30%vol | 0.1%vol | Low: 19.5% High: 23.5%vol |
| Hydrogen sulfide H2S | 0-100ppm | 0-50/200/1000ppm | 1ppm | Low: 10 High: 20 ppm |
| Carbon monoxide CO | 0-1000ppm | 0-500/2000/5000ppm | 1ppm | Low: 50 High: 150 ppm |
| Carbon dioxide CO2 | 0-5000ppm | 0-1%/5%/10%vol (infrared) | 1ppm/0.1%vol | Low: 1000 High: 2000 ppm |
| Nitric oxide NO | 0-250ppm | 0-500/1000ppm | 1ppm | Low: 50 High: 150 ppm |
| NO2 nitrogen dioxide | 0-20ppm | 0-50/1000ppm | 0.1ppm | Low: 5 High: 10 ppm |
| Sulfur dioxide SO2 | 0-20ppm | 0-50/1000ppm | 0.1/1ppm | Low: 5 High: 10 ppm |
| Chlorine CL2 | 0-20ppm | 0-100/1000ppm | 0.1ppm | Low: 5 High: 10 ppm |
| Hydrogen H2 | 0-1000ppm | 0-500/2000/5000ppm | 1ppm | Low: 50 High: 150 ppm |
| Ammonia NH3 | 0-100ppm | 0-50/500/1000ppm | 0.1/1ppm | Low: 20 High: 50 ppm |
| Phosphine PH3 | 0-20ppm | 0-20/1000ppm | 0.1ppm | Low: 5 High: 10 ppm |
| HCL hydrogen chloride | 0-20ppm | 0-20/500/1000ppm | 0.1ppm | Low: 5 High: 10 ppm |
| Chlorine dioxide CLO2 | 0-50ppm | 0-10/100ppm | 0.1ppm | Low: 5 High: 10 ppm |
| Hydrogen cyanide HCN | 0-50ppm | 0-100ppm | 0.1/0.01ppm | Low: 10 High: 20 ppm |
| Ethylene oxide C2H4O | 0-100ppm | 0-100ppm | 1/0.1ppm | Low: 20 High: 50 ppm |
| ozone | 0-10ppm | 0-20/100ppm | 0.1ppm | Low: 2 High: 5 ppm |
| Formaldehyde CH2O | 0-20ppm | 0-50/100ppm | 1/0.1ppm | Low: 5 High: 10 ppm |
| Hydrogen fluoride HF | 0-100ppm | 0-1/10/50/100ppm | 0.01/0.1ppm | Low: 2 High: 5 ppm |
| Xylene/toluene | 0-20ppm | 0-1/10/50/100ppm | 0.01/0.1ppm | Low: 5 High: 10 ppm |
Bosean BH-60-EX Gas DetectorSpecifications
| LIST | VALUE |
|---|---|
| Range | 0~100%LEL |
| resolution | 1%LEL |
| Alarm point | 20%vol |
| Power Supply | DC 24V +/- 15% |
| error of indication | ±3%FS |
| System power | Maximum power consumption 3W |
| Ambient Operating Temperature | -10~40℃ |

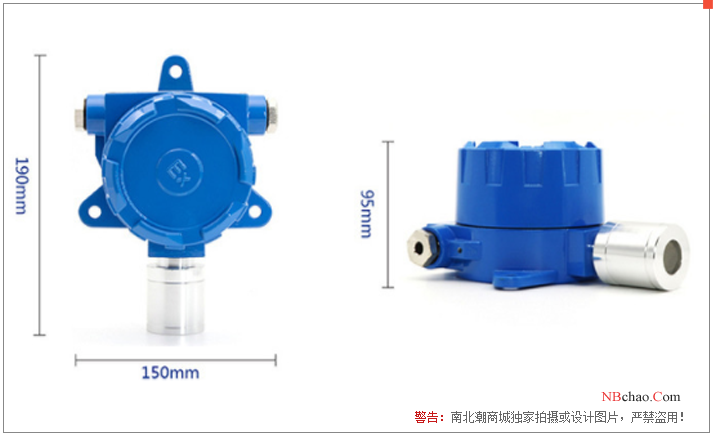

| Dimensions | 193*140*93mm |
| Explosion-proof sign | CNEx16.0449 |
| Explosion-proof sign | Exd ⅡC T6 Gb |
| response time | <30s |
| signal output | 3-Wire 4~ 20mA or 4-wire RS485 |
| Installation method | wall mounted |
| Shell material | die casting aluminum |
| Ambient Operating Humidity | 0~95% RH non-condensing |
Bosean BH-60-EX Gas Detector Packing list
Host X1, Encasement Box X1, Charger X1, Calibration Cover X1, Manual X1, Certificate X1, Warranty Card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
