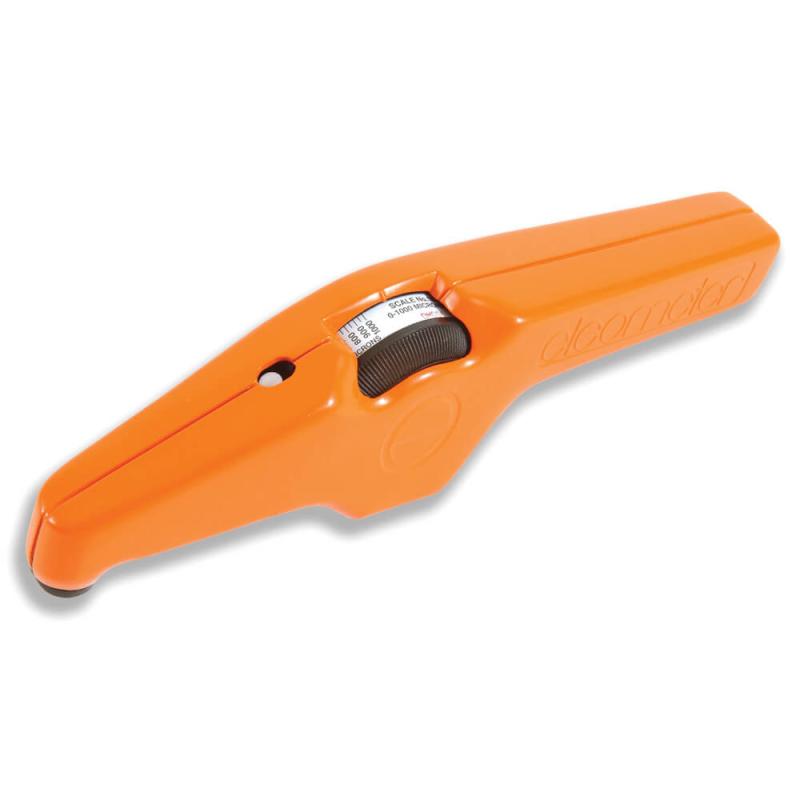

UK Elcometer 211 A211F--1M Mechanical Coating Thickness Gauge 0~1000μm

    The Elcometer 211, often referred to as the 'Banana Gauge', is a Type 1 Dry Film Thickness Gauge designed for use in environments where electronic instrumentation is difficult to use, such as in flammable air produced by oil and gas, as well as for underwater coating inspections.

    It is one of the world's most popular mechanical measuring instruments.

• It is factory calibrated and can also be adjusted by the user

• Diaphragms are supplied for on-site calibration

• Suitable for measuring cold surfaces and underwater use

• Small, portable, and 5% accuracy

• "V" groove base for pipe inspection

• The Elcometer 211 is available in both metric and imperial versions and measures coating thicknesses up to 6mm (250 mils).

    Standard:

    AS 2331.1.3, AS 3894.3-A, ASTM G 12, ASTM B 499, AS/NZS 1580.108.1, BS 5411-11, BS 3900-C5-6A, DIN 50981, ISO 2178,
ISO 2808-6A, ISO 2808-7A, JIS K 5600-1-7, NF T 30-124, SSPC-PA2

Elcometer 211 main unit x1, calibrated diaphragm sleeve x1, carrying bag x1, neck rope and operation manual x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
