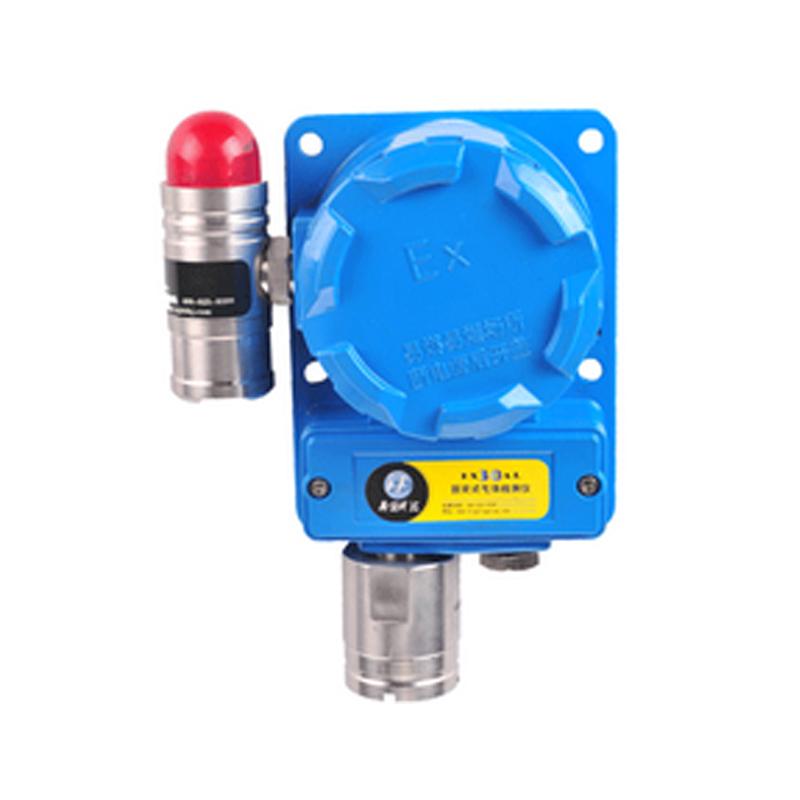

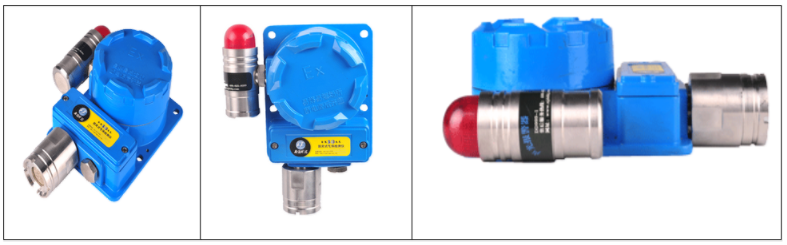

DINGDING DX30B-H2 Hydrogen Gas Detector 0-1000ppm
DINGDING DX30B-H2 Hydrogen Gas Detector is a fixed hydrogen Detector with a range of 0-1000ppm and an accuracy ＜ +/- 5%. DX30B-H2 has an alarm light and is suitable for urban gas, petroleum, chemical, steel and other industries.
DINGDING
DX30B-H2
-
GUOYUGRA GY/VGD-200-4M-G (H2/F2/O2/EX) On-line four-in-one Gas Detector for pharmaceutical plants
$ 1023.00 -
Empaer AATL-CH4 (Pump Suction) Pathfinder Series Fixed Methane Detector
$ 673.00 -
Baoshian BH-90-H2S Portable Gas Detector Hydrogen sulfide concentration 0~100ppm
$ 141.00 -
GUOYUGRA GY/VGD-200-R407a-G Refrigerant, refrigerant Detector 0-1000ppm
$ 1199.00 -
Empaer AATL-H2 (sound and light alarm) Pathfinder series stationary hydrogen Detector
$ 330.00
Features
The fixed hydrogen detection transmitter (probe) adopts a professional imported sensor, which has stable performance, sensitivity and reliability, and good toxicity. It can be divided into display or non-display, explosion-proof or non-explosion-proof, diffusion or pumping. This transmitter is characterized by maximum flexibility, excellent performance and low installation costs. It is used in various toxic gas leakage places, such as: city gas, petroleum, chemical industry, steel, special industrial plants and other fields.
peculiarity
Professional microprocessor technology, good stability, strong interference ability
Three-wire 4-20mA analog output and 1 SPDT relay output
RS485 output to save transmission cables (optional)
High-low concentration light alarm, and the alarm concentration can be adjusted
Non-explosion-proof occasions can be selected high-power sound alarm
Explosion-proof 10-30V DC power supply
The response speed is fast and the measurement accuracy is high
Sensor: Electrochemical sensor is used for low maintenance costs
Detection gas: Hydrogen in air (H2)
DINGDING DX30B-H2 Gas DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detect gas | H2 |
| Range | 0~1000ppm |
| detection Accuracy | ＜± 5%F.S |
| resolution | 1ppm |
| Response time | ≤60s |
| Sensors Life | 24 months |
| Sensors principle | electrochemistry |
| Power Supply | Explosion-proof 10-30V DC Power Supply |
| Sampling method | diffusion |
| Operating Mode | Long-term continuous work |
| Output signal | 3-Wire 4-20mA analog output, RS485 output (optional) |
| Alarm mode | Sound, light. |
| transmission distance | ≥ 1000 meters |
| Connectivity | G1/2 male thread explosion-proof hose |
| structural material | die casting aluminum |
| Protection level | IP65 |
| Operating temperature | -20~50℃ |
| Environmental humidity | 0~90%RH |
| Low alarm point | 20 |
| High alarm point | 50ppm |
DINGDING DX30B-H2 Gas Detector Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
