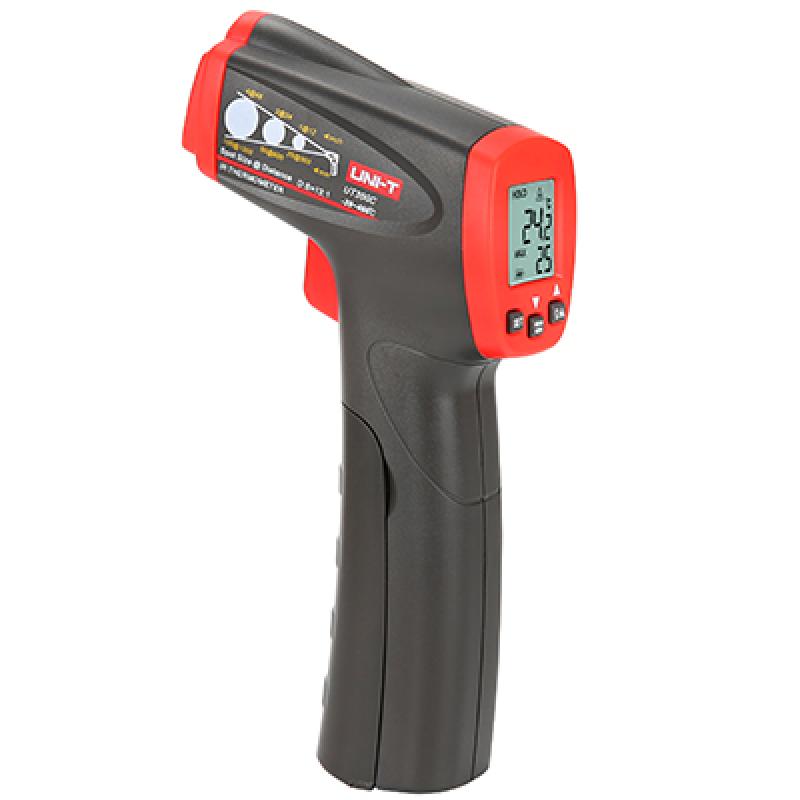

UNI-T UT300C Non-contact Infrared Thermometer -18~ 400 ℃

The UT300 series infrared thermometer is lightweight, small in size, easy to carry around, and ergonomic; And the laser indicator can be easily aimed at the target, which is convenient, fast and safe, and is a satisfactory non-contact measurement tool.

Electronics application: By scanning all field electronics: circuit breakers, transformers, fuses, switches, buses, and switchboards to find hot spots.

It can be applied to the HVAC field to detect the temperature of the supply/return air outlet; Check the indoor air temperature to ensure that the air conditioner is working properly. It is also used to measure the temperature of moving, charged and hard-to-reach objects, which can avoid cross-contamination and object damage in food, chemical raw materials and *product measurement.

characteristic

• Single-point laser targeting

• White backlight

• Measurement synchronization displays the maximum or minimum value

• Celsius/Fahrenheit selection

• Dynamic monitoring of battery level

• Low Voltage indication

How the thermometer works

Infrared thermometers measure the surface temperature of opaque objects. Thermometer lightThe device is capable of sensing the infrared energy concentrated on the Detector. Then the thermometerThe electronics convert the information into a temperature reading that is displayed on the display. Laser onlyIt is used to aim at the target object.

Instructions

When measuring the temperature, aim the thermometer at the measured target and pull the trigger, in real timeThe measurement result is displayed, and the reading is maintained when the trigger is released; If there is no test for 8 consecutive secondsWhen activity is measured, the thermometer automatically turns off. Be sure to consider the distance and spot sizethan well as the field of view. Lasers are only used to aim at the target object.

CE marked

The thermometer meets the following standards:

•  EN61326：2006

• EN60825-1:1994+A2:2001+A1:2002 laser safety standards

whole machine X1, battery X1, blister X1, manual X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
