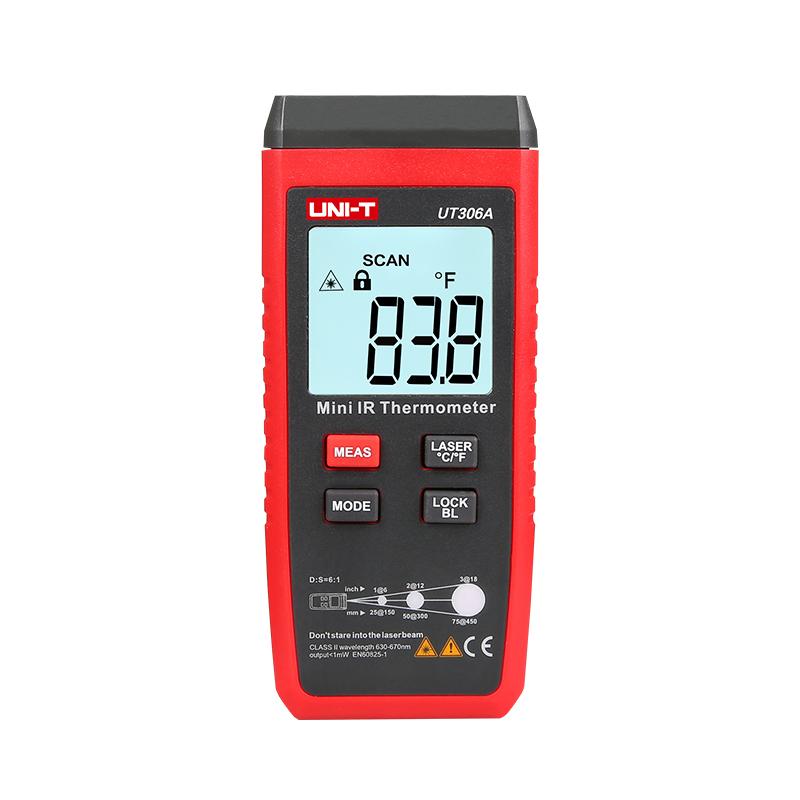

UT306A Mini Non-Contact Infrared Thermometer is a miniature hand-held non-contact infrared thermometer that can quickly and accurately determine the surface temperature of a target surface by measuring its infrared energy radiation. The product adopts a built-in high-precision ADC conversion chip, a high-precision chopper autostable zero operational amplifier MCU design, as well as a good thermal conduction and electromagnetic compatibility design, so as to ensure the measurement accuracy of the thermometer in different temperature environments, and also greatly improve the anti-interference ability of the thermometer.
Product Features & Features
1) Single-point laser targeting

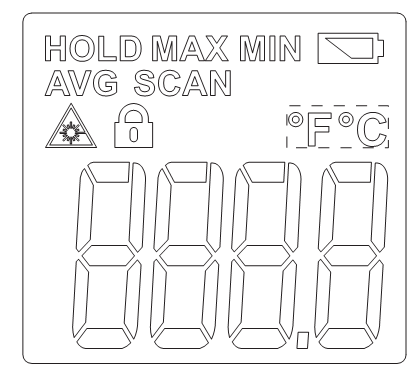

2) White backlight display
3) Max/Minimum/Average Measurement
4) Lock the measurement
5) Data Retention
6) Automatic power off
7) Low power indication
8) Unit conversion °C/°F
9) Power-down memory function
UNI-T UT306A Mini non-contact thermometerSpecifications
| LIST | VALUE |
|---|---|
| Temperature Measurement Range | -35~300℃ |
| Accuracy | ±2% |
| temperature coefficient | 0.1 ℃/℃ (0.1 ° F/° F) or +/- 0.1% of the reading per degree, whichever is greater. |
| Repeatability | ±1℃|±1% |
| object distance ratio | 6:1 |
| emissivity | 0.95 |
| Response time | 250ms |
| Response wavelength | 8~14μm |
| Operating temperature | 0~50℃ |
| Relative Humidity | < Rh90% (non-condensing) |
| Storage temperature | -20~60℃ |
| Power Supply | 3 AAA zinc-manganese batteries |
| Dimension | 120*53*28mm |
| Weight | 120g |
| drop test | 1m |
UNI-T UT306A Mini non-contact thermometer Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
