The UT320D Dual Channel Thermocouple Thermometer is a miniature K/J dual-purpose Thermocouple Thermometer. The product adopts a high-level ADC operation chip to sample, amplify and convert the thermocouple temperature and Voltage signal, which ensures that the product has a wide temperature measurement range and high measurement accuracy, and can be arbitrarily matched with K/J thermocouple probes.
Product Features & Features
1) It can withstand the impact of a 1 meter drop
2) Sampling rate: 4 times/sec
3) Measure the temperature difference: T1-T2
4) Max/Min values, data hold
5) Backlight function
6) High measurement accuracy and wide range of temperature measurement
7) Auto-shutdown mode selection, auto-shutdown can be operated without buttons for 5 minutes
8) Thermocouple mode selection, can be arbitrarily matched with K/J thermocouple probe
9) The instrument conforms to CE European Community standards

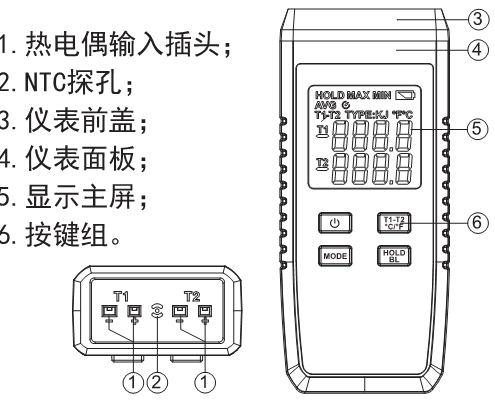

Product structure diagram

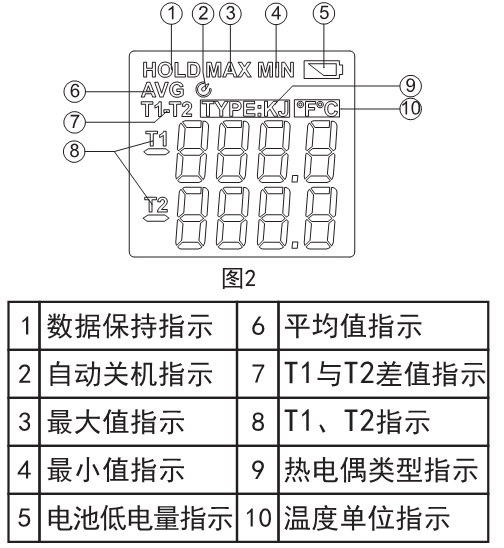

On-screen display

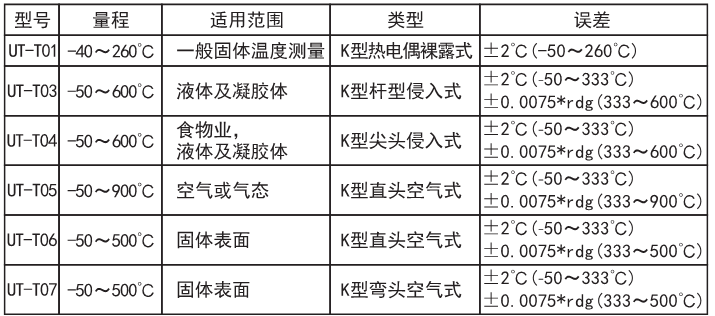

Type K thermocouple specifications
UNI-T UT320D ThermometerSpecifications
| LIST | VALUE |
|---|---|
| Temperature measurement (K) | -50~1300℃ |
| Basic Accuracy | ±(0.5%＋1) |
| Temperature measurement (J) | -50~1200℃ |
| Basic Accuracy | ±(0.5%＋1) |
| Automatic shutdown | Yes. |
| Low Voltage display | Yes. |
| value retention | Yes. |
| Temperature measurement (T1-T2) | Yes. |
| unit conversion | ℃/℉ |
| MAX Maximum/MIN Minimum/Average | Yes. |
| mode selection | K/J |
| Backlight | Yes. |
| Environmental temperature | 0~40℃ |
| Relative Humidity | ≤80%RH |
| Drop resistance test | 1 meter |
| Power Supply | 3 AAA zinc-manganese batteries |
| Display | 37.4*36.4mm |
| Body Color | Red + gray |
| Airframe Weight | 0.06kg |
| Dimension | 120*53*28mm |
UNI-T UT320D Thermometer Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
