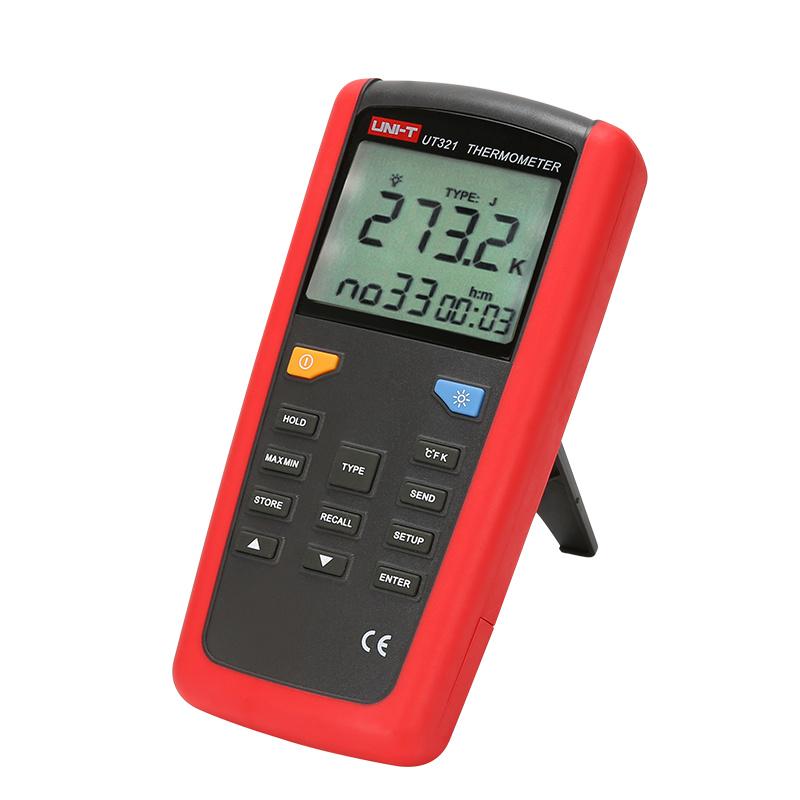

UNI-T UNI-T UT321 Contact Thermometer-200~1372 ℃ Single Channel T1

The UT320 series contact thermometer uses a thermocouple as a temperature probe to provide fast and high-precision temperature measurement. This series of instrument models has single and dual input temperature measurement options; With powerful data logging function and analysis software, users can adjust the recording interval, real-time clock, more accurate positioning of event moments, and cooperate with PC analysis software to generate/draw professional-level documents and charts for in-depth analysis of temperature measurements. A variety of temperature measurement methods and high accuracy help you easily cope with various temperature measurement work.

UT320 thermometer comparison

UT320 series digital thermometer is used with a thermocouple as a temperature probeA digital thermometer with a microprocessor.

UT321 Thermometer: Single input (T1) for type K, J, T and E thermocouple probes.

UT322 thermometer: dual input (T1, T2) for type K, J, T and E thermocouple probes.

UT323 thermometer: single input (T1), suitable for K, J, T, E, R, S, and N thermoelectriceven probes; It has the functions of over-limit alarm, over-limit signal output and user self-calibration.

UT325 thermometer: dual input (T1, T2), suitable for K, J, T, E, R, S, and N typesthermocouple probes; It has the functions of over-limit alarm, over-limit signal output and user self-calibration.

Features

Choice of Celsius (°C), Fahrenheit (°F) or Kelvin (K) temperature displays

There are seven types of thermocouples to choose from: K, J, T, E

MAX/MIN/AVG: with maximum, minimum, and average measurement modes

It has 100 sets of data storage/readback function, and can set 00-59 second intervals to automatically record measurement data

USB communication function, equipped with PC interface and analysis software; Quickly store, record, and analyze temperature measurement data

The room temperature deviation compensation function can compensate for the thermocouple temperature measurement error through user settings, so as to improve the overall accuracy as much as possible

Power Supply anti-interference setting, system time setting function

Data hold, LCD backlight function

Automatic shutdown sleep function (can be set for 5~60 minutes)

The meters comply with CE European Union standards

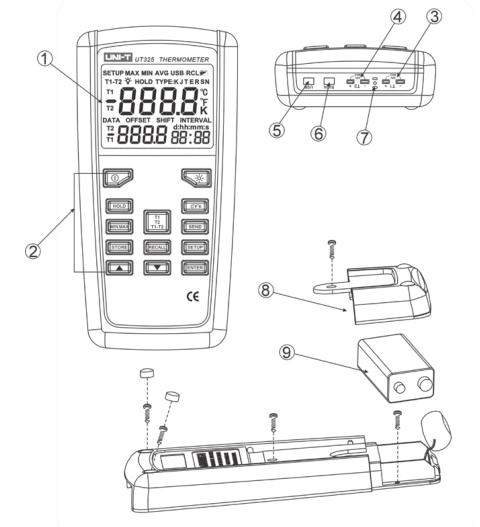

Product Structure

1. Display the screen

2. Button group (UT321/UT323 key is TYPE)

3. Thermocouple T1 input

4. Thermocouple T2 input (UT322 and UT325 only)

5. USB interface

6. Out-of-limit signal output port (only UT323 and UT325 are available)

7、NTC

8. a battery cover

9. 6F22 9V battery

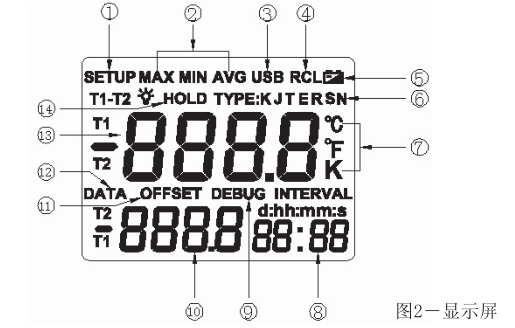

1. Flashing display, in setting mode.

2. The displayed value on the main screen is maximum/minimum/average.

3. Data transfer with PC.

4. Flashing display, in the state of reading and storing data.

5. Battery low battery symbol. It is displayed when the battery is operating at a Voltage of about 5V.

6. Thermocouple type.

7. Temperature unit.

8. a secondary display screen 2.

9. Flashing display, in calibration mode. The displayed readings are fixed.

10. a secondary display screen 1.

11. The measured value includes a deviation value.

12. Flashing display, in the state of reading recording.

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
