 | Host body Fusheng effective air-cooled reciprocating main engine body is adopted; The large body and low speed design result in more reliable operation and longer service life. |
 | Air filter The use of special paper and reasonable geometric folding, long service life. It has a good filtration accuracy for dust in the air, ensures the air quality entering the compression chamber, and significantly prolongs the life of the main engine. |
 | Motor It adopts a good motor, the protection grade is IP54, the insulation grade is F, the grease lubrication is effective. It can also be designed according to the special requirements of users. |
 | Body shock absorber It effectively reduces the vibration of the body during operation, and avoids the propagation of low-frequency noise through solid resonance. Together with the fully enclosed soundproof cover with sound-absorbing cotton, it has a sound-dampening effect. |

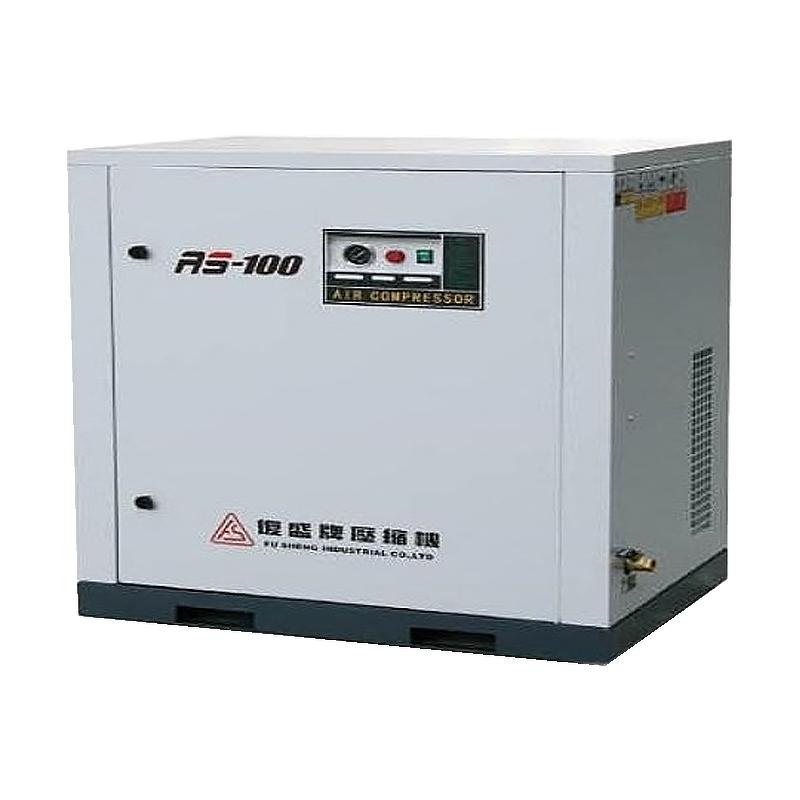

Silent appearance of AS75-100 micro-oil piston
FuSheng AS-75 Slight oil silent piston machineSpecifications
| LIST | VALUE |
|---|---|
| type | Slight oil silent piston machine |
| compression method | reciprocating |
| exhaust pressure | 0.8Mpa |
| Displacement | 670L/min |
| Body model | VA-100 |
| Bore × number of bars | Φ100mm*2 |
| Rotation speed | 950rpm |
| Air interface | 3/4'’ |
| Dimension | 960*830*1165mm |
| Weight | 310Kg |
| Input Power | 5.5kW |
FuSheng AS-75 Slight oil silent piston machine Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
