FuSheng AS-100 Slight oil silent piston machineOverview
Specifications
Comments
FAQs

AS-100

Slight oil silent piston machine

	Host body Fusheng effective air-cooled reciprocating main engine body is adopted; The large body and low speed design result in more reliable operation and longer service life.
	Air filter The use of special paper and reasonable geometric folding, long service life. It has a good filtration accuracy for dust in the air, ensures the air quality entering the compression chamber, and significantly prolongs the life of the main engine.
	Motor It adopts a good motor, the protection grade is IP54, the insulation grade is F, the grease lubrication is effective. It can also be designed according to the special requirements of users.
	Body shock absorber It effectively reduces the vibration of the body during operation, and avoids the propagation of low-frequency noise through solid resonance. Together with the fully enclosed soundproof cover with sound-absorbing cotton, it has a sound-dampening effect.

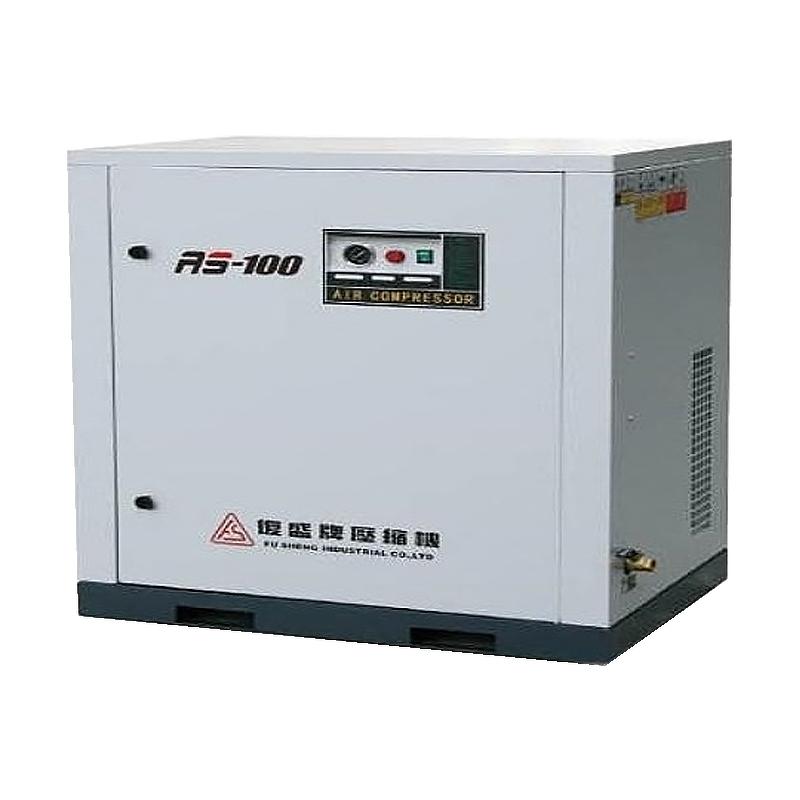

Silent appearance of AS75-100 micro-oil piston

FuSheng AS-100 Slight oil silent piston machineSpecifications

LIST	VALUE
type	Slight oil silent piston machine
compression method	reciprocating
exhaust pressure	0.8Mpa
Displacement	1000L/min
Body model	TA-100
Bore × number of bars	Φ100mm*3
Rotation speed	900rpm
Air interface	3/4'’

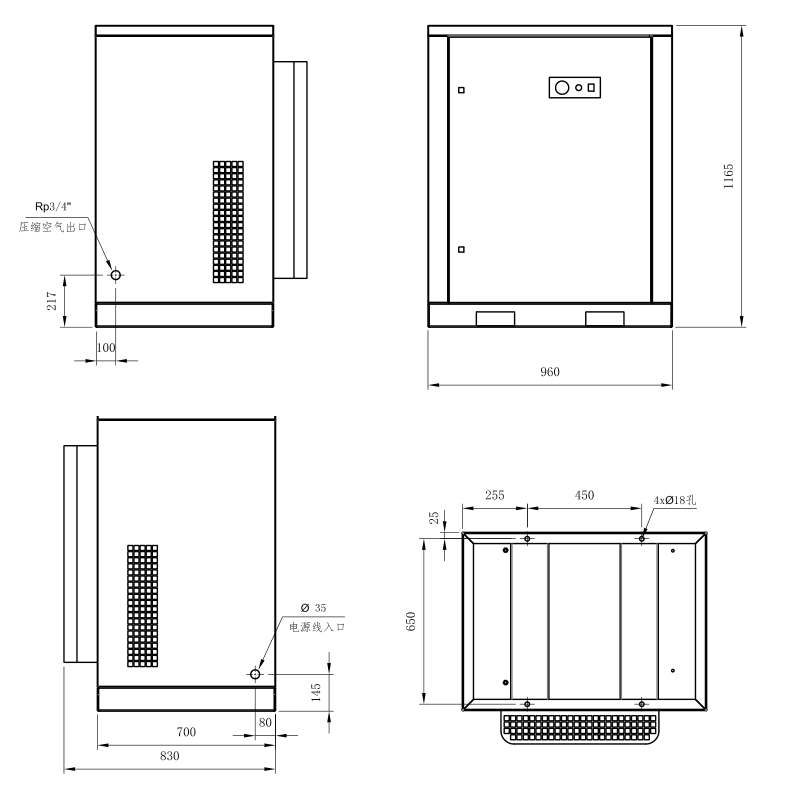

Dimension	9608301165mm
Weight	395Kg
Input Power	7.5kW

FuSheng AS-100 Slight oil silent piston machine Packing list

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
