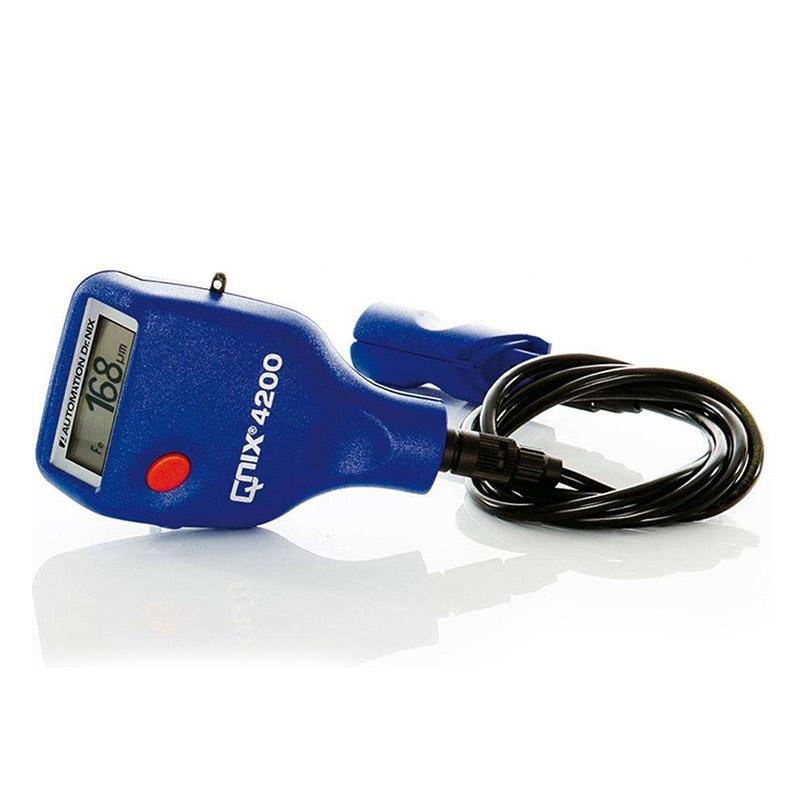

        Qnix QNix4200P Coating Thickness Gauge

        Germany Nix QNix4200P split magnetic platings Thickness Gauge 0-3000um

        Germany QNix4200P magnetic platings Thickness Gauge is a split strip iron-based Film Thickness Gauge, used to test the nonmagnetic coating thickness on magnetic metal substrates, QNix4200P range 0-3000um, QNix4200P platings Thickness Gauge adopts wear-resistant ruby probe, long life.

        Brand
        SKU: NB016666
        Germany Qnix
        Service
        VS
        QnixLOGO

        Qnix shopSE

        Information
        Datasheet Manual
        What else did others buy
        Genuinegoods

        • Qnix QNix4200P Coating Thickness GaugeOverview

        • Specifications
        • Comments
        • FAQs
        QNix4200P
        Coating Thickness Gauge

        Introduction

        Germany's QNix4200 magnetic coating Thickness Gauge is widely used in the fields of coatings and automotive coatings. It is a standard version of the all-in-one coating Thickness Gauge that uses an iron-based probe and has a measurement range of 0~3000μm. The QNix4200 magnetic coating Thickness Gauge has a minimum measurement diameter of 25mm and has a temperature compensation function.

        German QNix4200 magnetic coating Thickness Gauge display diagram

        product advantages

        1. Simple and fast measurement

        2. No calibration required

        3. Automatic switch on and off

        4. Large range FE: 0-5000um NFE: 0-3000um

        5. Dual-purpose probe, high cost performance

        6. Hall sensor makes measurement more stable

        7. Sound synchronization during measurement

        8. Ruby wear-resistant head, long life

        9. Backlight LED display for clearer readings

        10. Automatically identify the measurement substrate

        11. Split probe to meet different measurement environments

        plan

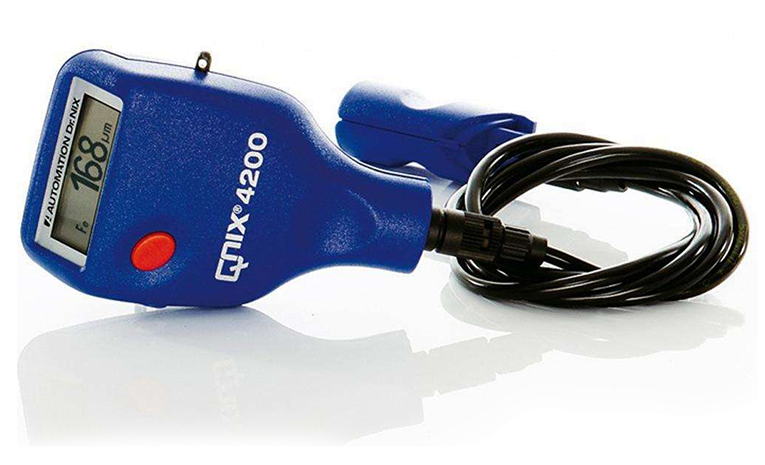

        German QNix4200 split magnetic coating Thickness Gauge

        German NIX QNIX full range of Thickness Gauges

        model4200/4200P4500/4500P1200150075008500
        matrixFeFe/NFeFeFe/NFeFe, NFe, Fe/NFeFe/NFe
        Probe formOne body, two bodiesOne bodyOne body, two bodiesWired/wireless split
        Measuring range

        0-3000μm​​

        0-5000um

        Fe:0-3000μm

        0-5000um

        NFe: 0-3000μm

        		0-2000μm0-5000μm

        0-2000μm

        0-5000μm

        (optional)

        measurement accuracy0-50μm: ≤±1μm; 50-1000μm: ≤±1.5%; 1000-2000μm: ≤±2%; 2000-5000μm: ≤±3%
        Display accuracy0.1μm0-99μm: 0.1μm; 100μm-999um: 1um; above 999um, 0.01mm0.1um/0.01um (optional)
        Operating temperature-10 - +60℃
        Temperature compensation0-50℃
        storage-1500M typeModel 7500MType 8500M
        3900 measured values, 999 data sets9999 readings, 100 data sets
        Statistics function-Average, maximum, minimum, standard deviation
        Over limit alarm-Upper and lower limits
        small matrix10mm×10mm
        small curvatureConvex and concave radius: 3mm/25mmConvex radius: 5mm, concave radius: 25mm
        thin matrixFe: 0.2mm, NFe: 0.05mm
        power supply2 AA batteries1 9V alkaline battery
        		2 AA batteries
        weight110g130g150g130g
        size110×60×27mm166×64×34mm110×60×24mm124mm×67mm×33mm


        VS

        Qnix QNix4200P Coating Thickness GaugeSpecifications

        LIST VALUE
        Measurement principle Magnetic Induction
        Measurement range 0~3000μm
        margin of error ±3%
        Resolution 0.1μm|1μm
        Minimum measurement surface 25mm
        Minimum radius of curvature Convex 5mm; Concave 25mm
        thinnest substrate 0.2mm(F)
        probe Split probe
        Probe material ruby
        Calibrated Certificate Yes.
        Calibrated mode No need to calibrate
        Unit display μm
        Interface USB
        Data storage Temperature -10~60 ℃ (14~ 140 ° F)
        Power Supply 2 AA batteries
        Standards DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091
        Language German, English
        Display screen LCD screen
        Operating temperature 0~50℃
        Machine Weight 105g
        Machine size 100*60*27mm

        Qnix QNix4200P Coating Thickness Gauge Packing list

        Host X1, probe X1, user manual X1, plastic outer box X1, Calibration plate X1, 1.5V battery X2, test certificate X1

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

        FAQ

        [Q]
        QNix4200 Coating thickness gauge with p and without p what is the difference?
        [A]
        Hello, with p is a split type, without p is an integrated type.
        [Q]
        Coating thickness gauge can be applied to ISO2178?
        [A]
        OK
        [Q]
        What is the average value of the Nix 4200 thickness gauge?
        [A]
        Hello, the average shown in the measurement is the average of the last three readings, including this measurement.
        [Q]
        Excuse me QNix4200P thickness gauge can continuous measurement?
        [A]
        Hello, no, Nix's QNix4200 Coating thickness gauge can only be measured once, pick up the instrument after each measurement, leave the measured object more than 10cm, and then perform the next measurement.
