NBCHAO.Com SN: NB016667
Qnix QNix4200P5 Coating Thickness Gauge

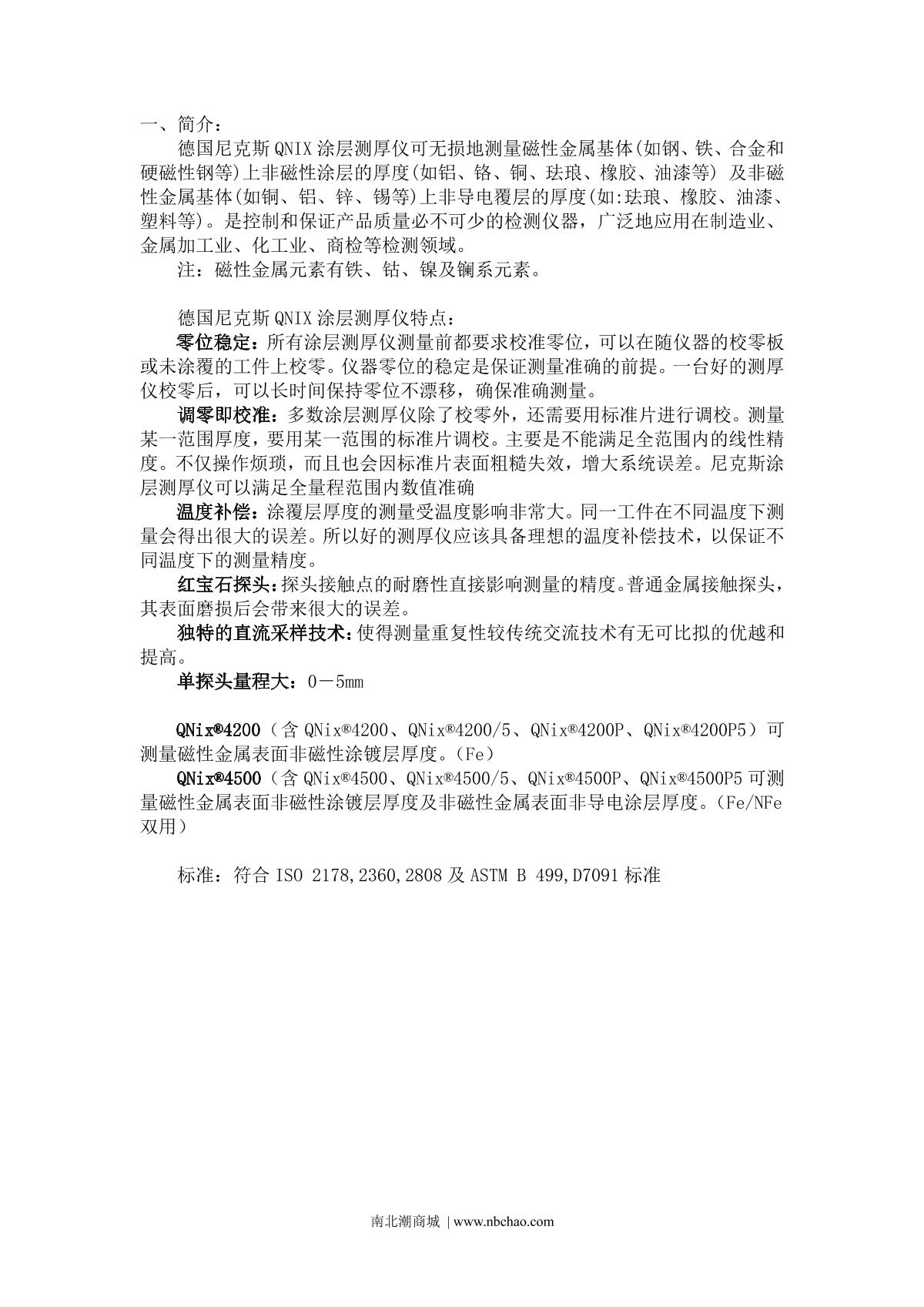

The range of the German Nix QNix4200P5 is 0-5000um, which is a split Film Thickness Gauge, the principle of magnetic Induction thickness measurement, the QNix4200P/5 magnetic Film Thickness Gauge adopts Hall Sensors, and the measurement Stability is good.

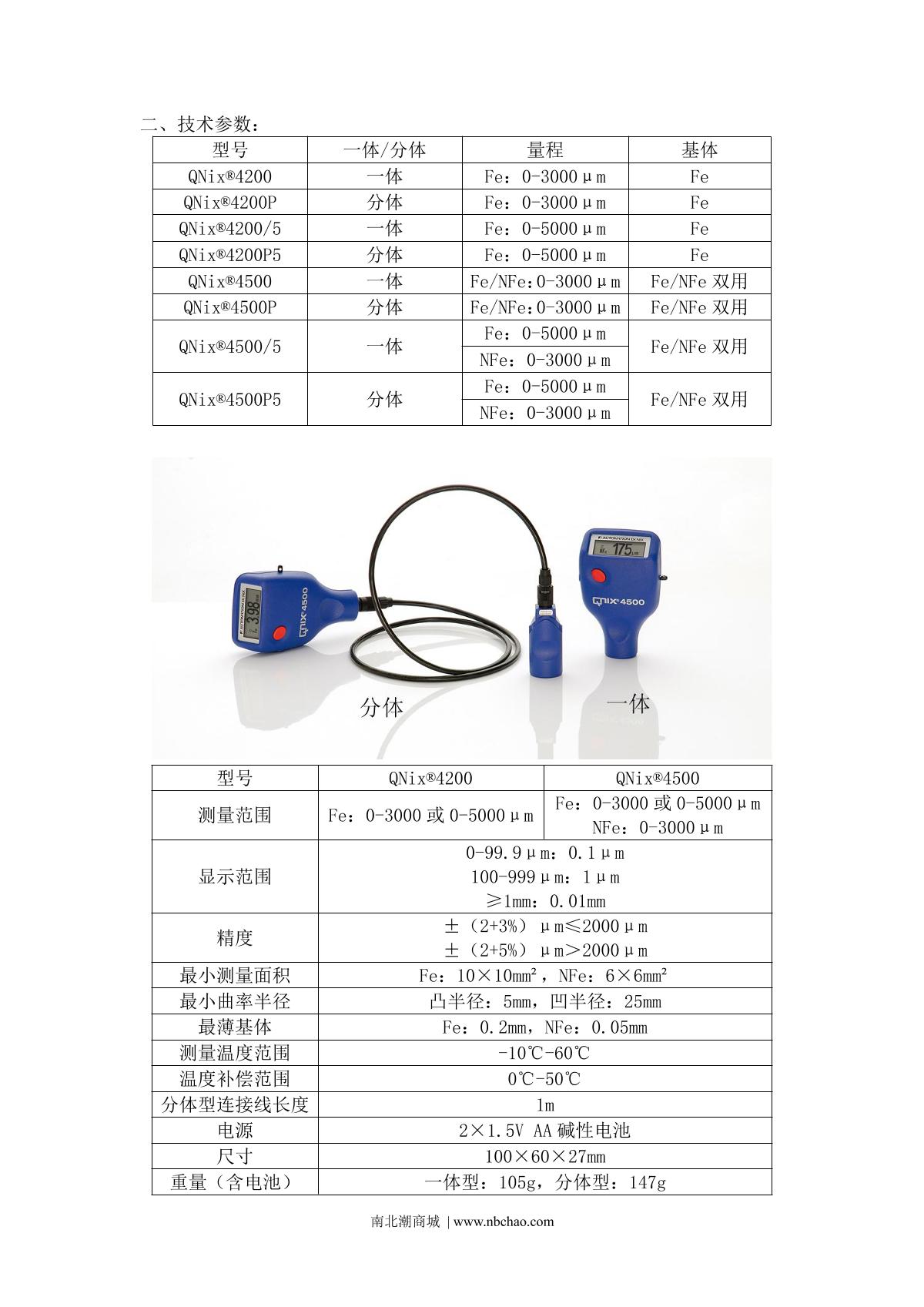

Qnix QNix4200P5 Coating Thickness GaugeKey Spec.
Measurement principle
Magnetic Induction
Measurement range
0~5000μm
margin of error
±3%

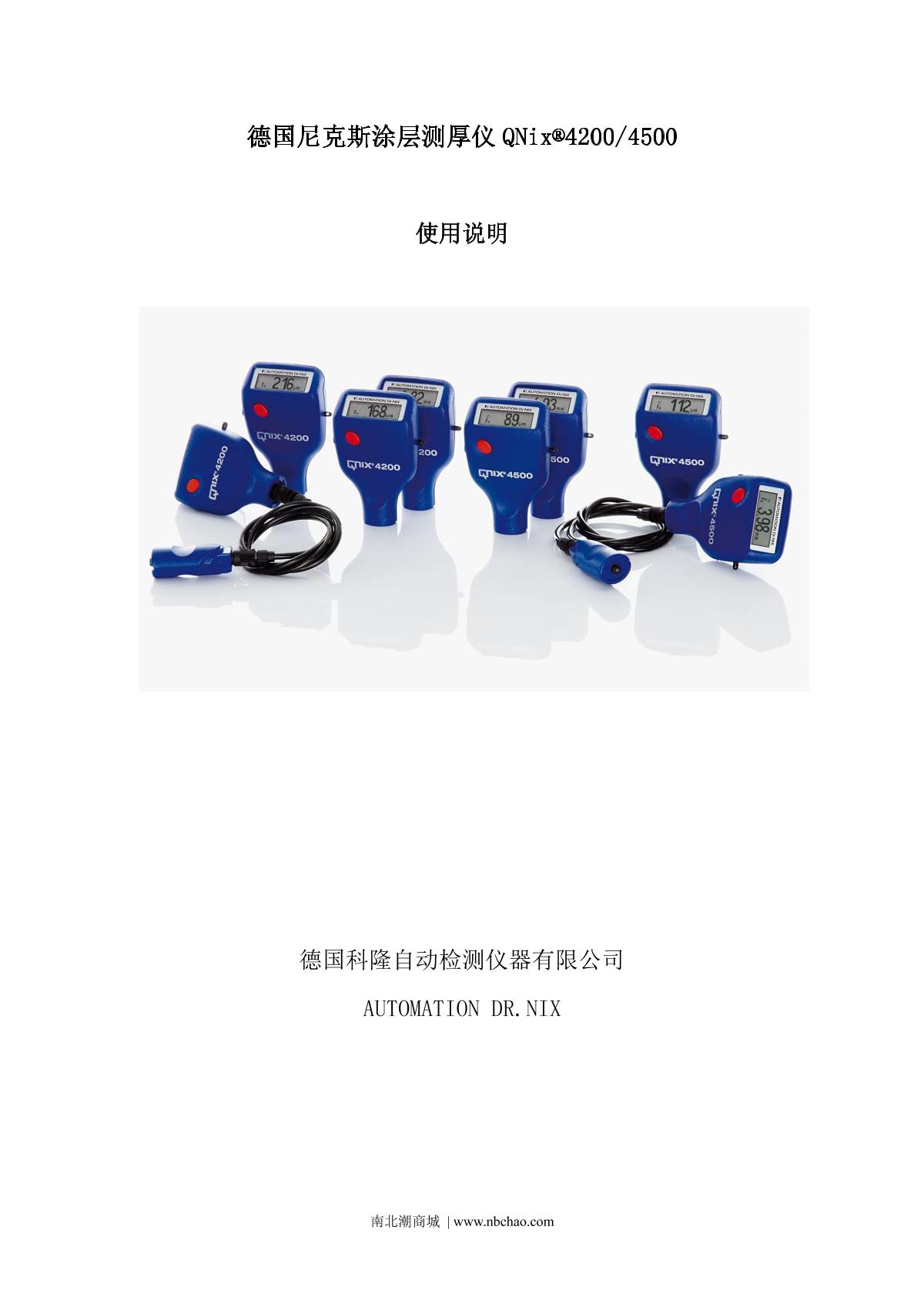

QNix4200P5 Coating Thickness Gauge
Details
3 page unread, continue reading?
This manual is collected and sorted by the NBCLab, and does not guarantee the timeliness and accuracy. It is only for reference.
Continue to read
