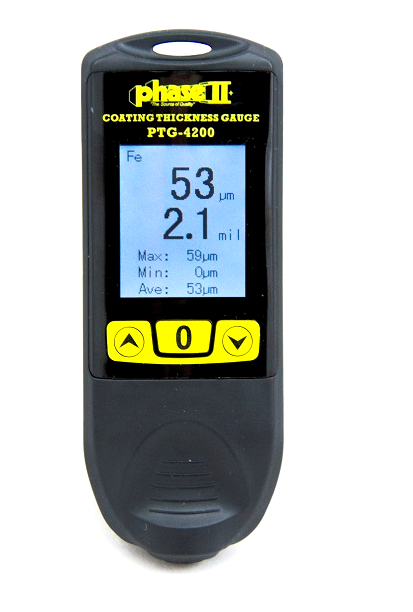

PhaseII PTG-4200 Color screen Coating Thickness Gauge
PhaseII
PTG-4200
-
DONGRU DR230 Coating Thickness Gauge can automatically identify ferrous or non-ferrous substrate Film Thickness Gauge
$ 287.00 -
IWAVE WH-81 Coating Thickness Gauge magnetic thickness measurement method 0~1250μm
$ 165.00 -
Defelsko PosiTector 6000 NS1 galvanized Thickness Gauge, non-ferrous metal (aluminum, copper) substrate nonconductive coating
$ 1053.00 -
German EPK F50 Thickness Gauge probe, thickness measurement range 0~50000um
$ 4350.00 -
CHINA CTG-802-1500FNV split iron-aluminum dual-use Coating Thickness Gauge (standard/large V type)
$ 248.00

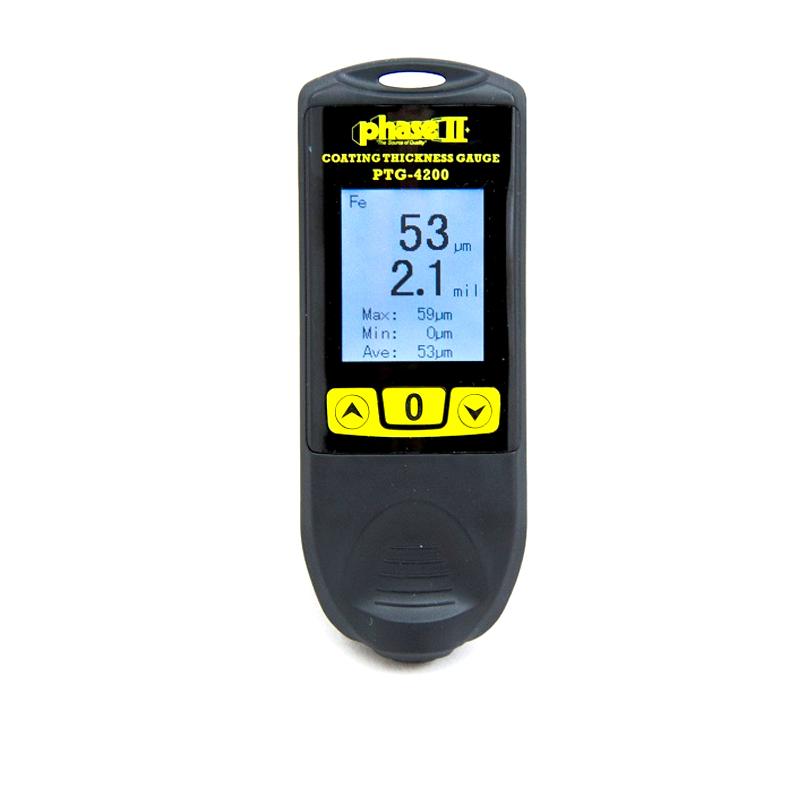

The Phase II Coating Thickness Gauge PTG-4200 can measure coatings using two different measuring principles: electromagnetic induction and eddy current.
Non-destructive measurement, accurate and reliable.
In addition, this new coating Thickness Gauge uses a one-piece built-in probe to measure the thickness of a non-magnetic coating on a magnetic metal body or a non-conductive coating on a non-magnetic metal substrate.
The PTG-4200 can be used in a wide range of industries, including automotive, manufacturing, general mechanical engineering, commodity inspection, etc.
PhaseII PTG-4200 Coating Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement principle | Magnetic Induction + eddy Current |
| Measurement range | 0~1250μm |
| margin of error | ±3% |
| resolution | 1μm |
| Minimum measurement surface | 5×5mm |
| Minimum radius of curvature | Convex: 3mm; Concave: 30mm |
| thinnest substrate | Iron base: 0.5mm; Aluminum base: 50μm |
| Probe contact temperature | 150 ℃ (contact time up to 2 seconds) |
| Measurement mode | Single measurement, continuous measurement |
| statistical function | MAX Maximum, MIN Minimum, Average |
| Power Supply | 2 AAA batteries |
| Display screen | Dot matrix color adjustable LCD display/180 degree flip display |
| Weight | 90G (without battery) |
| Dimension | 119*45*27mm |
PhaseII PTG-4200 Coating Thickness Gauge Packing list
Host X1, standard substrate X2, calibrated test piece X4, suitcase X1, battery X1, operation manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
