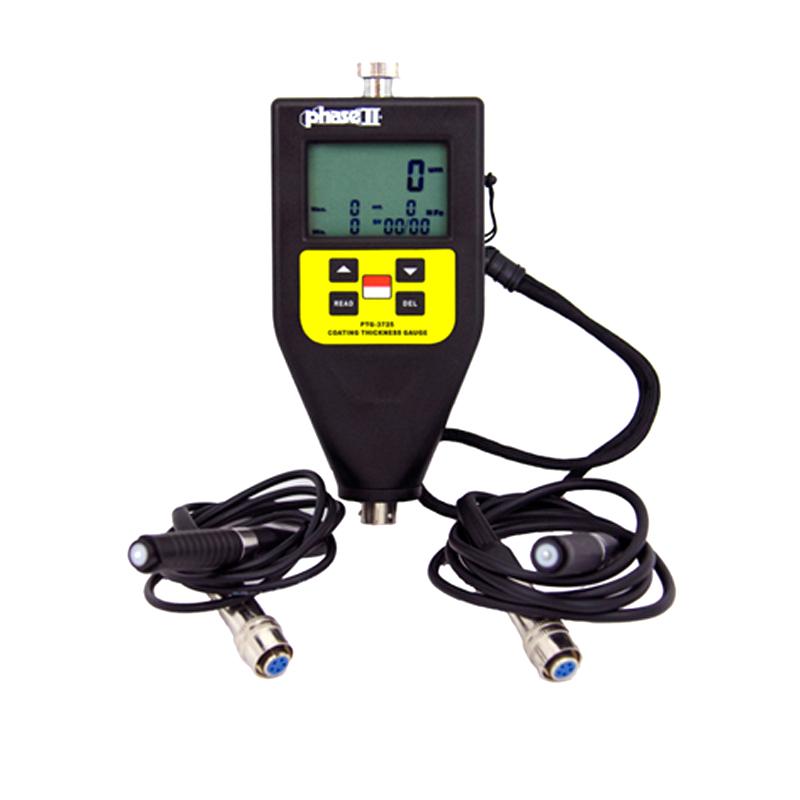

US Phase II PTG-3725 Coating Thickness Gauge split probe
US Phase II PTG-3725 Coating Thickness Gauge/spray paint Thickness Gauge, with line probe Thickness Gauge using one of the external probe measurement magnetic substrate, another external probe measurement nonmagnetic substrate.
PhaseII
PTG-3725
-
Defelsko PosiTest G Coating Thickness Gauge for Eletroplating, thin paint layer, steel phosphating film thickness measurement with certificate
$ 458.00 -
LANDTEK CM8825F high-precision Coating Thickness Gauge, integrated magnetic Induction Coating Thickness Gauge
$ 311.00 -
Defelsko PosiTector 6000 FKS3 Coating Thickness Gauge magnetic Induction thickness coating probe
$ 1653.00 -
Defelsko PosiTector 6000 NAS3 Coating Thickness Gauge Aluminum oxide film
$ 1769.00 -
Defelsko PosiTector 6000 F45S3 Film Thickness Gauge 45 ° micro probe
$ 1769.00

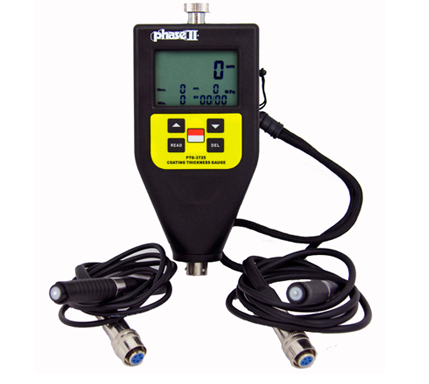

New! The Phase II PTG-3725 Coating Thickness Gauge/Paint Thickness Gauge is a professional Thickness Gauge that makes it easy to measure the thickness of non-magnetic coatings on magnetic substrates and the thickness of non-conductive layers on non-magnetic substrates.
The PTG-3725 Thickness Gauge uses one external probe to measure magnetic substrates and the other external probe to measure non-magnetic substrates.
The PTG-3725 uses eddy current and electromagnetic induction techniques
PTG-3725 has the following features: large screen display, backlight, large measurement range, super storage, browsing and data analysis functions, calculation of maximum and minimum values, average value, etc
The PTG-3725 Coating Thickness Gauge is used in a wide range of applications including manufacturing, general engineering, commodity inspection and automotive.
PhaseII PTG-3725 Spray paint Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement principle | Magnetic Induction + eddy Current |
| Measurement range | 0~1250µm |
| margin of error | ±3% |
| resolution | 0.1μm|1μm |
| Minimum measurement surface | Φ5mm |
| Minimum radius of curvature | Convex 3mm; Concave 30mm |
| thinnest substrate | 0.5mm(F)；50mm(N) |
| probe | Line probe |
| Power Supply | 2 * AAA Battery |
| system language | Chinese |
| Display screen | LCD screen |
| Dimension | 126*65*35mm |
| Minimum measurement surface | 5*5mm |
| Probe contact temperature | 150 ℃ (contact time up to 2 seconds) |
PhaseII PTG-3725 Spray paint Thickness Gauge Packing list
Host X1, base X2, calibrated test piece X4, suitcase X1, battery X1, instruction manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
