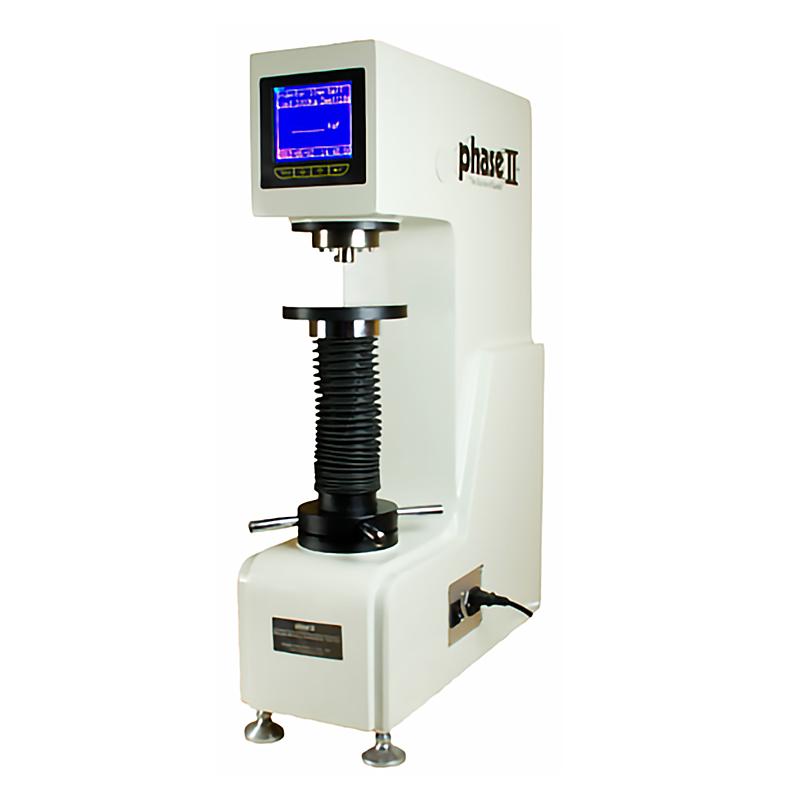

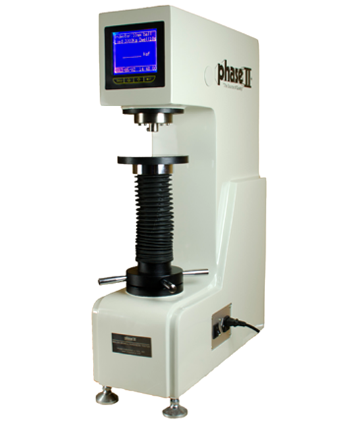

PhaseII 900-355 Digital display electronic Brinell Hardness Tester

Features

The PhaseII 900-355 digital electronic Brinell Hardness Tester adopts a precision mechanical structure and a microcomputer closed-loop control system, which eliminates the traditional weight loading and automatically and accurately controls the test force during the test

Direct digital readings

The indication value is stable and the accuracy is high

It can be used in laboratories, workshops, tool rooms, etc

Measuring range: 8-650HBW

Functional features

The load cell is used with the computer closed-loop control system, the traditional weight loading method is canceled, and the electric loading and unloading test force and microcomputer closed-loop control are used to automatically and accurately control the test force in the test process, with a control accuracy of 0.5%

The test process is fully automated, and the loading, holding and unloading of the test force are accurately controlled by the microcomputer, which is accurate and reliable

10 levels of force are available, and the selection and switching of force can be easily completed by pressing a button.

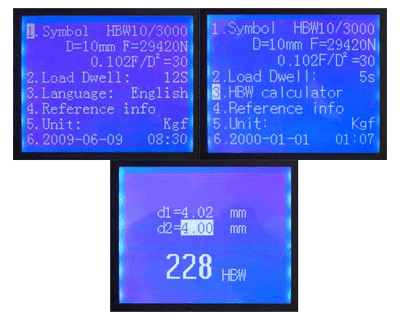

The high-brightness, large-screen LCD screen accurately sets and displays the test parameters, including test force, dwell time, indenter type, operation tips and other information

Due to the elimination of weights, the weight of the whole machine is reduced by 50% compared to ordinary Brinell Hardness Testers

The 0.102F/D2 ratio parameter is selected according to the material type and hardness range, so that the operator can perform the Brinell measurement standard more accurately

It is no longer necessary to manually move the weight, which greatly reduces the labor intensity of the operator, eliminates the potential safety hazards, and improves labor safety

A 20X reading microscope reads the indentation diameter

The special hardness calculator function automatically calculates the hardness value, eliminating the inconvenience of looking up the table and the defects that are easy to make mistakes

Optional

Blocks, indenters and block sets with NIST/ASTM calibration certificates

host X1, standard test block X2, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
