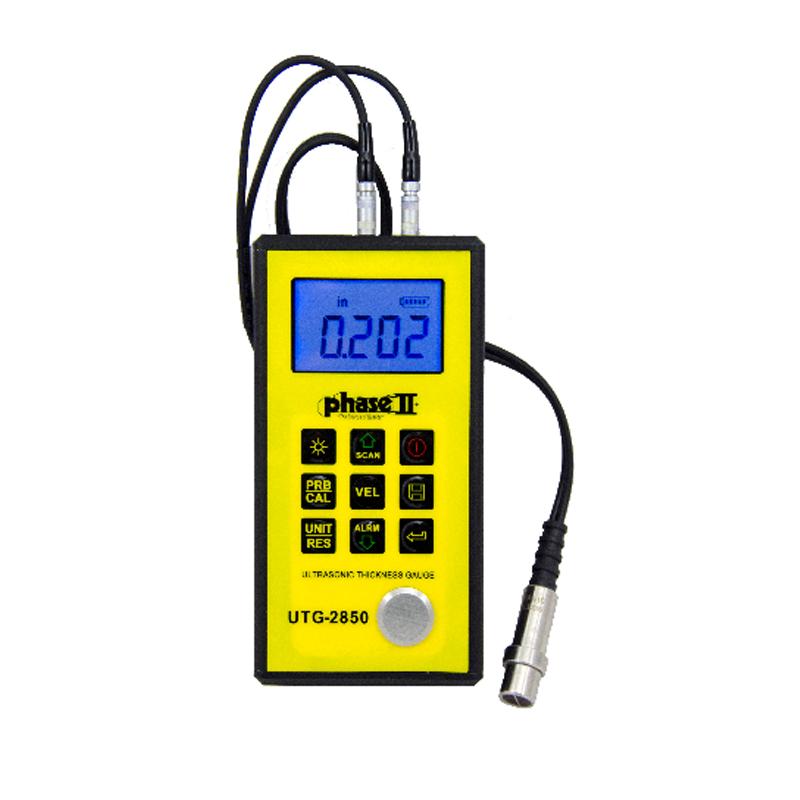

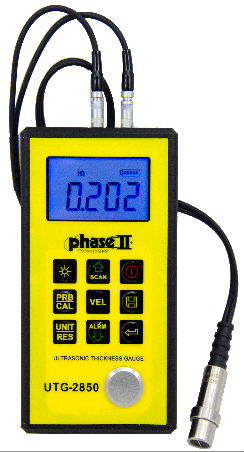

PhaseII UTG-2850 Metal Housing Ultrasonic Thickness Gauge
PhaseII metal shell Ultrasonic Thickness Gauge UTG-2850 thickness measurement range 0.8-300 mm, standard 5MHz Frequency probe, with Data storage function, UTG-2850 Ultrasonic Thickness Gauge uses LCD LCD display, working time up to 100h.
PhaseII-
TSINGTAO TOKY UM6700 Portable Ultrasonic Thickness Gauge 1.0~300mm
$ 209.00 -
Metal Ultrasonic Film thickness meter DC-3020C Deguang Electronic Glass, steel pipe and other Film thickness measurement
$ 1562.00 -
DONGRU DR89S Single Crystal Ultrasonic Thickness Gauge Standard ZW5P Probe
$ 1716.00 -
German EPK MiniTest 440 Ultrasonic Thickness Gauge Penetration coating thickness measurement
$ 2042.00 -
AMITTARI AT-140A Ultrasonic Thickness Gauge 0.1mm resolution Probe diameter φ 8mm, 5HZ
$ 330.00
The new durable ultrasonic Thickness Gauge features a high-end product with an extruded aluminum housing that is suitable for harsh Operating Environments such as mining equipment, pipelines, bridge towers, and more. This versatile ultrasonic Thickness Gauge features basic measurements, scanning, adjustable sound velocity, extended memory, and USB output. This dynamic ultrasonic Thickness Gauge measures the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass, and any other ultrasonic conductor parallel to the upper and lower surfaces.

With a known thickness or speed of sound, the UTG-2850 can accurately display imperial or metric readings with simple calibration.
PhaseII UTG-2850 Ultrasonic Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 0.8-300mm |
| Probe Frequency | 5MHz |
| measurement error | ±0.5% |
| Display resolution | 0.1/0.01Mm (optional) |
| Storage Capacity | 20 groups (100 Measured values per group) |
| Speed of sound | 1000~9999m/s |
| Display | 4.5-Bit LCD display with backlight |
| Interface | USB |
| Power Supply | AA alkaline batteries (2 pcs) |
| power consumption | Operating Voltage less than 3V |
| Operating Time | 100h |
| Host size | 150*74*33mm |
| Weight | 245g |
PhaseII UTG-2850 Ultrasonic Thickness Gauge Packing list
machine X1, probe X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
