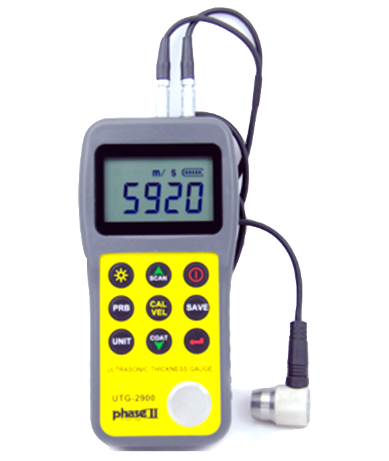

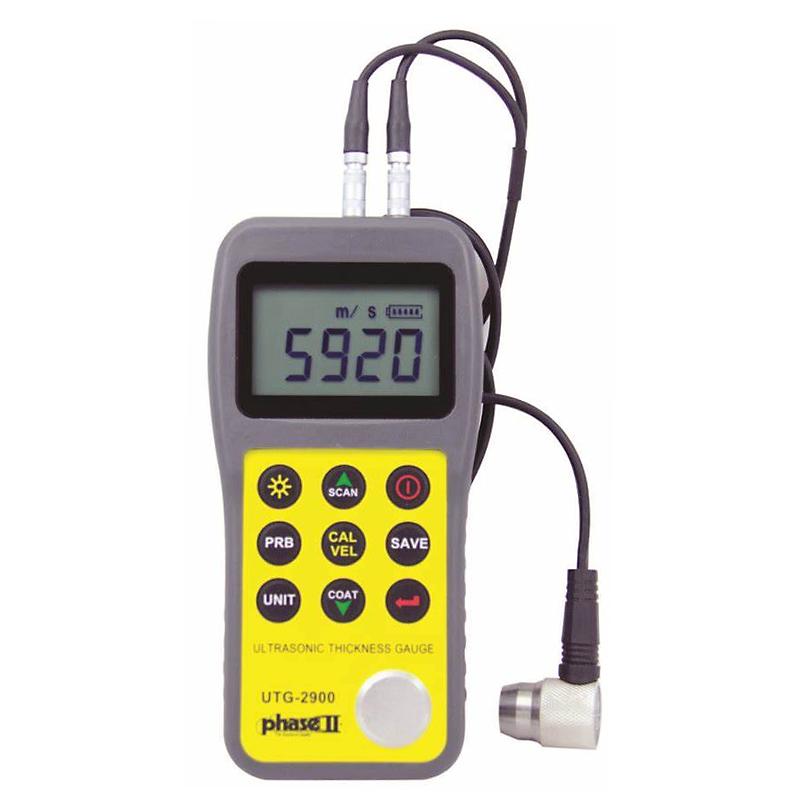

Phase II UTG-2900 Ultrasonic Thickness Gauge
US Phase II UTG-2900 Ultrasonic Thickness Gauge can measure steel, titanium, plastic products, ceramics, Glass thickness, providing basic measurement, coating penetration, scanning, Speed of sound adjustment, large memory and USB output function.
PhaseII-
Defelsko C Advanced 2003-E Ultrasonic Coating Thickness Gauge Coating thickness of concrete, fiberglass, etc
$ 3509.00 -
LEEB LBTQ703 Ultra-thin Piece Penetration Thickness Gauge
Login -
SMART SENSOR AS850 Ultrasonic Thickness Gauge measurement range 1.2-225 mm
$ 168.00 -
DONGRU DR86S Ultrasonic Thickness Gauge 500mm/0.01mm Slim Mode
$ 281.00 -
CHENCHI PBH-01 Bottle wall thickness Tester measurement range 0-12.7mm
$ 961.00
The UTG-2900 is equipped with professional ultrasonic technology, intelligent operation and high-end model functions, which can provide basic measurement, coating penetration, scanning, sound velocity adjustment, large memory and USB output functions. This dynamic multi-function ultrasonic Thickness Gauge is primarily used to measure the thickness of metallic and non-metallic materials such as steel, titanium, plastics, ceramics, glass, and other ultrasonic conductors. As long as the upper and lower surfaces of the workpiece are parallel, the UTG-2800 can accurately display the measured values in metric or imperial systems with a simple calibration of known thickness and sound velocity.

The UTG-2900 Ultrasonic Thickness Gauge comes with a calibration certificate, operating manual, and instrument case.
PhaseII UTG-2900 Ultrasonic Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | Pulse echo measurement: 0.6~ 580mm in steel; echo measurement: 3~ 60mm |
| Probe style | Split probe |
| Probe Frequency | 5MHz |
| Speed of sound | 1000~9999m/s |
| measurement error | ±(0.5%H+0.03)mm |
| Display resolution | 0.01mm |
| Data storage | 20 groups (100/group) |
| Operating language | Chinese |
| Display | 4.5-Bit LCD display with backlight |
| Host size | 150*74*33mm |
| Weight | 245g |
| Power Supply | 2 * 3V AA alkaline battery |
| Max/min alarm preset | Yes. |
| scanning method | 16 times/second |
| Probe Frequency | 4Hz |
| Interface | USB |
| micro printer | optional |
| Operating Time | More than 100h (when the backlight is not turned on) |
| Power consumption | Operating current not more than 3v |
PhaseII UTG-2900 Ultrasonic Thickness Gauge Packing list
whole machine X1, probe X1, instrument case X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
