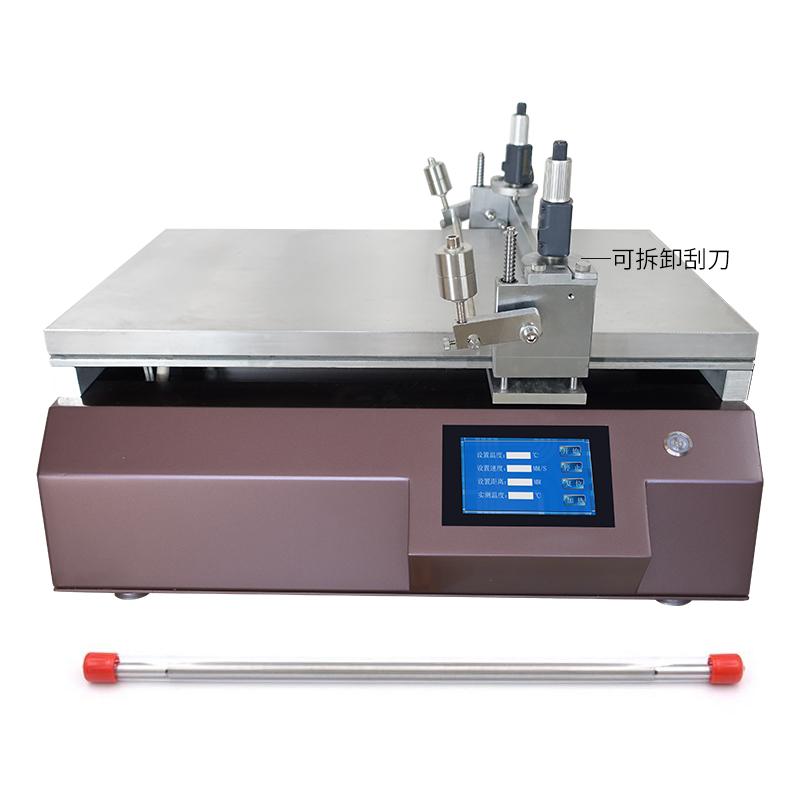

China TBJ-B3-DJ5 Drawdown blade Heating Film Applicator Coating area 400 * 400mm
Heating + Removable Drawdown blade, Drawdown blade is easy to clean, aluminum alloy baseplate, effective Spreader size is 500 * 1000mm, touch LCD screen operation, Heating Temperature range RT +~ 180 ℃.
zy
TBJ-B3-DJ5
TBJ-B3-DJ4
-
China TBJ-B1-DJ5 UV curing Drawdown blade Film Applicator
$ 3180.00 -
HuiNuo TM3000Pro/15 bar drawdown blade coater effective area 100 * 60cm servo motor
Login -
HuiNuo TM3000Pro/15D bar drawdown blade coater (floor model) effective area 100 * 60cm servo motor
Login -
HuiNuo TM3000/01 Bar & drawdown blade Small coater Effective Coating size 500 * 800mm
$ 3802.00 -
HuiNuo TM3000/13 drawdown Bar & blade coater Effective Spreader area 120 * 60cm
$ 2713.00
TBJ-B small coating testing machine for experimental use all imported accessories, and the price is cheap, has been favored by many multinational enterprise R&D institutions, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the coating and gluing effect, and ensure the uniformity and stability of the coating and gluing.
Since the main factors affecting the coating film are the coating speed and the pressure applied to the coater, the coating applied by hand is often inconsistent, especially between different people, which makes it difficult to compare the test results between the samples. Our automatic Film Applicator is designed to allow the operator to easily apply a precise wet film on different substrates, which greatly improves the reproducibility of the coating film.
Optional
|
|
|
zy TBJ-B3-DJ5 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Coating method | Drawdown blade |
| Drawdown blade type | Removable drawdown blade, easy to clean and replace |
| Drawdown blade Accuracy | ±0.003mm |
| Drawdown blade thickness range | 0.001~ 10Mm adjustable |
| Coating speed | 5-200Mm/s (< 5mm/s can be customized) |
| Coating size | 400 * 400Mm (Miscellaneous size can be customized) |
| Spreader distance control | The number can be set arbitrarily within the range of 1-400mm |
| Temperature range | RT+~180℃ |
| Temperature Uniformity | ±3℃ |
| Heating mode | Baseplate heating |
| Drawdown blade length | 400mm |
| Drawdown blade material | 304 stainless steel |
| Net Weight | 65KG |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| Optional Accessories | Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| customizable function | Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader |
| Host Power Supply | 220V 50Hz 1700W |
zy TBJ-B3-DJ5 Automatic Film Applicator Packing list
Film Applicator X1, Drawdown blade X1, Product manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
