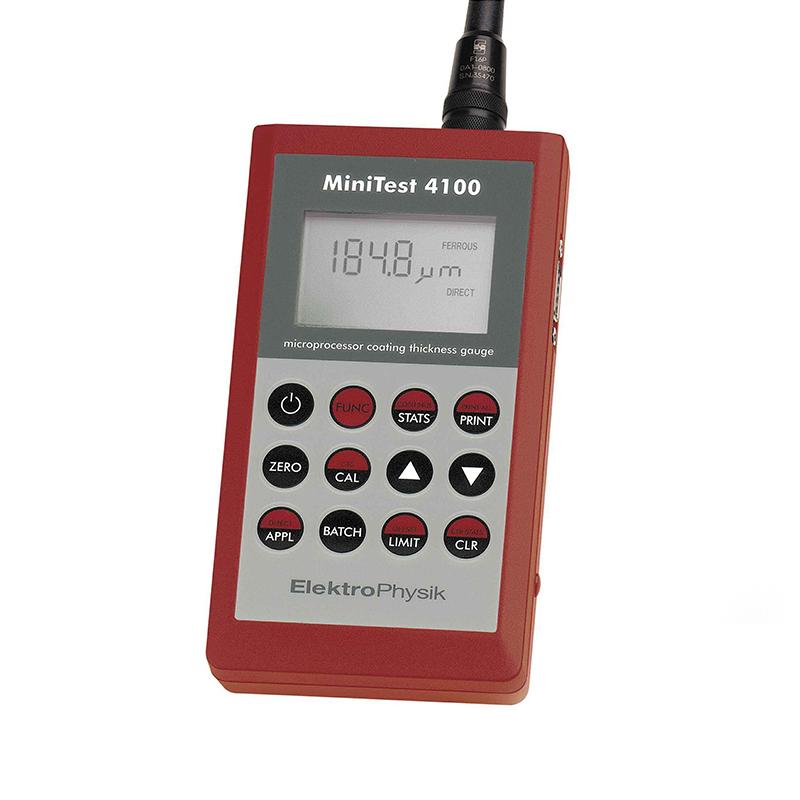

German EPK MiniTest 4100 precision platings Thickness Gauge MiniTest4100 with F05 iron-based probe

Introduction

Germany The Mintest Coated Thickness Gauge contains: Minitest 4100、 Minitest 3100、 Minitest 2100、 Minitest The 1100 has four different hosts, each with different data processing capabilities. All probes can be used with either host unit. Factors such as cladding thickness, substrate material, substrate shape, thickness, size, geometry and other factors should be considered when selecting the most suitable probe.

EThe PK MiniTest 4100 host can store up to 10,000 measured values in 99 application rows, each of which can be divided into 98 groups. The memory function is useful if different measuring tasks require frequent probe changes for different calibrations. Different calibration and probe parameters can be stored separately and can be recalled at any time. Measurement data can be evaluated and analysed in a variety of statistical ways. Setting limit values allows the operation to be used to monitor tolerances that occur during the production process while taking measurements.

Test your app

The German EPK MiniTest Precision Coating Thickness Gauge is used to measure the following cladding (cladding includes coatings, coatings, etc.):

● Non-magnetic cladding on steel substrates (e.g. paint, zinc);

● Insulating cladding on non-ferrous metals (e.g. paint, anodized film);

● Non-ferrous metal cladding on the insulating substrate.

Product Applications

EPK MiniTest 4100 precision coating Thickness Gauge is widely used in automotive, shipbuilding, aviation and machinery manufacturing industries, first-class government inspection agencies and electroplating industries.

Features

1. It can be equipped with all probes(sold separately)

2. It can be connected to MinPrint and PC through RS-232 interface (sold separately)

3. It can be calibrated with 1 or 2 standard foils

Apply standards

DIN EN ISO 9000 ff./QS 9000/ISO/IEC 17025 (Guide 25) and other international standards.

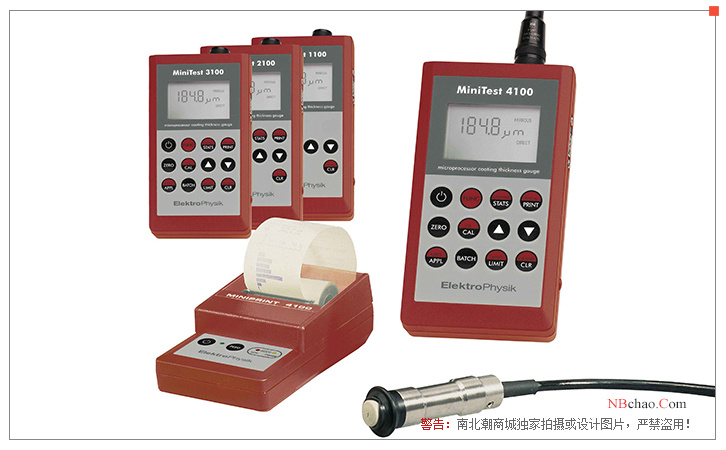

Display diagram

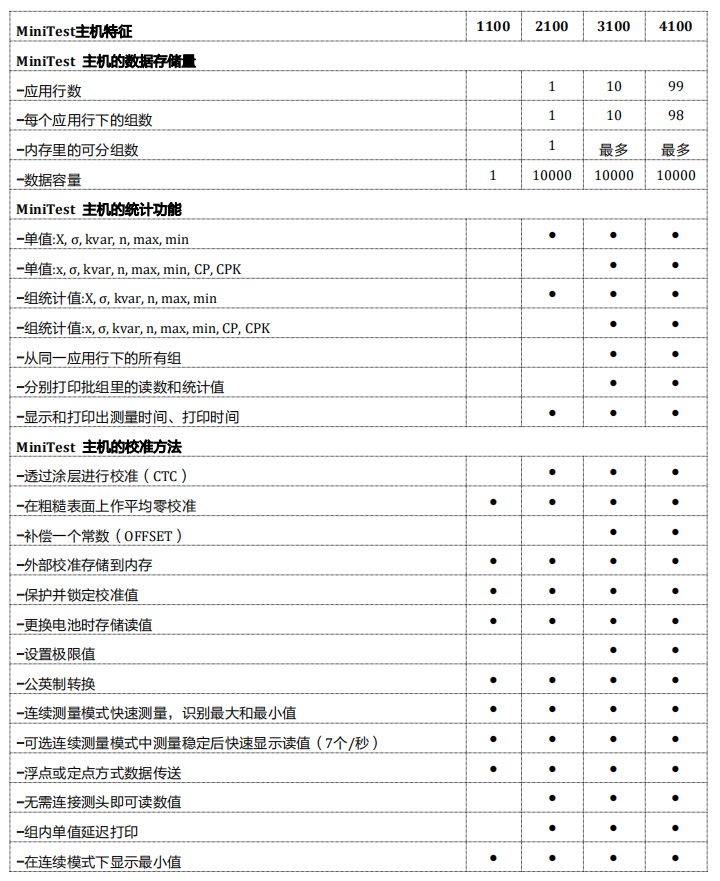

Comparison of the features of Minitest 4100-3100-2100-1100 series hosts

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
