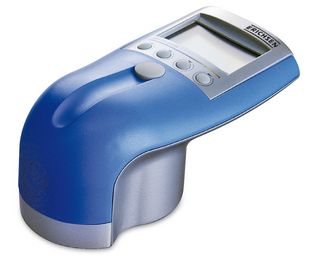

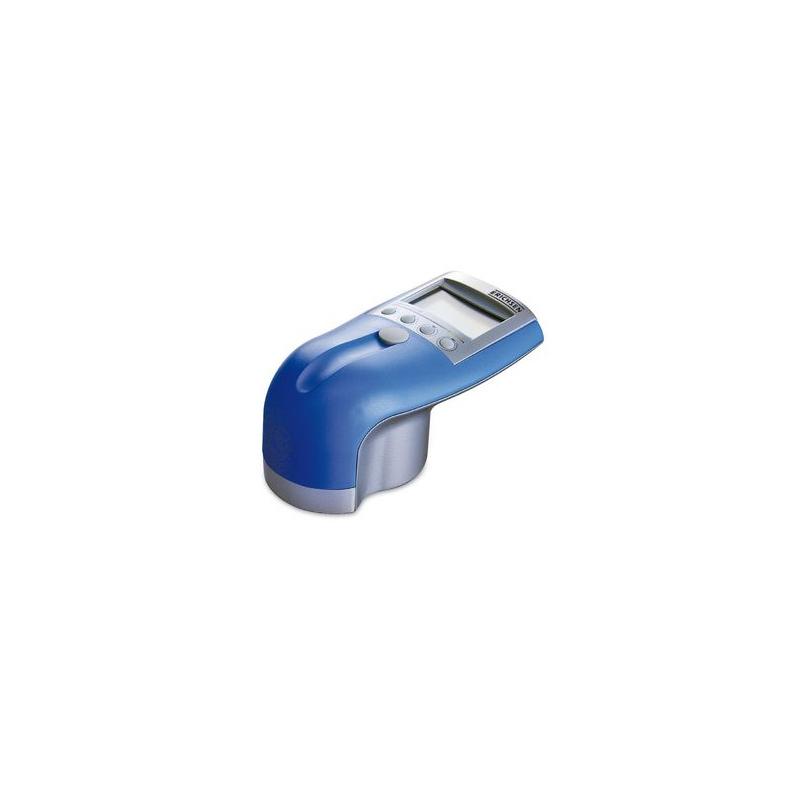

Erichsen 565-45 color difference Gloss meter
German erichsen565 color difference Gloss meter can simultaneously measure color difference and Glossiness, Gloss projection angle is 45 degrees, erichsen 565-45 color difference Gloss meter can freely fine-tune the screen display content, Light source has a 10-year life.
Erichsen
erichsen 565-45
-
EVERFINE PSC-30H Portable Colorimeter high-precision type
Login -
CHNSPEC CS-800CG Desktop 45/0 Colorimeter Gloss/Color reflection measurement
$ 11854.00 -
CHNSPEC CS-420 professional version Colorimeter 11mm caliber
$ 1345.00 -
3NH TS7020 Colorimeter software
$ 1237.00 -
CHNSPEC CS-410 economic version Colorimeter 11mm caliber
$ 615.00
Features Features
● German erichsen565 color difference gloss meter can measure color difference and gloss at the same time.
● Color measurement is available in two sizes: 45 degrees/0 degrees (565-45) and D8 degrees (565-D).
● The 565 Colora-Difference Gloss Meter can analyze colors with a resolution of 10nm, and its accuracy is not inferior to that of a table-top Colorimeter.
● The design of the natural color difference gloss meter is quite exquisite, and its weight is only 500 grams.
● Ergonomic design.
● The display content can be fine-tuned according to the user.
● Unique full-circumference light source design, so it will not be affected by the perspective light source.
● 8000 points can be continuously measured with 4 No. 3 batteries.
● 10-year warranty for light source.
● You can enter a defined color difference value.
● It can be connected to a computer to back up the measurement results.
● The allowable error of the allowance can be set.
Meets standards
ASTM D 2244、ASTM E 308、ASTM E 1164、ASTM D 2457、ASTM D 523、DIN 5036、DIN 6174、DIN 5033、DIN 67530、ISO 7724、ISO 2813、ISO 7668.
Pictures
Erichsen erichsen 565-45 Color difference Gloss meterSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | 45°/0 |
| Repeatability of chromatic value | 0.01ΔE |
| Operating language | Seven languages including Chinese |
| Available Light Sources | A; C; D50; D55; D65; D75; F2; F6; F7; F8; F10; F11; UL30 |
| Power supply Voltage | 4 AA batteries |
| Weight | 500g |
| Reproducibility | 0.2ΔE |
| Viewing Angle | CIE 2°/10° |
| Gloss Measurement range | 0~100GU |
Erichsen erichsen 565-45 Color difference Gloss meter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
