3NH HG60 single angle Glossmeter 0~300GU Glossiness range

Sanenchi HG60 single angle Glossmeter is a 60 degree gloss Measurement Instrument, Gloss range is 0~300GU, HG60 single angle Glossmeter is suitable for paints inks, coatings, paper printing, plastic electronics, furniture, measurement Response time does not exceed 0.5s.

Brand

SKU: NB016873

3NH

Model

HG60
HG60

Get Quote

3NH shop

Information

Datasheet Video Manual

What else did others buy

Genuinegoods

3NH HG60 GlossmeterOverview
Specifications
Comments
FAQs

HG60

Glossmeter

HG60 Introduction

Sanenchi/3NHSingle-angle gloss meter HG60It is a single-angle gloss meter with a projection angle of 60 degrees, and it is a portable gloss meter with a white plastic shell, with a beautiful appearance and ergonomic design.HG60The single-angle gloss meter is equipped with high-quality management software, which can display 5 sets of gloss measurement data at the same time, providing basic measurement modes to meet the basic gloss test.HG60The single-angle gloss meter has the characteristics of stable performance, easy to use and accurate measurement.

HG60 product application

HG60The single-angle gloss meter is available in:paintsPaints and inks,furniturePaper Printing,ceramicsPlastic electronics, electroplating, hardware, marble and other industriesmeasurementGlossiness.

HG60 product features:

1、HG60The single-angle gloss meter has a large color screen of 3.5 inches, high-resolution (480*320) full Viewing Angle display, and can display 5 sets of measurement data at the same time.

2. The appearance design is simple and atmospheric, and the load ergonomic structural design.

3. Flexible choice of automatic calibration at start-up, simple and convenient operation.

4、HG60Single-angle gloss meterBuilt-in rechargeable battery.

5、Comply with standard ISO2813, GB/T9754, ASTMD523, ASTMD2457.

6、High-quality hardware configuration with a number of innovative technologies.

7、HG60The single-angle gloss meter has:Automatic shutdown function to save power consumption.

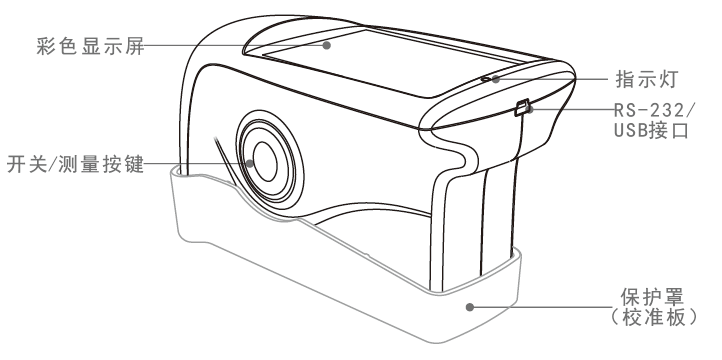

HG60 product outline and structure drawing

Structural diagram of Sanenchi HG60 single-angle gloss meter

HG60 product real picture

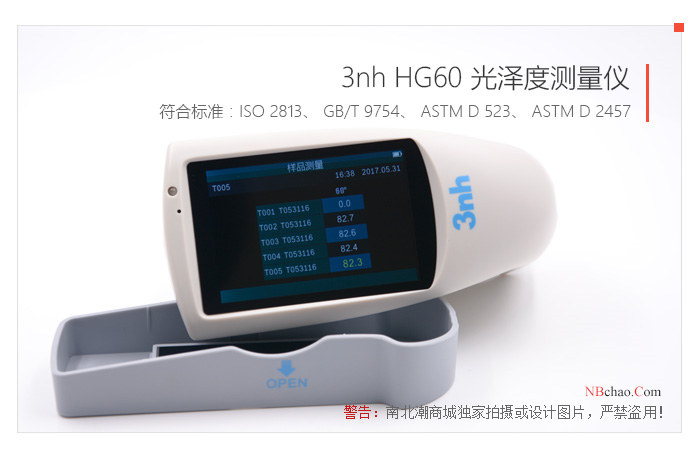

Appearance of Sanenchi HG60 single-angle gloss meter

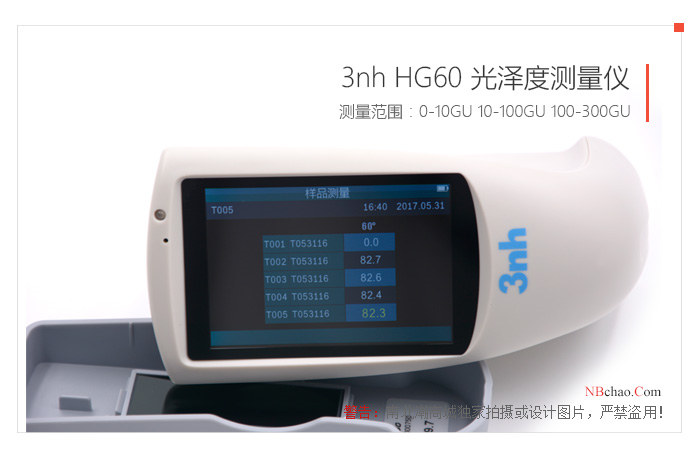

Detail of the display screen of Sanenchi HG60 single-angle gloss meter

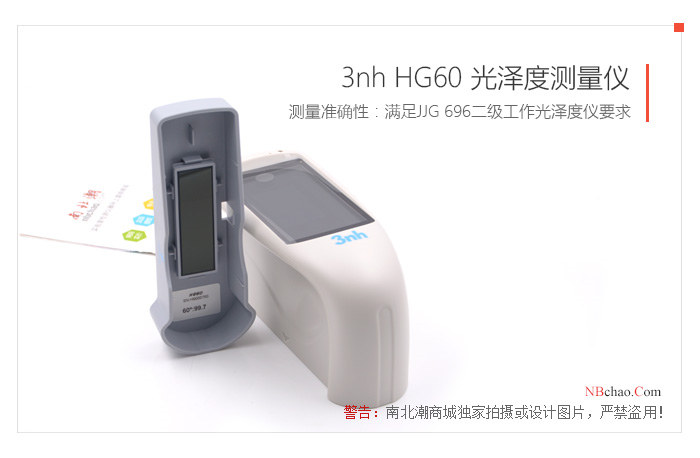

Structural diagram of Sanenchi HG60 single-angle gloss meter

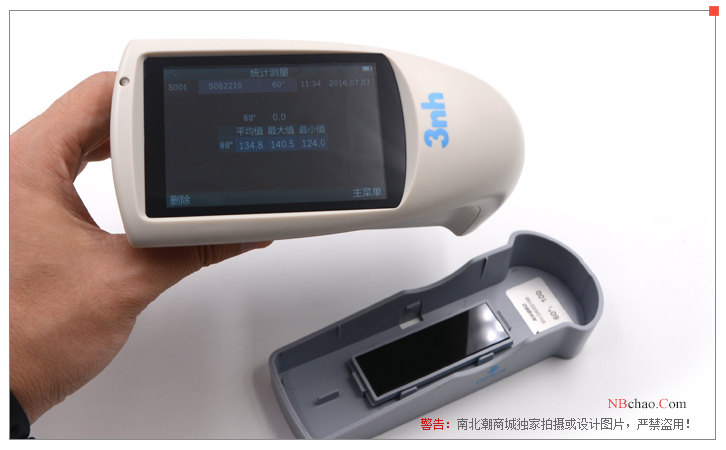

Sanenchi HG60 single-angle gloss meter display map

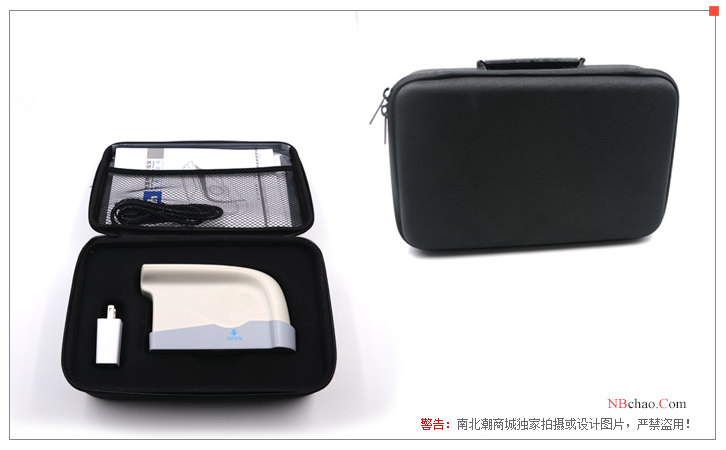

Sanenchi HG60 single-angle gloss meter packaging drawing

3NH HG60 GlossmeterSpecifications

LIST	VALUE
Measurement angle	60°
Measurement range	0~10GU；10~100GU；100~300GU
Repeatability	±0.1GU；±0.2GU；±0.2%
reproducibility	0.2GU\|0.5GU\|0.5%
Measuring Area	9*15mm
error of indication	±1.5,±1.5%
Graduation	0.1GU
Standards	ISO 2813、 GB/T 9754、 ASTM D 523、 ASTM D 2457
Interface	USB interface, RS-232
Data storage	1000 basic patterns
Display	TFT true color 3.5inch display
Operating language	Simplified Chinese, English
Dimension	1607590mm
Weight	Approx. 350g
Power Supply	3200mAh lithium battery, more than 10,000 times in 8 hours
Scope of application	Paints, coatings, inks, paper printing, plastic electronics, furniture, ceramics, Eletroplating, Hardware, marble and other industries for gloss measurement. Provide basic Measurement mode to meet the basic Glossiness test. Large color Display, can display 5 sets of test data at the same time.
Accuracy	Meet JJG 696 secondary glossmeter requirements
Chroma Response	CIE C Light source, CIE 1931 (2 °) luminosity corresponding
Measurement time	0.5s
Operating temperature	0~40℃
Storage temperature	-20~50℃
Relative Humidity	< 85% RH, no condensation
Standard Accessories	charger, USB data cable, manual, CD-ROM (including quality management software), calibration standard board
Optional Accessories	micro printer

3NH HG60 Glossmeter Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
