IWAVE WG60 glossiness 0~200GU Glossiness Range

IWAVE WG60 Glossmeter is mainly used to test the surface Glossiness of wood products, plastics, ceramics, paints, powder coatings, Paints, etc. The WG60 Glossmeter has a projection angle of 60 degrees and a measurement luminosity of 8 * 4mm. It is a precision 60 degree Glossmeter.

Brand

SKU: NB016875

IWAVE

Model

WG60

Get Quote

IWAVE shop

Information

Datasheet Video Manual

What else did others buy

KSJ MG6-SM Portable Gloss meter for metal, wide range, self-calibrated with Bluetooth

Login
AMITTARI AG-106B 60 ° integral portable Glossmeter

$ 231.00
LANDTEK GM-7 75 ° Glossiness Meter

$ 361.00
JND XA6 small hole surface Glossiness Meter Gloss range 0.0~199.5GU

$ 366.00
CHNSPEC DG60 MAX single angle gloss meter 2000GU/60 °

$ 288.00

Genuinegoods

IWAVE WG60 GlossmeterOverview
Specifications
Comments
FAQs

WG60

Glossmeter

Description

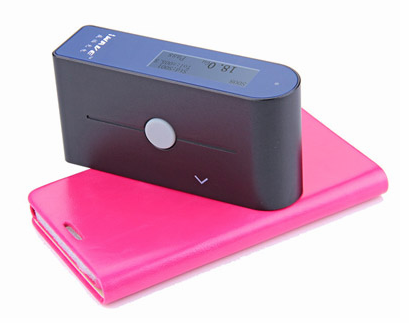

The projection angle of Weifu WG60 precision gloss meter is 60 degrees, and the measurement mode of precision gloss meter includes automatic measurement, manual measurement, single measurement, average measurement, and can realize cross setting, providing a variety of combination measurement modes. Exterior drawing of Weifu WG60 gloss meter

Features

1. Delicate and lightweight appearance, it is extremely convenient to carry and use

2. Automatic calibration, no need for manual adjustment, high stability, instant measurement

3. Fully intelligent design, one-button operation, one-handed can realize all operations, easy to use

4. Long-life light source, no need to replace

5, LCD digital display, the display is clear and clear, at a glance

6. Built-in large-capacity sonorous battery, which can be recharged repeatedly, and can be continuously measured for 12 hours when fully charged

7. Rich functions, accurate measurement, good repeatability, and high cost performance

Standard basis

WG60 gloss meter is designed and manufactured with reference to international standards ISO-2813, ASTM-C584, ASTM-D523, DIN-67530, ASTM-D2457, JND-P60 and Chinese national standards GB-9754, GB-9966, GB-8807.

Actual picture of the product

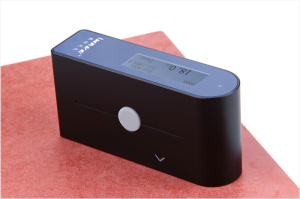

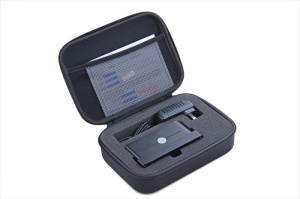

Weifu WG60 gloss meter test scene Weifu WG60 gloss meter packaging accessories

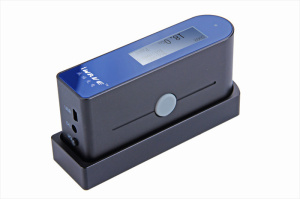

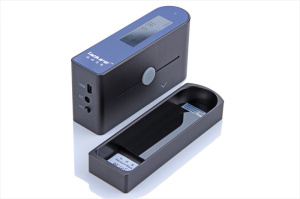

Exterior display of Weifu WG60 gloss meter Side view of Weifu WG60 gloss meter

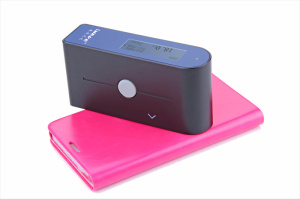

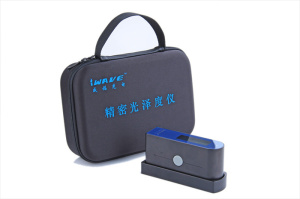

Weifu WG60 gloss meter outer packaging drawing Application diagram of Weifu WG60 gloss meter

IWAVE WG60 GlossmeterSpecifications

LIST	VALUE
Measurement angle	60°
Measurement range	0~200GU
Repeatability	0.2GU
reproducibility	0.4GU
Measuring Area	8*4mm
error of indication	1.0GU
Measurement mode	Automatic measurement, manual measurement, single measurement, average measurement, and can achieve cross setting, providing a variety of combination Measurement mode.
Graduation	0.1GU
Standards	ISO-2813、ASTM-C584、ASTM-D523、DIN-67530、ASTM-D2457、JND-P60、GB-9754、GB-9966、GB-8807
Data storage	100 groups, you can set any stored data as standard samples, and customize the tolerance range
Operating language	Chinese/English
Dimension	1223460mm
Scope of application	Paints, inks, paints, coatings, wood products; marble, granite, vitrified polished tiles, ceramic tiles; plastics, paper; Miscellaneous Non-metallic materials
Graduation mode	manually enter the calibration, call up the stored data calibration, and manually set the tolerance
output	Can be connected to a micro printer for real-time output of measurement data
Standard Accessories	Power adapter, manual, warranty card, Calibration plate
Options	micro printer

IWAVE WG60 Glossmeter Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
