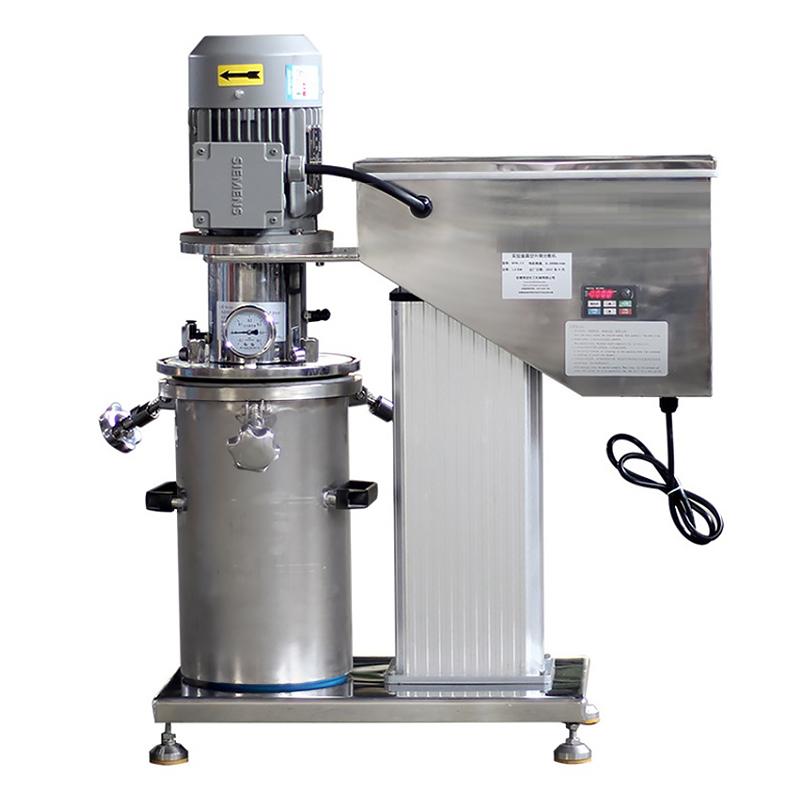

Muxuan MXF-Z1100 Vacuum Closed Disperse Stirrer All stainless steel, electric lift, high-grade 1.1KW

Introduction

MXF-Z series vacuum-sealed experimental small-batch dispersing mixer is a new type of product designed according to the actual needs of production. It is mainly used for pre-production experiments of various paints, coatings, pigments, plastics, food and other liquid slurries. Provide correct data for large-scale production, and can also be used for small batch production, the product can be dispersed 10-40L.

Advantages of this machine

High-performance motor, lower noise, more stable operation, to ensure the high quality of the whole machine;

CPU digital display dynamic speed control, which can realize timing and fixed speed operation, and intelligent control of the whole machine;

Lifting method: electric lifting, light and convenient, low failure rate, the bottom of the rack is equipped with casters, easy to move.

High dispersion efficiency, good product quality

The maximum speed of the equipment can reach 3000rpm, and the maximum line speed can reach 33m/s (the conventional recommended line speed is 20-25m/s), which can quickly and evenly disperse the material into the liquid material; Uniform, forming a good suspension effect, equipped with a double-end machine-sealed sealing structure, and the vacuum-sealed defoaming effect is very good.

Easy to operate and safe

The equipment is equipped with electric lifting, low noise, and can quickly lift and fix the sealing barrel; the dispersion plate is fixed with the main shaft by hexagon socket bolts, which can be quickly disassembled and replaced, and easy to clean; it is equipped with a locking sealing strip device, which can quickly fix the sealing barrel.

Principle

The high-speed operation of the dispersing disc makes the material flow in a ring shape, generate a strong vortex, and descend to the bottom of the vortex in a spiral shape. Strong shear impact and friction are generated between particles to achieve the functions of rapid dispersion, dissolution, uniform mixing and stirring.

Application

【Material viscosity】:≤25000 cps

【Production capacity】:10-40L

[Applications]: It is suitable for dispersing and mixing materials in industries such as biology, medicine, food, paint, ink, adhesive, dye, and pesticide.

MXF-Z series

Host X1, Stir head X1, manual X1, certificate of conformity X, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
