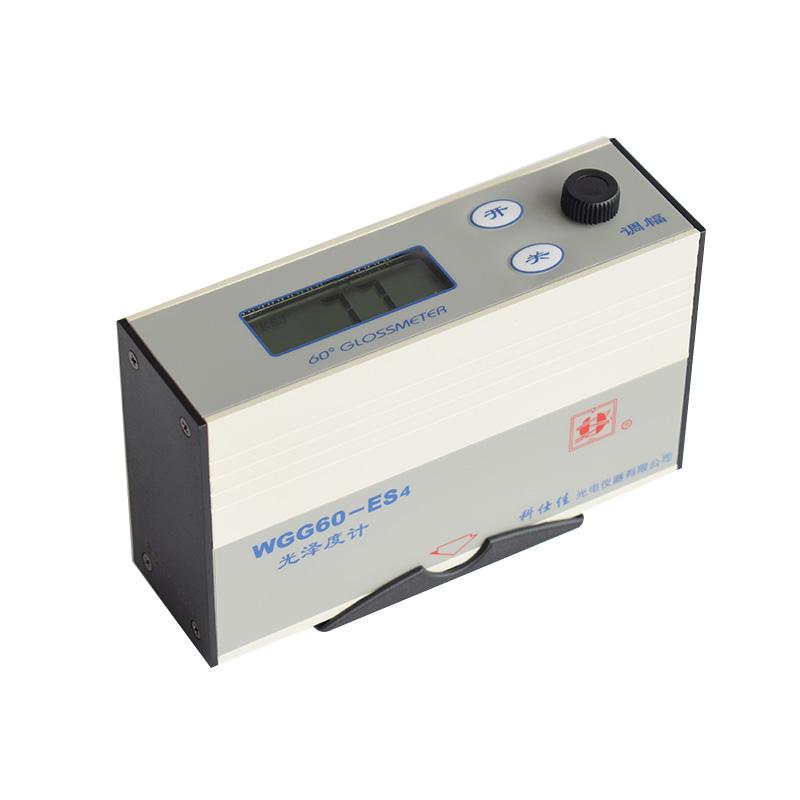

KSJ WGG60-ES4 Stone Glossmeter Gloss range 0~150GU 60 °
KSJ WGG60-ES4 Stone Glossmeter is a portable Glossmeter specially designed for Stone with a built-in rechargeable battery. The WGG60-ES4 Stone Glossmeter has a Gloss Reading Range of 0~199GU, error of indication +/- 2GU, projection angle 60 °.
KSJ-
Hypertherm GZ-268 Glossiness Meter 20 °/60 °/85 ° Three Angle Gloss Meter
$ 324.00 -
3NH Gloss Meter Calibration Board
$ 114.00 -
3NH NHG60 Glossiness Meter 60 ° High Precision Glossiness Meter
Login -
KSJ WGG60-Y4 high-precision Glossiness Meter, special for thin film industry, built-in lithium battery
Login -
DONGRU DR268 color screen three angle Glossmeter 0-2000Gs
$ 534.00
Overview
KSJ WGG60-ES4 Stone Gloss Meter is a small portable gloss meter, which is dedicated to stone gloss testing.Volume of WGG60-ES4 Stone Gloss MeterPalm-sized, easy to carry.
Built-in rechargeable battery pack. The whole charge can be used for more than 24 hours.
Scope of application
WGG60-ES4 Stone Gloss Meter is a gloss meter specially designed for stone, especially suitable for gloss measurement of marble, granite, terrazzo and other stone surfaces.
Structural diagram


Meets standards
WGG60-ES4 Stone Gloss MeterIt conforms to the standard ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror Gloss Meter and Gloss Plate" Metrological Verification Regulations.
Presentation diagram

KSJ Stone GlossmeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement angle | 60° |
| Measurement range | 0~199GU |
| Measuring Area | 18*36mm |
| error of indication | ±2GU |
| Graduation | 1GU |
| Meet the standard | ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002 |
| Dimension | 130*40*80mm |
| Weight | 430g |
| Power Supply | Built-in Ni-MH battery pack 4x1.2V, 600mAh |
| Measurement port size | 20*50mm |
| Reading Range | 0~199GU |
| Zero Error | 1GU |
| Stability | 1GU |
| Operating Time | Power-on continuous use time > 48h |
| Charging time | The whole charging process takes 14 to 16 hours. |
| Charger | AC 187~ 242 (50Hz) |
KSJ Stone Glossmeter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
