CHIJIU H01-2 Digital Magnetic Stirrer 50L 100W High Power

Product Description

H01-2 digital display magnetic stirrer is a large-capacity and high-power single-stirring magnetic stirrer. It has a solid structure and is driven by a three-phase brushless DC motor. It has large torque and strong magnetic force. It is equipped with a digital display of speed and is suitable for large-scale applications. volume of stirring.

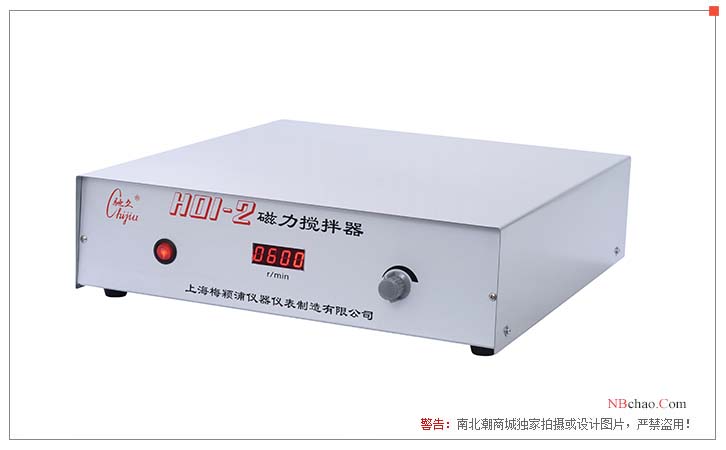

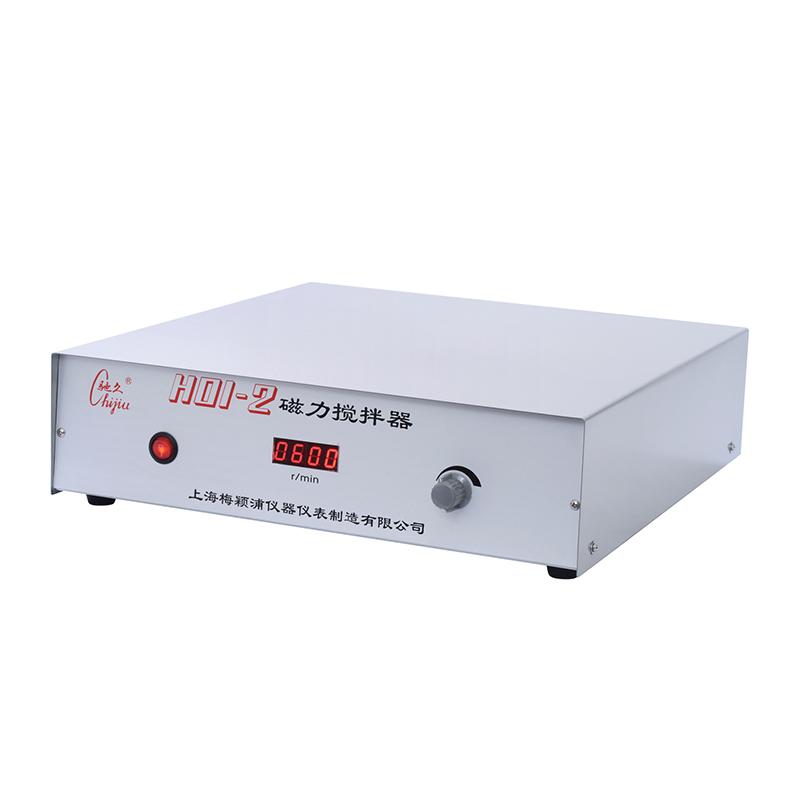

Product display

Instructions

1. Trial operation: Place the H01-2 digital magnetic stirrer stably, connect the power cord, plug in the power, turn on the power switch, the built-in indicator light of the switch will light up, and the digital display will be "0000". Adjust the knob clockwise, and the digital display will show the speed. , after the test rotation is normal, adjust the speed to the lowest and then shut down.

2. When using, place the container in the middle of the mixer and put the stirrer in so that the stirrer is in the center. Then turn on the machine, adjust the knob, and select the required mixing speed. When adjusting the speed, gradually accelerate or decelerate. Note: The container needs to be made of non-ferromagnetic material, the bottom must be smooth and the thickness should not be greater than 10 mm.

3. If the stirrer is lost during use, shut down the machine immediately to prevent demagnetization of the stirrer.

Precautions

1. The power supply should have good grounding.

2. The center of the working surface of the mixer cannot bear large pressure within ï¿ 110mm.

3. The liquid in the container should not be overfilled to avoid overflowing during stirring.

4. It is forbidden to place the stirrer directly on the mixer for trial operation.

5. Due to the strong magnetic force of the large-capacity magnetic stirrer, the friction between the stirrer and the bottom of the container is relatively large. Users should try their best to use a container with a smaller friction coefficient, and should always pay attention to the wear of the stirrer. If the stirrer is severely worn, The friction will increase, causing the motor to overload or even stall and damage the motor. Therefore, you should always observe the display status of the tachometer during use. If you find that the rotation speed decreases, suddenly stops, or it is difficult to start, you should shut down the machine immediately. The reason is mostly that the agitator is seriously worn, and the agitator should be replaced with a new one.

6. The higher the rotation speed during use, the faster the agitator will wear, so the rotation speed should not be too high, as long as the mixing effect is achieved.

host x1, power cord x1, stirrer x1, instruction manual x1, certificate x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
