TIMEPOWER
TP170
Introduction

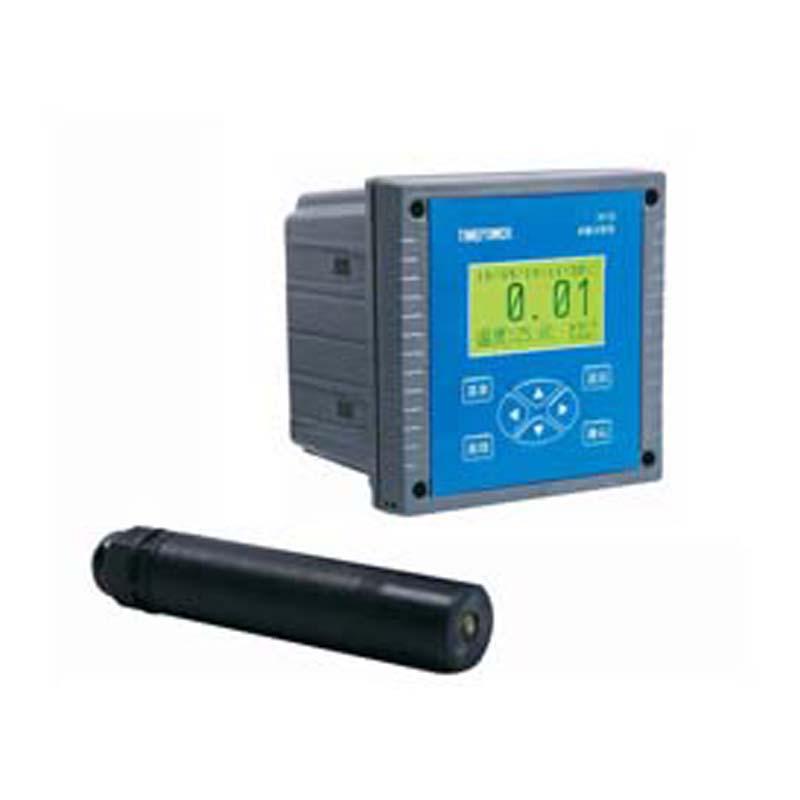

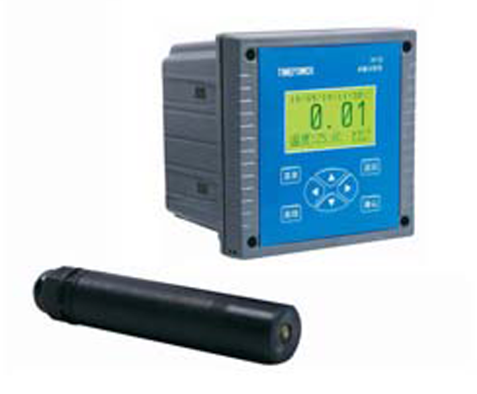

TP170 Chlorine Monitor is a digital intelligent instrument suitable for water quality monitoring in drinking water treatment, pool chlorination and other chlorination processes.
Features
Using 128×64 dot matrix LCD module, all data, status and operation tips are Chinese display, simple and convenient to use.
It adopts professional chip placement process and integrated high-integration circuit design.
Professional microcontroller technology, high performance and low power consumption.
Three current outputs (0~10)mA, (0~20)mA and (4~20)mA, customers can choose by themselves.
The data loop storage function automatically clears the overflow data, which is convenient to operate and simple to query.
24-bit A/D signal acquisition, high measurement accuracy, accurate and reliable.
TIMEPOWER TP170 Residual chlorine analyzerSpecifications
| LIST | VALUE |
|---|---|
| Display | 128 * 64 dot matrix LCD, Chinese display |
| Measurement range | 0.0~0.5/2/5/10/20/50ppm |
| Accuracy | ±1.5%FS |
| Resolution | 0.01PPM |
| Repeatability | ≤±1% |
| Response time | T90<1min (25℃) |
| Temperature compensation range | 0~60℃ |
| Water sample temperature | 5~60℃ |
| Environmental temperature | 5~45℃ |
| Working Relative Humidity | ≤ 90% RH (non-condensing) |
| Storage temperature | -25~ 55 ℃ (excluding electrode, electrode should be higher than 0 ℃) |
| Power Supply | AC (85~ 265) V Frequency (45-65) Hz |
| Current Output | 0~10mA, 0~20mA, 4~ 20mA optional, load < 300Ω |
| Alarm relay | 2 normally open points can be set arbitrarily, AC220V 3A /DC30V 3A |
| power consumption | ≤15W |
| Protection level | IP65 |
| Power down save | > 10 years |
| Dimensions | 145*120*150mm |
| opening size | 138*138mm |
| Weight | 0.64kg |
TIMEPOWER TP170 Residual chlorine analyzer Packing list
Host X1, electrode X1, flow cell X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
