LEICI PXSJ-216F laboratory Ion Meter 0.001pX multiparameter Ion concentration detection
LEICI PXSJ-216F laboratory Ion Meter can simultaneously measurement measurement pH/pX value, Ion concentration, potential value, temperature value, with 1200 Data storage, PXSJ-216F laboratory Ion Meter automatically recognizes pH standard buffer solution, with power-off protection function.
LeiCiFeatures
1. Dot-matrix liquid crystal, clear display, good man-machine interface, easy to operate, backlight design, can be used in a dark environment.
2. Support measurement of pH/pX value, ion concentration, potential value, and temperature value.
3. Support automatic identification of pH standard buffer solution, support GB, NIST, DIN, and support up to 5 points of calibration.
4. Allow the measurement of a variety of conventional ions, the instrument provides a variety of commonly used ion modes such as: H+, Ag+, Na+, K+, NH4+, Cl-, F-, NO3-, BF4-, CN-, Cu2+, Pb2+, Ca2+, allowing users to build their own ion modes.
5、μg/L, mg/L, g/L, mol/L, mmol/L, PX and multiple ion concentration units can be quickly switched.
6、It has a variety of ion concentration measurement modes, including direct reading concentration measurement mode, standard addition measurement mode, sample addition measurement mode, and GRAN measurement mode.
7、3 Reading Modes: Smart-Read: "Fast, Medium, Strict, Custom" Balance Conditions Available, Timed-Read: Timed Stop Measurement and Timing Automatic Interval Measurement, Cont-Read: Clearly grasp the continuous change process of the sample;
8、It supports 200 sets of pH measurement data and 200 sets of measurement data of six ions, in line with GLP specifications, and supports data review, deletion and printing;
9、With USB interface, with special communication software, it can be connected to PC;
10、With power-off protection function, the data will not be lost after power-off;
10、Firmware upgrade is supported.

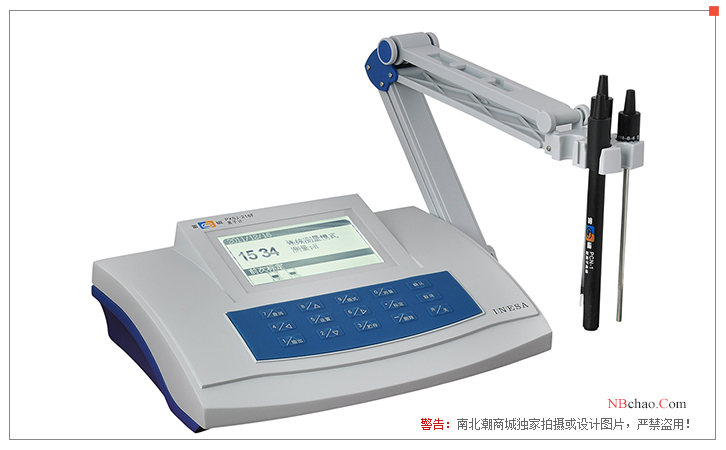

Product display diagram

LeiCi PXSJ-216F Ion meterSpecifications
| LIST | VALUE |
|---|---|
| Instrument level | Level 0.001 |
| Measurement parameter | Potential value, ph value, pX value, ORP value, Ion concentration value and temperature value |
| mV range | (-2000.00~2000.00)mV |
| mV minimum resolution | 0.01 mV |
| mV electronic unit error of indication | +/- 0.03% or +/- 0.1 mV |
| pH range | (-2.000~20.000)pH |
| pH minimum resolution | 0.001 pH |
| An indication of pH electron unit error | ±0.002pH |
| pX range | (-2.000~20.000)pX |
| pX minimum resolution | 0.001 pX |
| PX electronic unit error of indication | ±0.002 pX |
| Ion concentration range | ( 1.000e-9~9.999e+9) Unit: mol/L, mmol/L, g/L, mg/L, μg/L,ppm,ppb |
| Ion concentration resolution | 4 significant digits |
| Ion concentration error of indication | ±0.3% |
| Temperature range | (-10.0~135.0)℃/(14.0~275.0)℉ |
| Temperature minimum resolution | 0.1 ℃/0.1℉ |
| Temperature electronic unit error of indication | ±0.1 ℃ |
| Power Supply | Power adapter (input: AC (100~240) V, output: DC9V) |
| Size (mm), Weight (kg) | 242×195×68,0.9 |
LeiCi PXSJ-216F Ion meter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
