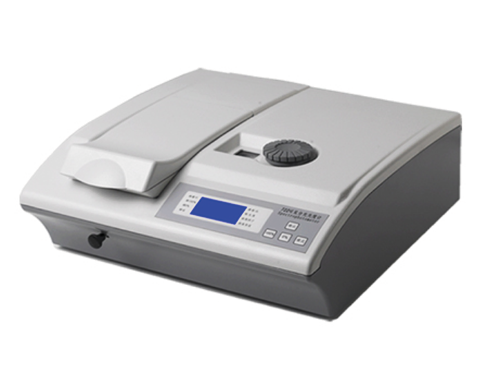

YueFeng 722S Single beam of light Visible Spectrophotometer
YueFeng 722s Visible Spectrophotometer has several metering methods such as transmittance, Absorbance, concentration factor, and concentration direct reading. The 722s Visible Spectrophotometer has RS232 interface and software, and has a special precision lamp holder.
YUEFENG-
JINGHUA UV1900 UV-Visible Spectrophotometer Wavelength range: 190nm~ 1100nm
$ 3491.00 -
YueFeng FSP6631 Flame Spectrophotometer Test Potassium/Sodium/Lithium
$ 2558.00 -
YueFeng 723S (PC) Visible Spectrophotometer 325nm~ 1100nm
$ 972.00 -
YueFeng 723 Visible Spectrophotometer Wavelength 325-1050nm
$ 747.00 -
JINGQI 6400A Flame photometer
$ 790.00
Features
Using a new single-chip microcomputer system, it has strong functions, small size and easy maintenance.
Use flame-retardant, insulating all-plastic shell, exquisite shape design, easy operation, high safety factor.
True 4-digit LCD display, large measurement range and high calculation accuracy.
Membrane keyboard, good hand feeling, dustproof, waterproof and easy to clean.
Professional optical system design, sealed grating monochromator, scientific anti-mildew technology, stray light elimination technology, significantly improve service life, stray light, stability, and photometric accuracy indicators.
The lens is used to condense the light to prevent the energy of the reflector from plummeting after being ablated for a long time.
Special precision lamp holder, you can replace the tungsten halogen lamp by yourself without having to adjust the optical path again.
Automatic adjustment of 0%, automatic adjustment of 100% and absorbance OA.

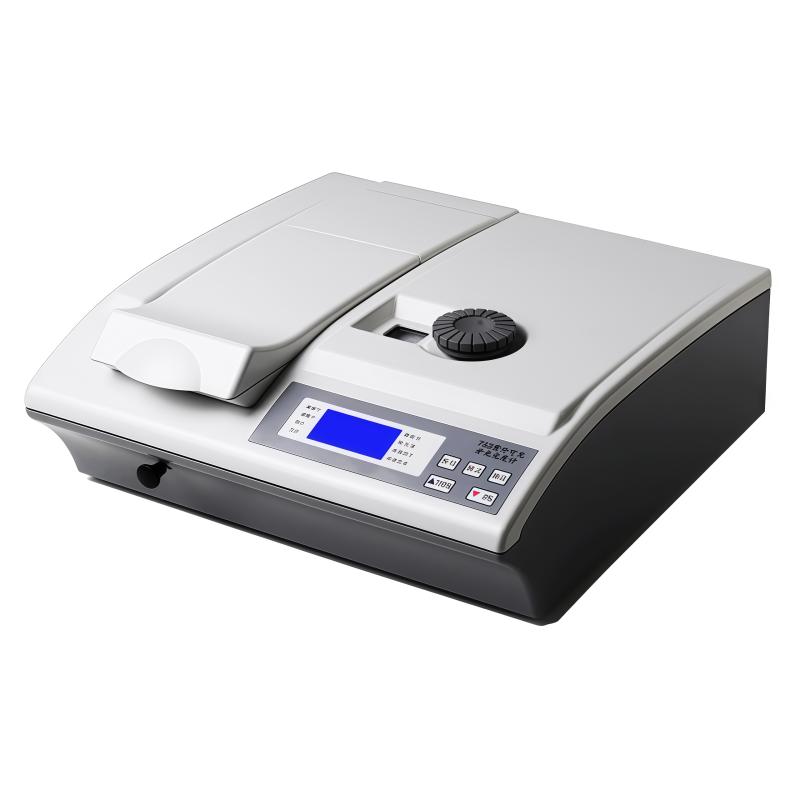

YUEFENG 722S Visible SpectrophotometerSpecifications
| LIST | VALUE |
|---|---|
| Optical inspection system | Single beam of light (1200/mm holographic light) |
| Light spectrum bandwidth | 4nm |
| Wavelength range | 340~1000nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | ≤1.0nm |
| Photometric range | 0~100%T、-0.050~3.000A |
| Photometric Accuracy | ±1.0%T |
| Luminosity, sexual repeability | ≤0.5%T |
| stray light | ≤0.5%T@360nm |
| Operating Mode | Transmittance, Absorbance, Concentration Factor, Concentration Direct Reading |
| Data Interface | RS232 interface and PC software |
| light source | Tungsten Halogen Lamp |
| Set range | 0~9999 (concentration value or factor) |
| Options | Bright thermal printer |
YUEFENG 722S Visible Spectrophotometer Packing list
completeness-built unit X1, software X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
