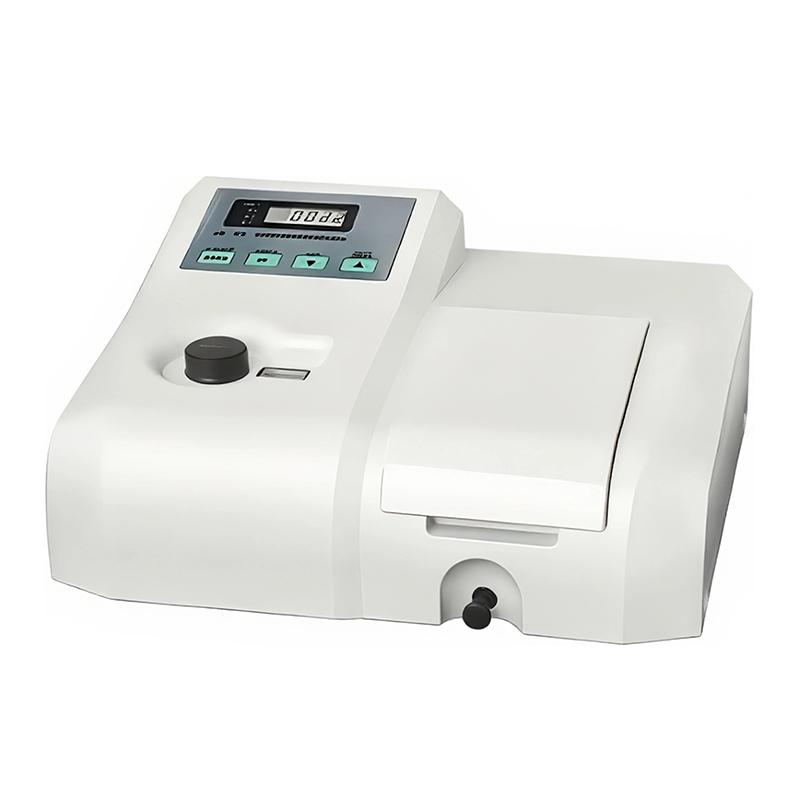

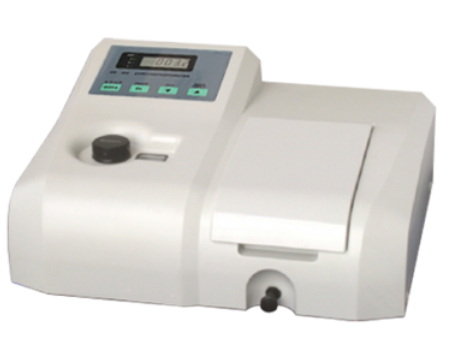

YueFeng 7230G Visible Spectrophotometer without PC software

Instrument Introduction

One-click automatic correction of ABS value.

Digital display of measured values.

Using imported tungsten lamp, the service life is up to 2000 hours.

The large sample chamber can hold a 100mm cuvette at most.

Data output port RS232, can connect computer and printer.

Features

• Four-digit LCD liquid crystal display.

• The spacious sample room can accommodate 5 ~ 100mm cuvette.

• The main engine can be used for photometric detection, and the software can be used for quantitative detection and display of the standard curve, C=F×ABS.

• The main components adopt imported configuration, which is convenient for maintenance.

• The newly designed Czerny-Turner optical path ensures the accuracy of detection linearity and ultra-low stray light.

• Can be directly connected to a printer (optional) to print data or maps.

Software function (optional)

Photometric measurement: the test of absorbance, transmittance and concentration at a fixed wavelength.

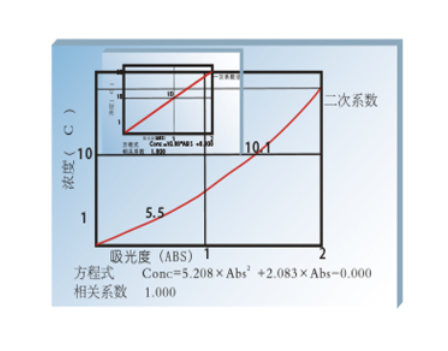

Quantitative test: standard curve method, coefficient method (primary, secondary, tertiary)

1. Equation Example: Conc＝10.00×Abs+0.000

2. Equation example: Conc＝10.000×Abs2+0.100×Abs－0.000 correlation coefficient 1.000

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
