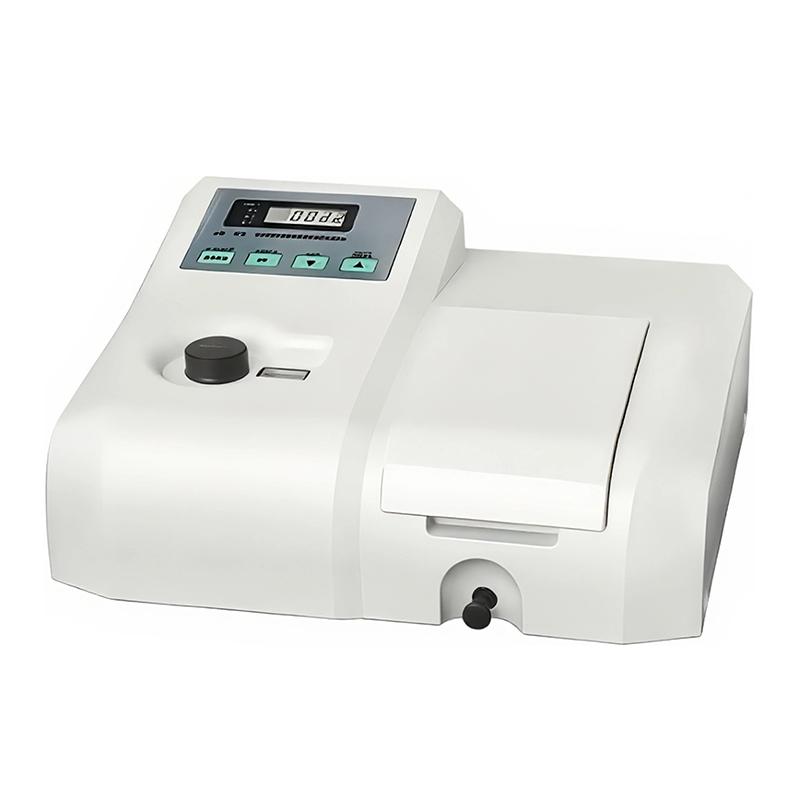

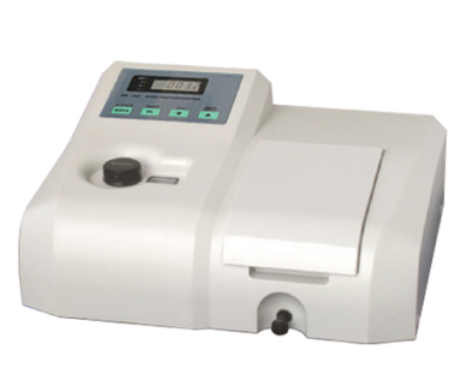

YueFeng 723 Visible Spectrophotometer Wavelength 325-1050nm
YueFeng 723 Visible Spectrophotometer Optical inspection system Aberration (1200L/mm Grating), Light spectrum bandwidth 5.0nm, Wavelength range 325~ 1050nm, Wavelength Accuracy ± 1.0nm, wavelength, sexual repeability ≤ 0.5nm, photometric range 0-200% T
YUEFENG
723
7230G（PC）
7230G
-
YueFeng 722S Single beam of light Visible Spectrophotometer
$ 332.00 -
JINGHUA 756CRT UV-Visible Spectrophotometer Light spectrum
$ 4423.00 -
YueFeng 7230G Visible Spectrophotometer without PC software
$ 661.00 -
YueFeng UV756 (PC) Ultraviolet-visible spectrophoto-meter with PC software
$ 1345.00 -
YUEFENG FP6455 Five-element Flame photometer
$ 1967.00
Instrument Introduction
One-click automatic correction of ABS value.
Digital display of measured values.
Using imported tungsten lamp, the service life is up to 2000 hours.
The large sample chamber can hold a 100mm cuvette at most.
Data output port RS232, can connect computer and printer.
Features
Four-digit LCD liquid crystal display.
The spacious sample room can accommodate 5 ~ 100mm cuvette.
The main engine can be used for photometric detection, and the software can be used for quantitative detection and display of the standard curve, C=F×ABS.
The main components adopt imported configuration, which is convenient for maintenance.
The newly designed Czerny-Turner optical path ensures the accuracy of detection linearity and ultra-low stray light.
Can be directly connected to a printer (optional) to print data or maps.
YUEFENG 723 Visible SpectrophotometerSpecifications
| LIST | VALUE |
|---|---|
| Optical inspection system | Aberration Elimination (1200L/mm Grating) |
| Light spectrum bandwidth | 5.0nm |
| Wavelength range | 325~1050nm |
| Wavelength Accuracy | ±1.0nm |
| Wavelength Repeatability | ≤0.5nm |
| Photometric range | 0~200%T、-0.301~2.000A、0~1999C |
| Photometric Accuracy | ±0.002A(0~0.5A)、±0.003A(0.5~1A)、±0.5%T |
| Luminosity, sexual repeability | ≤0.3%T(0~100%T)；0.001A(0~0.5A)；0.002A(0.5~1A) |
| stray light | ≤0.3%T@360nm |
| Noise level | 100%≤0.15%T；0%≤0.1%T |
| printout | RS232 print interface |
| light source | Tungsten Halogen Lamp |
| Dimensions | 450*340*180mm |
| Weight | 10kg |
| Drift | ≤0.001A/h@500nm |
YUEFENG 723 Visible Spectrophotometer Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
