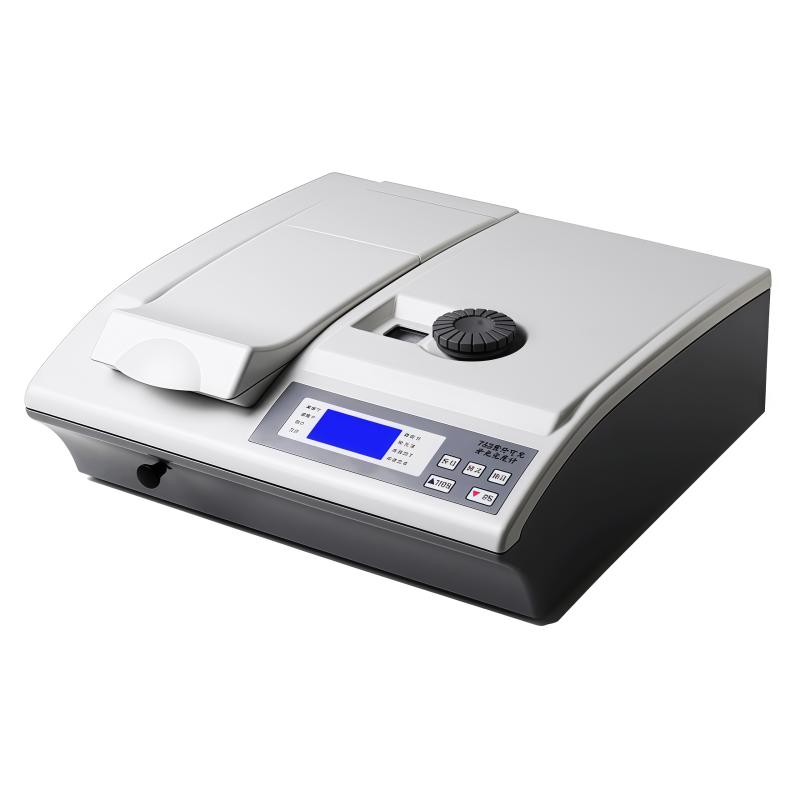

YueFeng 752NPC Ultraviolet-visible Spectrophotometer wavelength 190~960nm
YueFeng 752NPC Ultraviolet-visible Spectrophotometer measurement wavelength is 190~960nm, bandwidth is 4.0nm, 752NPC Ultraviolet-visible Spectrophotometer has a four-position LCD liquid crystal display, RS232 interface.
YUEFENG-
YUEFENG FP6455 Five-element Flame photometer
$ 1982.00 -
YUEFENG FP6421 Flame photometer Li/Ca
$ 1450.00 -
YueFeng 7230G (PC) Visible Spectrophotometer with pc software
$ 666.00 -
YueFeng 721 Single beam of light Visible Spectrophotometer Test Transmittance/Absorbance
$ 262.00 -
YUEFENG FP6425 Flame photometer K/Ca
$ 1450.00
Instrument Introduction
One-click automatic correction of ABS value.
Four-digit LCD liquid product display, digital display measured value.
Using imported tungsten lamps and deuterium lamps, the service life is as long as 2000 hours,
The large sample room can accommodate 5mm ~ 100mm cuvettes,
Data output port RS232, connectable to computer and printer
Features
Establish standard mode C=FXABS, F=C/ABS.
Find F=C/ABS
a. ABS file background zero adjustment, measuring the absorbance of known standard solution
b. Calculation of F value F=C/ABS
c. Adjust the F file to the required number (F range: 1-1999
d. C file test sample
It can be directly connected to a printer (optional) to print data or maps.
YUEFENG 752NPC UV-Visible SpectrophotoMeterSpecifications
| LIST | VALUE |
|---|---|
| Optical inspection system | Aberration Elimination (1200L/mm Grating) |
| Light spectrum bandwidth | 4nm |
| Wavelength range | 190~960nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | ≤1.0nm |
| Photometric range | 0~199.9%T、0~3.000A |
| Photometric Accuracy | ±1.0%T |
| Luminosity, sexual repeability | ≤0.5%T |
| stray light | ≤0.3%T@220nm,360nm |
| Operating Mode | Transmittance, Absorbance, Concentration Factor, Concentration Direct Reading |
| Data Interface | RS232 and PC software |
| printout | Serial port |
| light source | Deuterium lamp, tungsten halogen lamp |
| Concentration range | 0~9999 |
| Drift | ≤0.002A/h@500nm |
YUEFENG 752NPC UV-Visible SpectrophotoMeter Packing list
completeness-built unit X1, software X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
