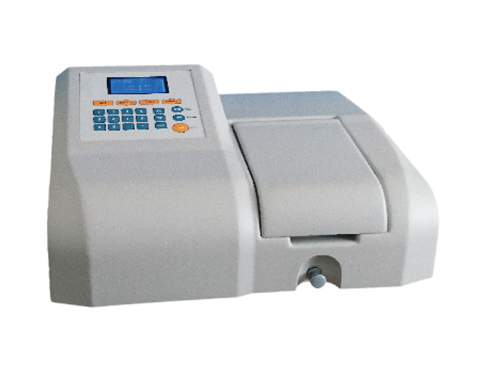

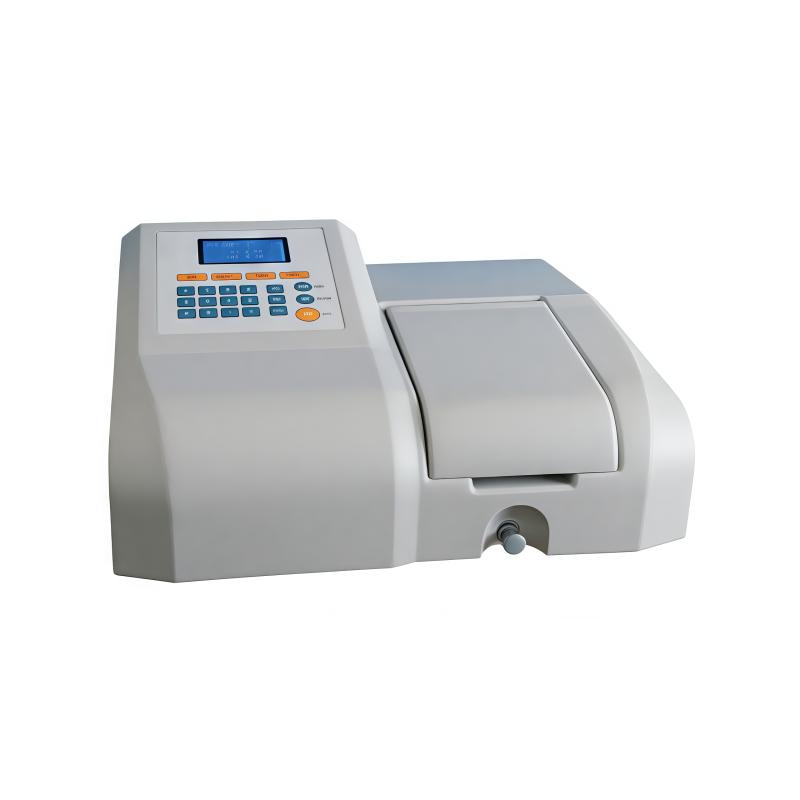

YueFeng UV759 (PC) Ultraviolet Spectrophotometer Wavelength: 190m~ 1100nm
YueFeng UV759 UV Spectrophotometer is a high-performance UV Spectrophotometer using imported components. The sample chamber of UV759 can store 5~ 100mm Colorimetric dishes and has the function of wavelength auto calibration.
YUEFENG-
YueFeng FP6450 Flame photometer for cement industry, testing potassium/sodium
$ 871.00 -
YueFeng FP6420 Flame photometer K: 0.0~10.0mmol/L
$ 1283.00 -
YueFeng FP6410 Flame photometer K: 0.0~5.0mmol/L
$ 926.00 -
YueFeng FSP6641 Flame Spectrophotometer Test Potassium/Sodium/Lithium/Calcium
$ 3413.00 -
YueFeng 7230G Visible Spectrophotometer without PC software
$ 661.00
Features
Large-screen LCD (64×128) graphic liquid crystal display.
The spacious sample room can accommodate 5-100mm cuvettes, and the 10mm sample holder is standard.
The host can perform photometric detection, quantitative detection, and can display standard curves, and can store 100 standard curves and 200 detection data.
With wavelength automatic calibration, automatic power off to keep data.
The main components adopt imported configuration, which is convenient for maintenance.
The newly designed Czerny-Turner optical path ensures the accuracy of detection linearity and ultra-low stray light.
Can be directly connected to a printer (optional) to print data or maps.

Product software function (optional)
Photometric measurement: the test of absorbance, transmittance and concentration at a fixed wavelength.
Spectrum scanning: multi-sample full band scanning.
Multi-Wavelength Test
DNA/Protein Test
spectral derivative
Kinetic test
Quantitative testing: standard curve method, coefficient method, single wavelength method, dual wavelength method, multi-wavelength method.
YUEFENG UV759(PC) Ultraviolet SpectrophotometerSpecifications
| LIST | VALUE |
|---|---|
| Optical inspection system | Aberration Elimination (1200L/mm Grating) |
| Light spectrum bandwidth | 1.8nm |
| Wavelength range | 190~1100nm |
| Wavelength Accuracy | ±0.3nm |
| Wavelength Repeatability | ≤0.2nm |
| Photometric range | 0~200%T、-0.301~3.000A、0~9999C |
| Photometric Accuracy | ±0.002A(0~0.5A)、±0.003A(0.5~1A)、±0.3%T(0~100%T) |
| Luminosity, sexual repeability | ≤0.15%T(0~100%T);0.001A(0~0.5A);0.002A(0.5~1A) |
| stray light | ≤0.05%T@220nm,360nm |
| Noise level | 100%≤0.15%T;0%≤0.1%T |
| Baseline flatness | ±0.002A |
| Data Interface | USB interface and PC software |
| printout | Parallel port |
| light source | Deuterium lamp, tungsten halogen lamp |
| Dimensions | 450*340*180mm |
| Weight | 13kg |
| Concentration range | 0~1999 |
| Drift | ≤0.001A/h@500nm |
| Scanning speed | Fast, medium, slow |
| display | High-quality 128x64-bit graph LCD |
YUEFENG UV759(PC) Ultraviolet Spectrophotometer Packing list
completeness-built unit X1, software X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
