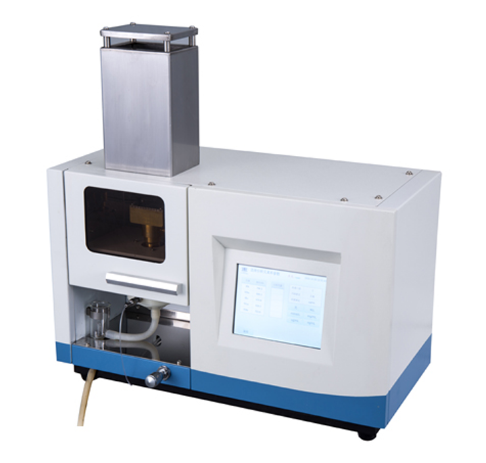

YueFeng FSP6642 Flame Spectrophotometer Test Potassium/Sodium/Lithium/Barium
Yuefeng FSP6642 flame Spectrophotometer can simultaneously potassium/sodium/lithium/barium four elements, using 5.6 inch TFT color LCD, FSP6642 flame Spectrophotometer has the advantages of small size, low heat generation, energy saving and environmental protection.
YUEFENG-
JINGHUA 759 UV-Visible Spectrophotometer Wavelength range: 190nm~ 1100nm
$ 2403.00 -
YueFeng 722 (N) Visible Spectrophotometer with RS232 interface
$ 296.00 -
JINGHUA 5cm Colorimetric dish, width 5cm
$ 110.00 -
YueFeng 723S Visible Spectrophotometer 325~ 1100nm without USB interface
$ 895.00 -
JINGHUA UV1900 UV-Visible Spectrophotometer Wavelength range: 190nm~ 1100nm
$ 3491.00
Features
For the first time in the industry, the concave holographic grating spectroscopic design is adopted. The spectrum is pure and accurate, the passband is narrow, the sensitivity is high, and the linearity is better.
Simultaneous direct reading measurement of any combination of five elements is optional, only software selection is required, flexible and convenient.
Similar to the shape design of atomic absorption, it is magnificent and compact.
Imported photocells are used to receive element signals, with stable and reliable performance.
There is an internal standard channel, which is corrected with signals that do not contain measurement elements, and is measured synchronously with the elements. The internal standard correction is designed to be optional and can be freely selected according to the situation.
It adopts 5.6-inch color 640×480 display screen and supporting touch screen, with graphical interface, measurement process flow, abundant information, convenient access, and harmonious integration of man and machine.
It adopts automatic ignition, including flame monitoring, and has the functions of flameout protection and alarm to ensure safety.
Adopt switching power supply, light weight, small size, low heat generation, little influence of external power supply, energy saving and environmental protection.

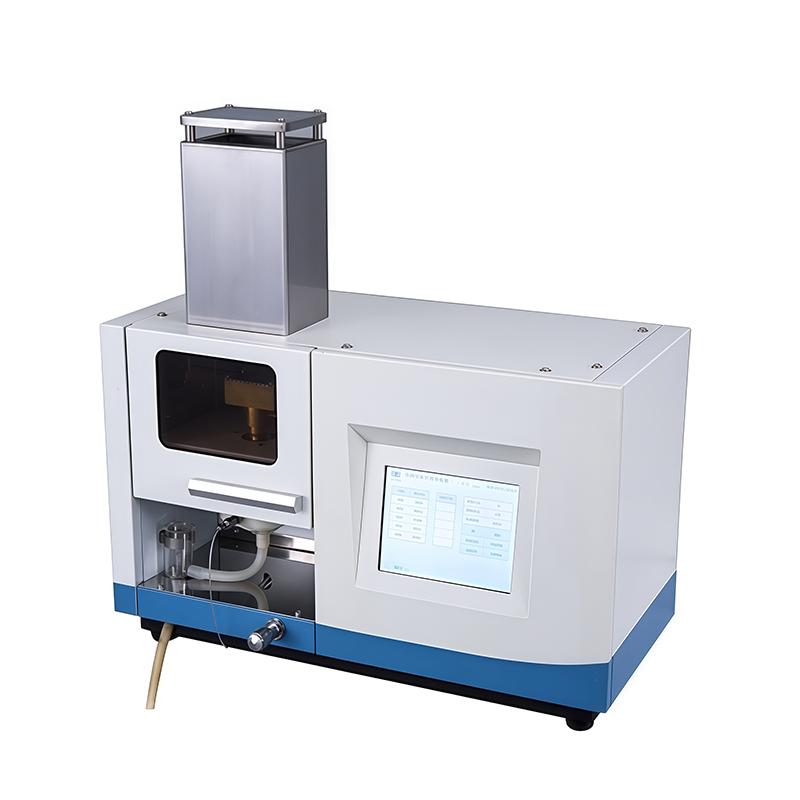

YUEFENG FSP6642 SpectrophotometerSpecifications
| LIST | VALUE |
|---|---|
| Measuring range - potassium | 0.0~10.0mmol/L |
| Measuring range - sodium | 0.0~200.0mmol/L |
| Measuring range - Lithium | 0~15mmol/L |
| Measuring range - Barium | 0~22mmol/L |
| display | 5.6 inch TFT color LCD |
| Measurement principle | 1200 Concave Holographic gratings |
| Stability | Relative maximum change of instrument indication within 15S ≤ 2% |
| Response time | <8S |
| Linear dispersion calibration | Linear dispersion fitting method |
| Data Interface | USB port for printer connection |
| Environment temperature | 10~35°C |
YUEFENG FSP6642 Spectrophotometer Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
