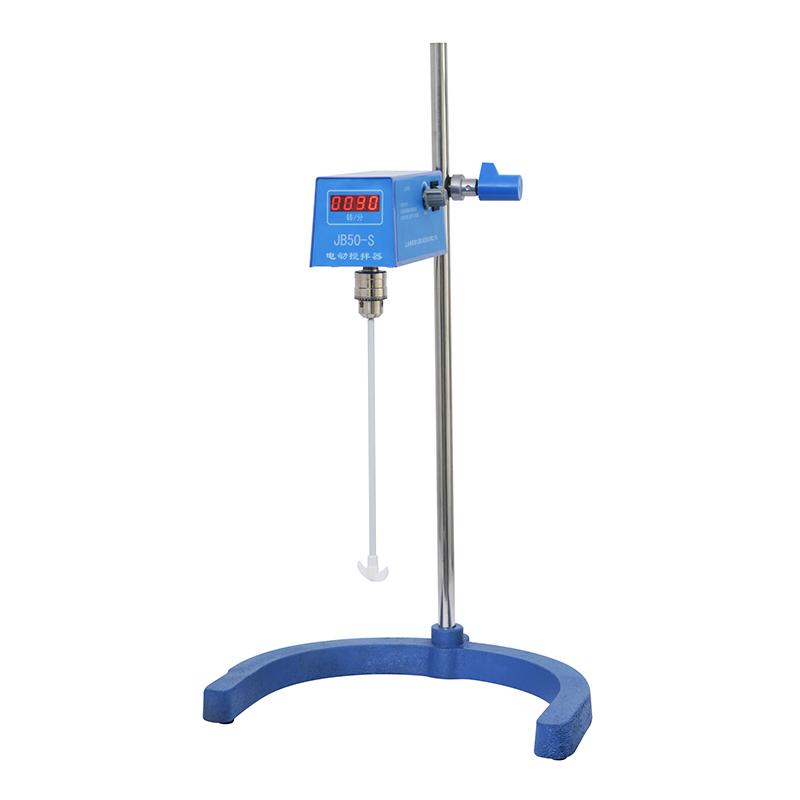

CHIJIU/Mei Yingpu JB50-S Experimental Overhead Stirrer digital display, stirring Power 50W
CHIJIU/Mei Yingpu JB50-S experimental Overhead Stirrer uses a digital tube to display the stirring Rotation speed. It is a Overhead Stirrer used in the laboratory. The stirring Power is 50W, and the Speed range of JB50-S is 60~1500rpm. It is suitable for high viscosity liquid stirring.
ChiJiu-
RWD100 LCD Overhead Stirrer Dissolving Impeller Pulp 50mm Rod length 350mm
$ 665.00 -
RWD100 LCD Overhead Stirrer Dissolving Impeller Slurry 40mm Rod length 350mm
$ 660.00 -
HUXI JB300-SH Digital display constant speed powerbasic stirrer Square anchor Impeller blade 70mm Rod length 300mm
$ 548.00 -
HUXI JB90-SH digital display constant speed powerbasic stirrer Four-blade Impeller pulp 50mm Rod length 400mm
$ 386.00 -
HUXI HJQ-2 Explosion-proof Pneumatic Stirrer One-word Impeller Slurry 50mm Rod Length 400mm
$ 1258.00
Description
Chijiu/Meiyingpu JB50-S electric mixer is driven by DC three-phase brushless motor, no sparks, high efficiency, large torque, and very slight temperature rise of the motor, which can adapt to high-viscosity liquid stirring, and the digital tube displays the stirring speed.

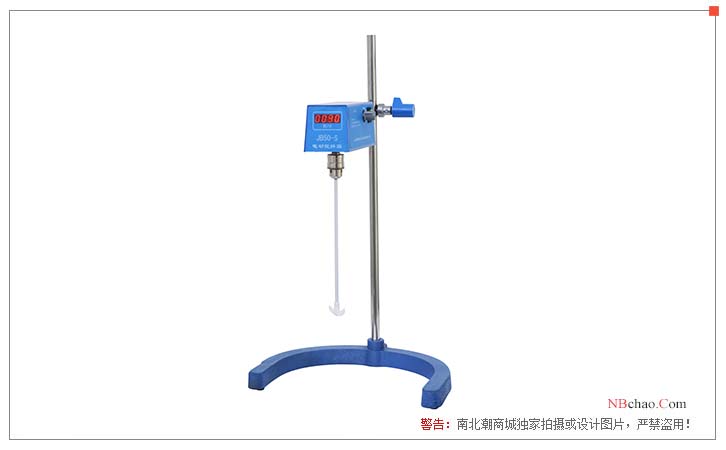

Pictures

How to use:
1. Installation: Load the column into the base and tighten it, tighten the set screw, install the cross joint on the column, and insert the cross bar of the host into the cross joint for fixation;
2. Install the stirring rod before use, and the stirring rod can be directly loaded into the chuck for clamping, but the straightness of the stirring rod must be ensured;
3. Before turning on the machine, put the power switch in the off position, adjust the knob to the minimum counterclockwise, then plug in the power supply, turn on the power switch, the built-in indicator light of the switch is on, and slowly adjust the knob clockwise to the required speed.
Precautions
1. When the agitator is used, it should be accelerated slowly from slow to fast, if the straightness of the stirring rod is poor, the speed can not be fast or the soft connecting shaft should be fixed with a support sleeve in the middle.
2. Please do not get too close to the stirrer when working, so as to avoid the danger of clothes and hair being involved;
3. Prevent liquid from splashing out when stirring.
ChiJiu JB50-S Powerbasic stirrerSpecifications
| LIST | VALUE |
|---|---|
| Power supply Voltage | AC220V±10% |
| Power | 50W |
| Speed range | 60~1500rpm |
| Rotary collet clamping range | Φ1.5~10mm |
| Distance from chuck to column | 160~270mm |
| maximum distance of chuck | 560mm |
ChiJiu JB50-S Powerbasic stirrer Packing list
host x1, base x1, cross section x1, column x1, drill wrench x1, instruction manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
