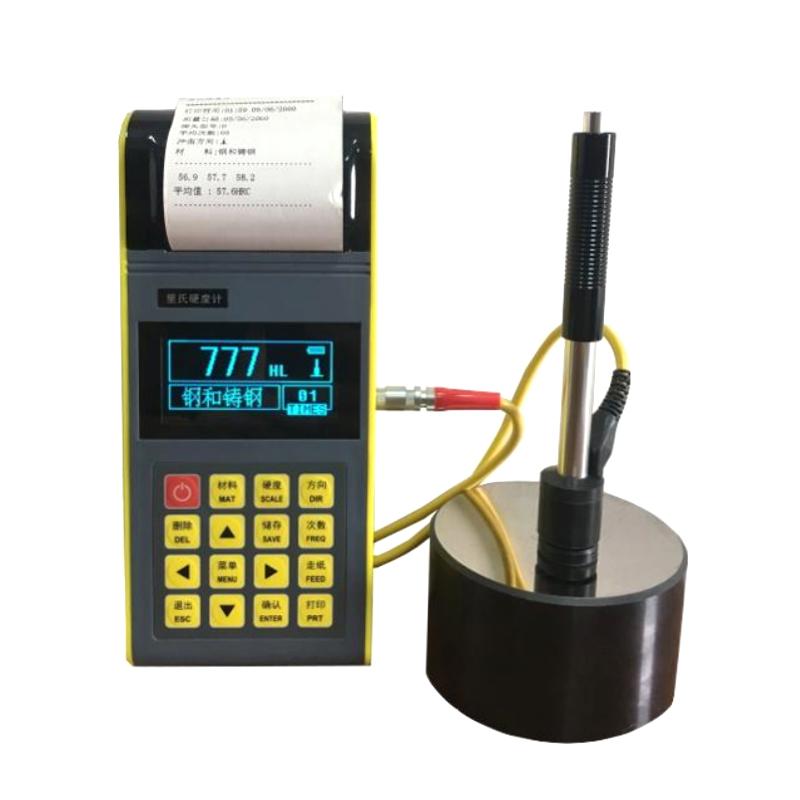

PORUIKE BH350 Integrated Leeb Hardness Tester

Overview

BH350 Ordinary All-in-One Portable Leeb Hardness Tester with Printing, which can directly measure Rockwell (HRC, HRB),Richter (HL), Brinell (HB), Vickers (HV), Shore (HS) hardness values. Comply with international standards as well as machinesThe Ministry of Machinery Industry promulgated the "Technical Conditions for Leeb Hardness Tester ZBN7l 010-90", promulgated by the State Bureau of Quality and Technical Supervision"Test Method for Metal Leeb Hardness GB/T 17394-1998", Leeb Hardness Tester Standard JB/T9378-2001 and other standardsPermit.

This instrument adopts an ultra-low-power design and uses a high-performance battery to achieve ultra-long working and standby timesThe compact and flexible design improves the flexibility of use. According to the Leeb hardness measurement principle, a wide range of metals can be usedMaterials are inspected with high precision. The "Forged Steel" material is supported, and when tested with a D/DC type impact device, "ForgedSteel" specimens, the HB value can be read directly, eliminating the need for manual checking. Easy switching to all hardness systems (HL,HB, HRB, HRC, HRA, HV, HS), and the measured values of each hardness are converted in parallel.

Measuring Materials: Steel & Cast Steel, Alloy Tool Steel, Stainless Steel, Grey Cast Iron, Ductile Iron, Cast Aluminium Alloy, Copper

Hardness measurement of zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel and other materials.

Features Equipped with high-precision D-type sensor, with support frame, high-brightness large screen, no Viewing Angle.

Applications

• In the machining industry, it is particularly suitable for on-site hardness testing of large parts and non-detachable parts

• Hardness of installed mechanical or permanent assembled parts.

• Mold cavity hardness.

• Hardness of heavy workpieces

• Failure analysis of pressure vessels, turbine-generator sets and their equipment

• The hardness of the workpiece with a very small experimental space

• Hardness of bearings and other parts

• Material division of metal material warehouse

• Rapid detection of multiple measuring parts in a large area of large workpieces

Features

1. The design is based on the standard: "Technical Conditions for Leeb Hardness Tester" JB/T 9378-2001;impact device;

2. Industrialized shell design, sturdy, compact, portable, high reliability, suitable for harsh operating environments, seismic resistancedynamic, shock, and electromagnetic interference;

3. The integrated design of the host and printer is convenient for users to print the test results on site;

4. Large OLED 128×64 dot matrix display for informative and intuitive display. No dead ends, easy to operate and readValue;

5. Shore (HS), Richter (HL), Brinell (HB), Rockwell (HRC/HRB/HRA), Vickers (HV)7 kinds of hardness values can be measured at one time and automatically converted;

6. Large-capacity NiMH rechargeable battery and charging control circuit, remaining power indicator icon, charging process indication, OKKnow the level of charge at all times;

7. It has the function of power on value indication software calibration to ensure that the data is applicable under different specifications and standards in any industryPrecise;

8. 7 different impact devices can be selected, which do not need to be calibrated when replacing and are automatically recognized;

9. The upper limit and lower value and overrun alarm can be set in advance;

10. It can store 600 sets of measured values, full menu, backlit display, easy operation;

11. It can be equipped with powerful microcomputer software, which has the ability to transmit measurement results, store and manage measured values, and measure statistical scoresRich functions such as analysis and printing of measurement reports to meet the higher requirements of quality assurance activities and management;

12. Continuous work for no less than 200 hours (when printing is not on), automatic sleep, automatic shutdown and other power-saving functions;

Host X1, D-type Impact device X1, D-type Richter Hardness block X1, nylon brush X1, screw driver x1, small support ring X1, ABS instrument special case X1, operation manual X1, certificate/warranty card x1, data processing software CD x1, communication cable/charger x1, printing paper x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
