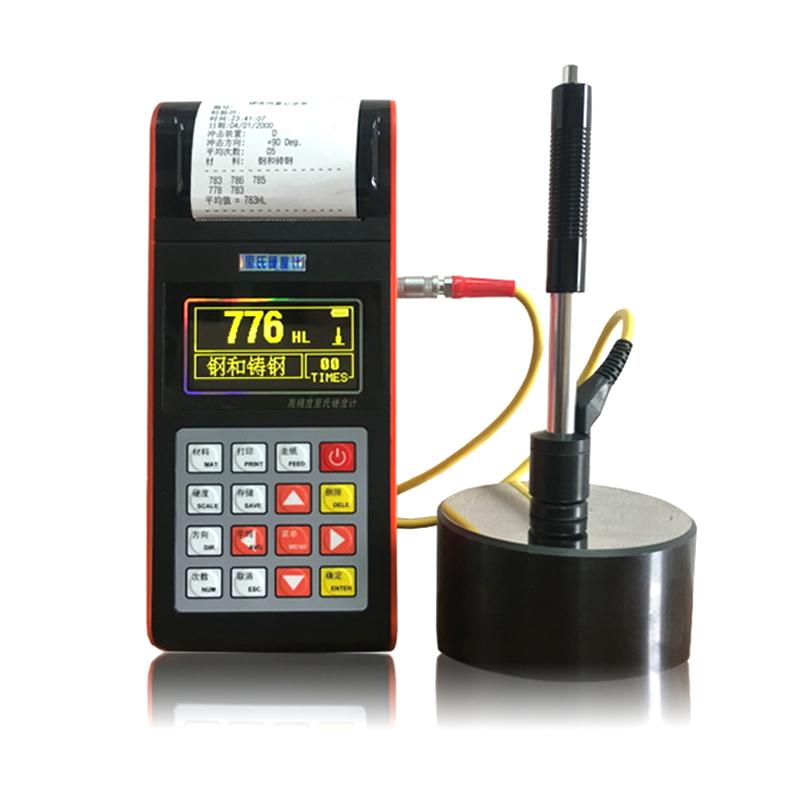

BOTECH botech BH-360B Leeb Hardness Tester

Overview

BH360B integrated printing portable Hardness Tester, the host and printer are integrated design, which is convenient for users to print test results, especially suitable for outdoor hardness testing, and is a cost-effective portable Hardness Tester. The instrument is designed with a streamlined ergonomic structure, equipped with a standard stand, and uses a large-screen OLED 128×64 dot matrix display, which is informative and intuitive. No dead ends, easy to operate and read.

Applicable Materials: Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel.

Features

Based on the Leeb hardness principle, a wide range of metal materials can be detected with high precision.

The "Steel" material is supported, and when the "Forged Steel" specimen is tested with a D/DC type impact device, the HB value can be read directly, eliminating the need to manually check the table.

It is convenient to switch to all hardness systems (HL, HB, HRB, HRA, HRC, HV, HS) and convert the measured values of each hardness system in parallel

Adopt a large-screen 128×64 graphic dot matrix LCD display, which is informative and intuitive.

Full Chinese display, menu-based operation, simple and convenient operation.

It has a bright backlit display, which is convenient for use in low-light environments.

RS232 communication interface, which can easily and quickly exchange data and set parameters with PC.

One main unit can be equipped with 7 different impact devices, and the type of impact device can be automatically identified. There is no need to recalibrate when replaced.

It can store up to 600 sets of hardness measurement data (impact times 32~1). Each set of data includes information such as a single measurement, an average value, the date of measurement, the direction of impact, the number of times, the material, the hardness system, etc.

The upper and lower limits of hardness values can be set in advance, and automatic alarms will be given when the range is exceeded, which is convenient for users to test in batches.

Compact, portable, and highly reliable enclosure for harsh operating environments, resistant to vibration, shock, and electromagnetic interference.

The power supply adopts 2 AA (No. 5) ordinary alkaline batteries or 3.7v lithium-ion batteries, which can work continuously for no less than 150-500 hours, and has power-saving functions such as automatic sleep and automatic shutdown.

There is a residual power indicator icon on the LCD, prompting the user to replace the battery in time.

It has the function of calibration of the indicator software

It can be equipped with powerful microcomputer software, which has rich functions such as transmitting measurement results, measuring value storage management, measuring statistical analysis, printing measurement reports, etc., to meet the higher requirements of quality assurance activities and management.

The design is based on the standard: "Technical Conditions for Leeb Hardness Tester" JB/T 9378-2001.

Applications

In the machining industry, it is particularly suitable for on-site hardness testing of large parts and non-detachable parts

Hardness of installed mechanical or permanent assembled parts.

Mold cavity hardness.

Hardness of heavy workpieces

Failure analysis of pressure vessels, turbine-generator sets and their equipment

The hardness of the workpiece with a very small experimental space

Hardness of bearings and other parts

Material division of metal material warehouse

Rapid detection of multiple measuring parts in a large area of large workpieces

Operating Conditions

Operating temperature: -10°C~+55°C

Stable storage -20°C~+75°C

Relative Humidity: ≤90%

There is no strong vibration, no strong magnetic field, no corrosive medium and no serious dust in the surrounding environment

Host X1, D-type Impact device X1, D-type Richter Hardness block X1, nylon brush AX1, small support ring X1, communication cable X1, operation manual X1, printing roll X1, background software CD X1, instrument case X1, charger X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
