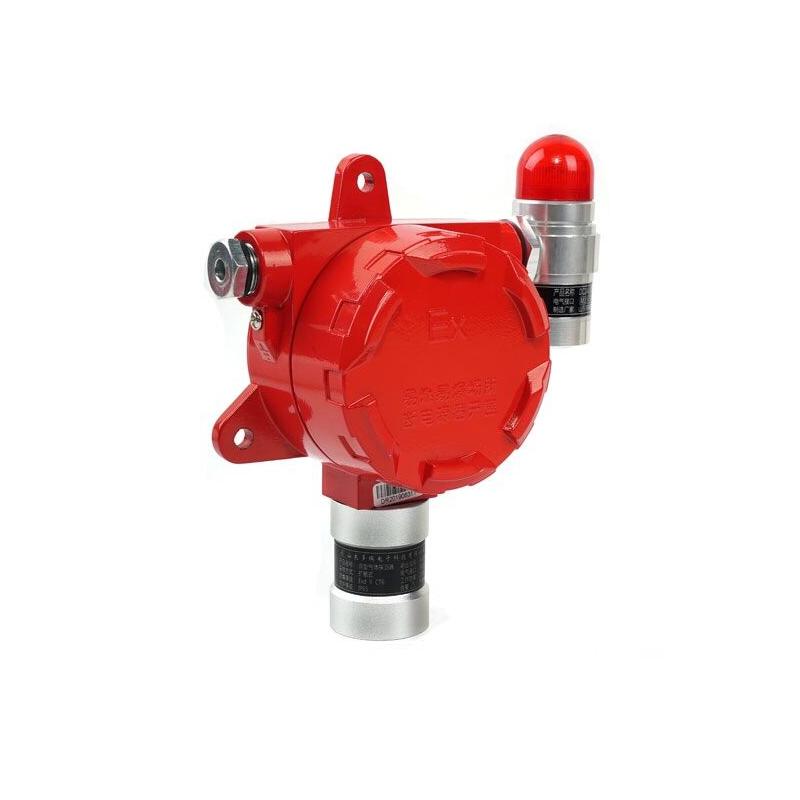

DuoRui DR-600 (sound and light model) Point Gas Detector

DUORUI DR-600 Point Gas Detector, Acoustic and Optical, Combustible 0-100% LEL

DUORUI DR-600 point Gas Detector is an acousto-optic combustible Gas Detector, the gas concentration range is 0-100% LEL, and the DR-600 combustible Gas Detector shell is made of die-cast aluminum.

Brand

SKU: NB017768

DuoRui

Model

DR-600 (sound and light model)

Get Quote

DuoRui

Information

Datasheet Manual

What else did others buy

Genuinegoods

DuoRui DR-600 (sound and light model) Point Gas DetectorOverview
Specifications
Comments
FAQs

DR-600 (sound and light model)

Point Gas Detector

Introduction

DR-600 (acousto-optic model) is a point Gas Detector that uses diffusion sampling method and catalytic combustion detection principle to detect, the Gas Detector has a range of 0-100% LEL, and the indication error is ±5%FS.

DR-600 (Acousto-optic Type) Point Gas Detector 1

DR-600 (Acousto-optic model) Point Gas Detector 2

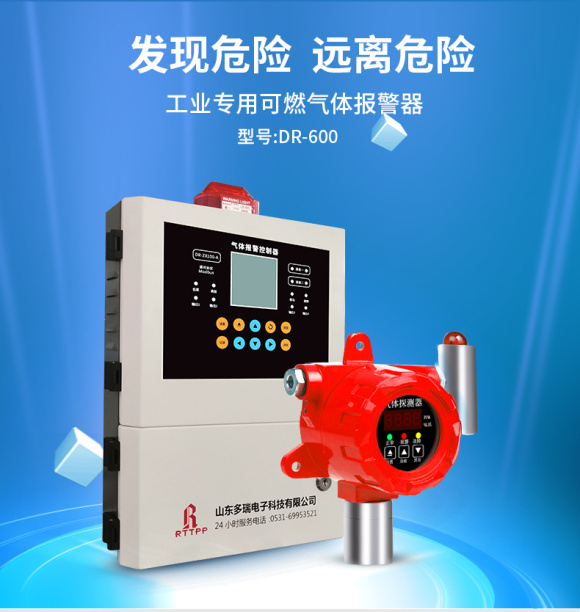

DR-600 (Acousto-optic Type) Point Gas Detector 3

DR-600 (Acousto-optic Type) Point Gas Detector 4

DR-600 (Acousto-optic model) Point Gas Detector5

DR-600 (Acousto-optic Type) Point Gas Detector 6

DR-600 (Acousto-optic Type) Point Gas Detector7

DR-600 (Acousto-optic Type) Point Gas Detector 8

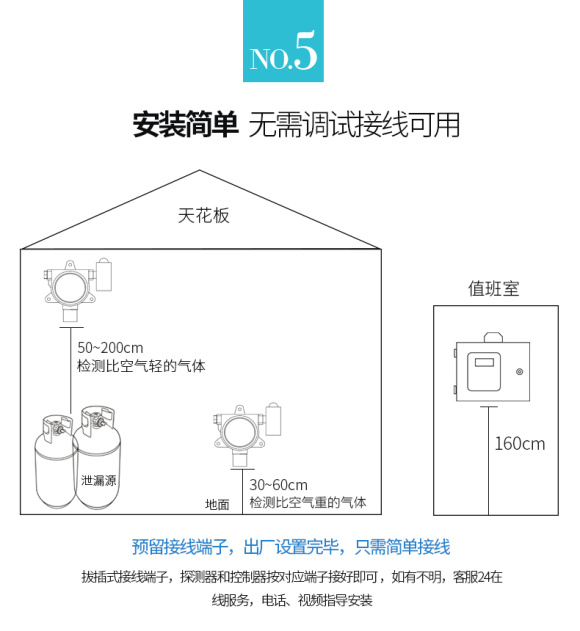

DR-600 (Acousto-optic Type) Point Gas Detector 9

DR-600 (Acousto-optic Type) Point Gas Detector 10

DR-600 (Acousto-optic Type) Point Gas Detector 11

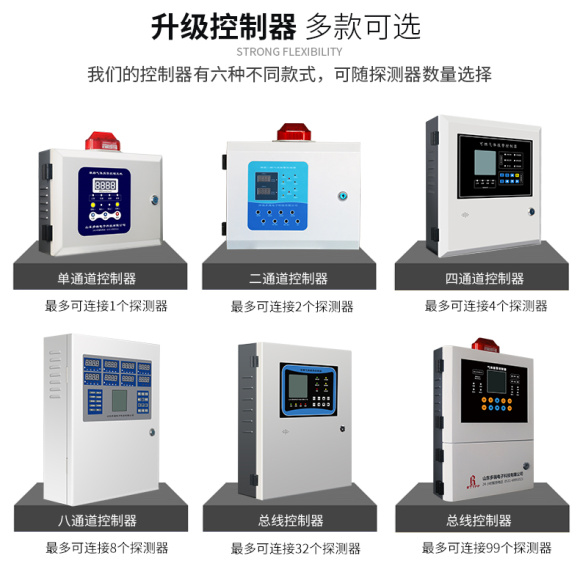

DR-600 (Acousto-optic Type) Point Gas Detector 12

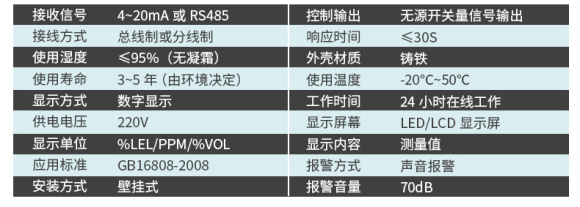

DR-600 (Acousto-optic Type) Point Gas Detector 13

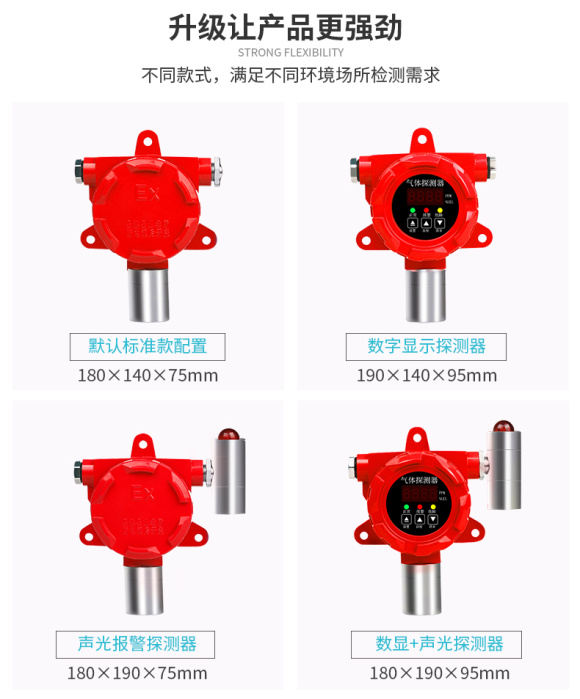

DR-600 (Acousto-optic Type) Point Gas Detector 14

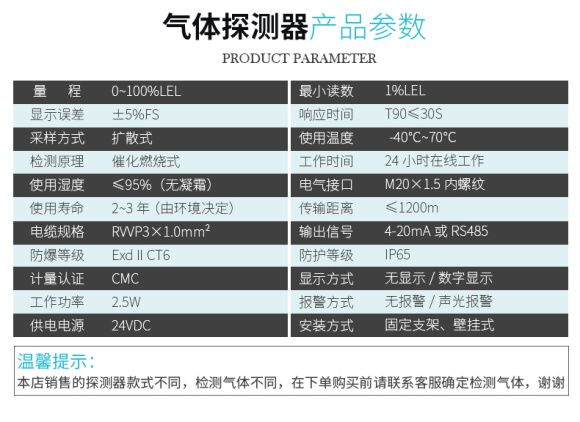

DR-600 (Acousto-optic model) Point Gas Detector 15

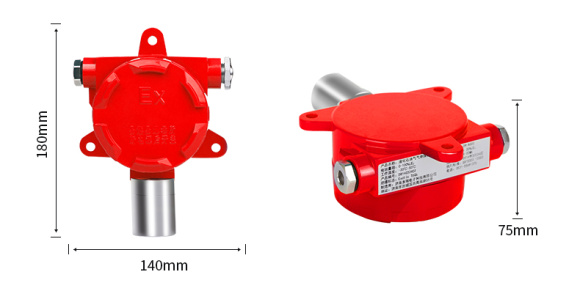

DR-600 (Acousto-optic model) Point Gas Detector 16

DR-600 (Acousto-optic Type) Point Gas Detector 17

DR-600 (Acousto-optic model) Point Gas Detector 18

DuoRui DR-600 (sound and light model) Point Gas DetectorSpecifications

LIST	VALUE
Range	0~100%LEL
Error of indication	±5%FS
Sampling method	diffusion
Sensors principle	Catalytic combustion
Response time	T90≤60s
Shell material	die casting aluminum
operating temperature	-40~70℃
service life	2-3 years (depending on the environment)
Cable Specifications	RVVP3×1.0mm2
Dimensions	18019095mm
Resolution	0.1%LEL、1%LEL
Response time	T90≤60s
Shell material	die casting aluminum
operating temperature	-40~70℃
Operating Time	24H online work
Electrical interface	M20 * 1.5 thread
Signal transmission distance	≥ 1000 meters
Output signal	4-20Mas or RS485
Explosion-proof sign	Ex d IIC T6Gb
Protection level	IP65
Metrology authentication	CMC
Working Power	2.5w
Power Supply	24VDC
Display	No display
Alarm mode	Sound and light alarm
Installation method	Fixing brackets, wall hangings, etc

DuoRui DR-600 (sound and light model) Point Gas Detector Packing list

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Does the DUORUI point gas detector meet the GB16808 standard?

[A]

The DR-600 point gas detector can be referred to
