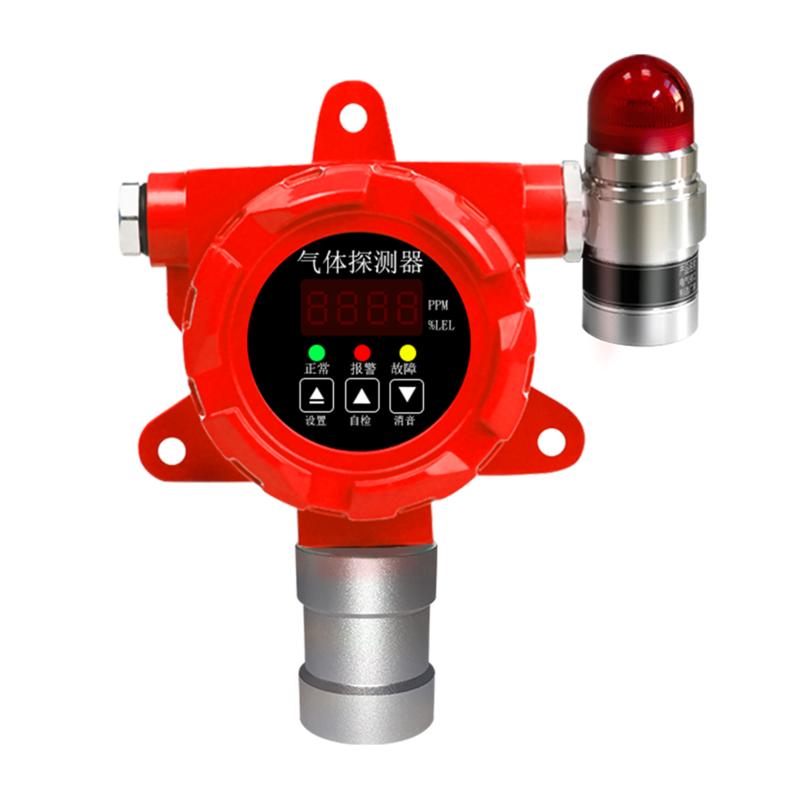

DUORUI DR-600 Digital Display Point Gas Detector, Combustible 0-100% LEL
DUORUI digital display point type Gas Detector DR-600 is used to detect combustible gas concentration, Measurement range 0-100% LEL, DR-600 combustible Gas Detector adopts catalytic combustion detection principle, error of indication is +/- 5% FS.
DuoRui
DR-600 (Digital Display)
-
HUIRUIPU HRP-T1000-O2 Oxygen Gas Detector (LCD without lamp)
$ 192.00 -
HONEYEAGLE HNAG1000-HCL Fixed Hydrogen Chloride Detector 0-50PPM
Login -
BOSEAN BH-90M-PH3 phosphating hydrogen Gas Detector
$ 239.00 -
Empaer AATL-CL2 (Pump Suction) Pathfinder Series Fixed Chlorine Detector
$ 789.00 -
GUOYUGRA GY/VGD-200-C2H6O-G (0-50ppm) ethanol Detector
$ 394.00
Introduction
DR-600 (Digital Display Model) is a point Gas Detector with diffusion sampling method and catalytic combustion detection principle, the Gas Detector has a range of 0-100%LEL and an indication error of ±5%FS.

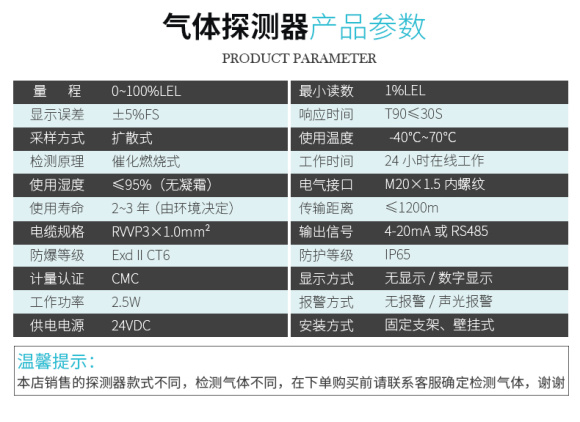

DuoRui DR-600 (Digital Display) Point Gas DetectorSpecifications
| LIST | VALUE |
|---|---|
| Range | 0~100%LEL |
| Error of indication | ±5%FS |
| Sampling method | diffusion |
| Sensors principle | Catalytic combustion |
| Response time | T90≤60s |
| Shell material | die casting aluminum |
| operating temperature | -40~70℃ |
| service life | 1-2 years (depending on the environment) |
| Cable Specifications | RVVP3×1.0mm2 |

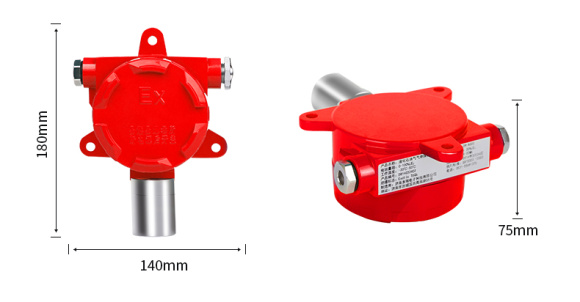

| Dimensions | 180*190*95mm |
| Resolution | 0.1%LEL、1%LEL |
| Response time | T90≤60s |
| Shell material | die casting aluminum |
| operating temperature | -40~70℃ |
| Operating Time | 24H online work |
| Electrical interface | M20 * 1.5 thread |
| Signal transmission distance | ≥ 1000 meters |
| Output signal | 4-20Mas or RS485 |
| Explosion-proof sign | Ex d IIC T6Gb |
| Protection level | IP65 |
| Metrology authentication | CMC |
| Working Power | 2.5w |
| Power Supply | 24VDC |
| Display | LED display |
| Alarm mode | No alarm |
| Installation method | Fixing brackets, wall hangings, etc |
DuoRui DR-600 (Digital Display) Point Gas Detector Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
